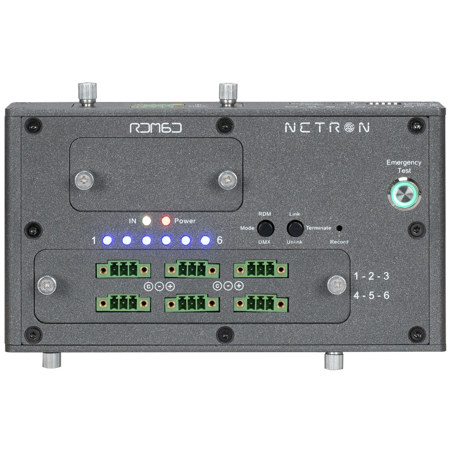

Elation Netron RDM6D DIN Rail DMX/RDM Splitter with Six Wire Terminal

SKU: ELNDR601 MFR: NDR601
Earn VIP Reward Points

Key Features

  • Enhance your lighting setup with this reliable Elation DMX splitter for robust signal management.
  • Simplify complex lighting rigs using the Netron RDM6D's versatile DIN rail mounting design.
  • Ensure seamless connectivity with multiple RJ45 and terminal block DMX connection options.
  • Easily manage your stage lighting with user-friendly DMX control and RDM capabilities.
  • Enjoy peace of mind with robust electrical protection & UL924 emergency lighting compliance.
  • Compact design integrates easily into any setup, offering flexible wall or DIN rail mounting.
See More Product Details
Special Order?Estimated to Ship: 09/14/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation RDM6D Specifications

  • Mounting

    DIN Rail
    Wall-mount

  • Connections

    Front:
    6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
    2-port DMX In / Thru connection plate (RJ45 or Terminal Block) or Cover Plate

    Top:
    2-port DMX In / Thru connection plate (RJ45 or Terminal Block) or Cover Plate
    DC In (2pin Terminal Block)
    USB-C (5V/2A)

    Bottom:
    6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
    Emergency Contact (3pin Terminal Block, Dry Contact or 12V)

  • Electrical

    DC 9-48V
    USB-C (5V/2A)

  • Approvals / Ratings

    cETLus / CE / IP20 / UL924

  • Dimensions (L x W x H)

    4.7 x 5.6 x 2.1" (116 x 143 x 52mm)

  • UPC Code

    810008264140

About Elation RDM6D

Before selecting a DMX/RDM splitter for your permanent installation, consider the Netron RDM6D DIN Rail DMX/RDM Splitter with Six Wire Terminal. This robust device is engineered for both DIN Rail and wall mount applications, offering unparalleled flexibility with its six wire terminal or RJ45 outputs. The Netron RDM6D is designed with rugged, opto-isolated outputs, making it the perfect choice for installations that demand a compact footprint and versatile wiring options.

The innovative connector configurations of the Netron RDM6D allow it to be tailored to your specific needs. It can be configured using RJ45, screw-terminals, or IDC (Insulation Displacement Connectors), all of which are included through interchangeable plates. These plates can be installed on the top, bottom, or front of the unit, providing installers with the flexibility to adapt to space constraints and personal preferences. Additionally, the device offers the option to switch between DIN Rail brackets and wall mount brackets, enhancing its adaptability for various installation environments.

Powering the Netron RDM6D is straightforward, as it supports a wide DC input range from 9-48V. This ensures compatibility with a variety of power sources, making it a versatile addition to any setup. Furthermore, the Netron RDM6D is UL924 compliant, featuring a dedicated emergency cue, wet or dry contact closure, and a prominent test button with integrated LED feedback. Users can record a custom cue or set all DMX channels to 100%, with the ability to customize the emergency off timeout and exclude individual channels from the emergency cue.

Choose the Netron RDM6D DIN Rail DMX/RDM Splitter for a reliable, flexible, and compliant solution to your DMX/RDM splitting needs.

Elation RDM6D Features

  • RJ45, screw terminal or IDC connectivity
  • Configurable Top, Bottom and Front ports
  • DMX, RDM support
  • POE or 9-48V DC power
  • Emergency Cue System with test button and contact closure
  • Powder-coated aluminum DIN Rail housing

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enhance your lighting setup with this reliable Elation DMX splitter for robust signal management.
  • Simplify complex lighting rigs using the Netron RDM6D's versatile DIN rail mounting design.
  • Ensure seamless connectivity with multiple RJ45 and terminal block DMX connection options.
  • Easily manage your stage lighting with user-friendly DMX control and RDM capabilities.
  • Enjoy peace of mind with robust electrical protection & UL924 emergency lighting compliance.
  • Compact design integrates easily into any setup, offering flexible wall or DIN rail mounting.

What's in the box:

  • Elation Netron RDM6D DIN Rail DMX/RDM Splitter with Six Wire Terminal
  • 2x DIN Rail Clamps
  • 2x Wall Mount Plates
  • 6-Port RJ45 Connection Plate
  • 6-Port Terminal Block Connection Plate
  • 2-Port RJ45 Connection Plate
  • 2-Port Terminal Block Connection Plate
  • 8x Screw Terminal with Security Screws
  • 8x IDC Connector with Security Screws
  • Elation 2 Year Limited Warranty
