Elation Netron EN6D 6U DIN Rail/sACN/Art-Net Wall Mount Ethernet DMX Gateway

SKU: ELNDR613 MFR: NDR613
Earn VIP Reward Points

Key Features

  • Seamlessly integrate your lighting system with the Elation Netron EN6D DMX gateway.
  • Achieve superior sound quality with Art-Net protocol for professional lighting control.
  • Use the intuitive interface of this DMX interface for easy setup and operation.
  • Enjoy flexible connectivity with RJ45 and terminal block options on this lighting controller.
  • Benefit from robust durability with its DIN rail and wall-mount design for any setup.
  • Get great value for money with this reliable Elation lighting solution, offering top brand reputation.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation EN6D Specifications

  • Mounting

    DIN Rail
    Wall-mount

  • Connections

    Front:
    Full color 1.3" OLED display
    Encoder w. Push to Select / Exit Button
    6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate
    (2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate

    Top:
    (2) RJ45 Gigabit Ethernet (1x POE) or Cover Plate
    DC In (2pin Terminal Block)
    USB-C (5V/2A)
    Bottom:
    6-port DMX connection plate (RJ45 or Terminal Block) or Cover Plate

  • Connections (Contd.)

    Emergency Contact (3pin Terminal Block, Dry Contact or 12V)

  • Electrical

    POE 802.3af
    DC 9-48V
    USB-C (5V/2A)

  • Approvals / Ratings

    cETLus / CE / IP20 / UL924

  • Dimensions (L x W x H)

    4.7 x 5.6 x 2.1" (116 x 143 x 52mm)

  • UPC Code

    810008264157

About Elation EN6D

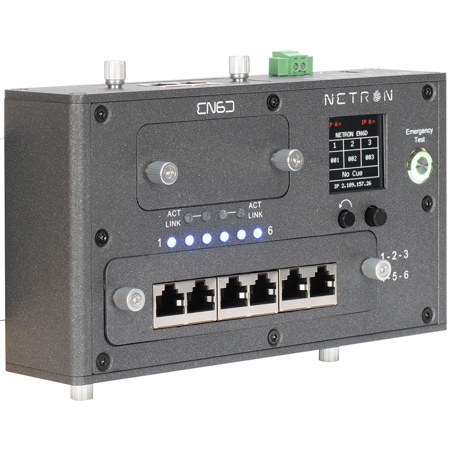

Take your lighting control to the next level with the Netron EN6D 6U DIN Rail/sACN/Art-Net Wall Mount Ethernet DMX Gateway. This robust and versatile device serves as an Ethernet to DMX gateway, featuring six RDM-compatible outputs that can be configured with either wire terminals or RJ45 connectors. Designed for seamless integration into permanent installations, the EN6D offers a compact design and flexible wiring options, making it an ideal choice for a variety of settings.

The Netron EN6D stands out with its innovative connector configurations, allowing for customization with RJ45, screw-terminals, or IDC (Insulation Displacement Connectors). These options are easily interchangeable through exchangeable plates, which can be mounted on the top, bottom, or front of the unit, catering to installer preferences and space constraints. For added versatility, the device can be mounted using either DIN Rail brackets or wall mount brackets, providing flexibility in installation.

Powering the Netron EN6D is straightforward, with options for Power over Ethernet (PoE) or a wide-ranging DC input from 9-48V. This gateway is UL924 compliant, featuring a dedicated emergency cue with wet or dry contact closure and a prominent test button equipped with integrated LED feedback. Users can record a custom cue or set all DMX channels to 100%, with the ability to customize the emergency off timeout and exclude individual channels from the emergency cue.

With its advanced merge and routing features, along with a range of integrated presets, the Netron EN6D is engineered to meet the demands of complex lighting systems. Whether you are looking to enhance your current setup or install a new system, the Netron EN6D provides the reliability and flexibility needed for professional-grade lighting control.

Elation EN6D Features

  • RJ45, screw terminal or IDC connectivity
  • Configurable Top, Bottom and Front ports
  • RDM, Artnet and sACN support
  • Factory and user presets for plug and play setup
  • POE or 9-48V DC power
  • 1.3" OLED Display with rotary knob
  • 99 Internal cues with fade and delay time
  • Emergency Cue System with test button and contact closure
  • Remote configuration via internal webpage
  • Powder-coated aluminum DIN Rail housing
  • Unlocks ONYX NOVA 4-Universe License

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Seamlessly integrate your lighting system with the Elation Netron EN6D DMX gateway.
  • Achieve superior sound quality with Art-Net protocol for professional lighting control.
  • Use the intuitive interface of this DMX interface for easy setup and operation.
  • Enjoy flexible connectivity with RJ45 and terminal block options on this lighting controller.
  • Benefit from robust durability with its DIN rail and wall-mount design for any setup.
  • Get great value for money with this reliable Elation lighting solution, offering top brand reputation.

What's in the box:

  • Elation Netron EN6D 6U DIN Rail/sACN/Art-Net Wall Mount Ethernet DMX Gateway
  • 2x DIN Rail Clamps
  • 2x Wall Mount Plates
  • 6-Port RJ45 Connection Plate
  • 6-Port Terminal Block Connection Plate
  • 6x Screw Terminal with Security Screws
  • 6x IDC Connector with Security Screws
  • Elation 2 Year Limited Warranty
