Elation NX DMX EDU Specifications

  • Connections

    2x DMX / RDM Universe In/Out: 5pin locking XLR
    USB In: USB 2.0 B

  • Requirements

    Windows 10
    Intel Core i3 processor 6th Generation+
    8 GB RAM
    SSD Drive
    40 GB available disk space
    Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
    USB 2.0 port for Onyx Key and optional USB to DMX devices
    10/100 Ethernet port for Art-Net DMX output
    100/1000 Ethernet port for X-Net, Remote operation and sACN
    NX DMX is also compatible with Elation LightJockey 2 Software

  • Electrical

    5V over USB
    100-240V nominal, 50/60 Hz
    Maximum current: 300 mA

  • Dimensions (L x W x H)

    3.7 x 3.3 x 1.7" (92 x 82 x 41mm)

  • Weight

    8.6 oz (245g)

  • UPC Code

    810008262139

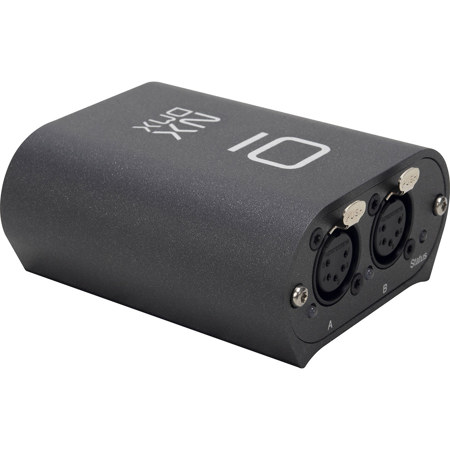

About Elation NX DMX EDU

For those in the educational sector seeking advanced lighting control solutions, the NX DMX EDU Box Control System by Obsidian Control Systems is an ideal choice. This educational version of the NX DMX node is exclusively available through Elation's US dealer network, offered at a special rate for qualified applicants. To qualify, individuals must provide proof of enrollment or employment at an accredited educational institution.

As a key component of the cutting-edge ONYX platform, the NX DMX EDU Box Control System delivers seamless DMX In and Outputs along with RDM communication capabilities. This plug-and-play device requires no additional drivers or configuration, ensuring effortless integration with the ONYX system. Designed for versatility, the NX DMX is compatible with any PC and can also be used with any ONYX console, providing a cost-effective solution to expand your setup with two additional DMX ports.

Whether you're a student or educator in the field of lighting design, the NX DMX EDU Box Control System offers a practical and efficient way to enhance your lighting control capabilities, making it an essential tool for educational environments.

Elation NX DMX EDU Features

  • Plug and Play 2 Port DMX Node for ONYX
  • USB powered DMX In/Out and RDM support
  • Expand any ONYX console or PC system
  • Rugged design

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • educational version of NX DMX node for students and educators
  • seamless integration with Onyx platform for enhanced lighting control
  • plug-and-play functionality Requires no additional drivers or configuration
  • Compatible with any PC and Onyx console for versatile use
  • provides instant access to DMX in and outputs with RDM communication
  • Expands lighting setups with Two additional DMX ports for increased flexibility

What's in the box:

  • Elation NX DMX EDU Box Control System
  • Elation 2 Year Limited Warranty
