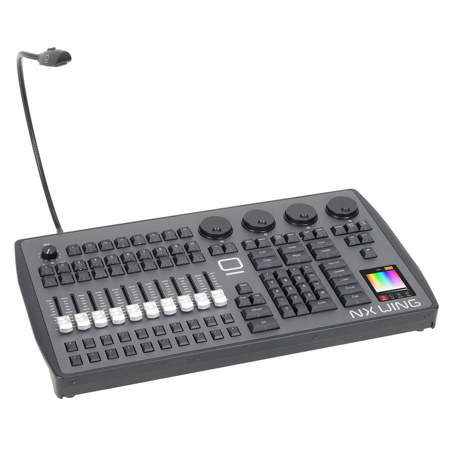

Elation NX WING 64-Universe USB Control Surface for ONYX OS Consoles

SKU: ELNXW884 MFR: NXW884
Earn VIP Reward Points

Key Features

  • Command precise lighting with the Elation NX WING's 64 universes for seamless shows.
  • Elevate your light shows using this lighting controller with 10 smooth 60mm playback faders.
  • Customize your DJ lighting with the 3.5" RGB touchscreen for easy parameter adjustments.
  • Connect to various devices using MIDI, SMPTE, and DMX ports on this versatile surface.
  • Enjoy intuitive control with the grand master fader and dedicated go/pause buttons.
  • This lighting console is built for durability, ensuring reliable performance at every event.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation NX WING Specifications

  • Surface

    10x 60mm playback faders, each with 4x function-assignable buttons
    8x customizable multi-function keys
    Playback Select button
    Master Go section with Go, Pause, Snap and Release
    4x digital rotary encoders with push function and status LED for fixture parameter control

  • Surface (Contd.)

    3.5" RGB touchscreen for parameter groups, effect parameters, fanning and global timings
    Grand master rotary fader and button
    Blind/Highlight/Last/Next buttons
    Full numerical keypad and command keys

  • Connections

    4x DMX / RDM Universe In/Out: 5pin locking XLR
    MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN
    SMPTE Timecode In/Out: 3pin XLR
    12 VDC power supply input: 4pin XLR
    Desk lamp: XLR 12V
    USB In: USB 2.0 B

  • Requirements

    Windows 10
    Intel Core i3 processor 6th Generation+
    8GB RAM
    SSD Drive
    40GB available disk space
    Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
    USB 2.0 port
    10/100 Ethernet port for Art-Net DMX output
    100/1000 Ethernet port for X-Net, Remote operation and sACN

  • Electrical

    AC mains power to 12VDC external PSU (included):
    100-240V nominal, 50/60 Hz
    Maximum current: 3A
    12VDC output: 11A, 132W max

  • Dimensions (L x W x H)

    11.9 x 21.3 x 3.9" (300 x 540 x 99mm)

  • Weight

    10.2 lbs (4.6kg)

  • UPC Code

    837874008715

About Elation NX WING

With the NX WING 64-Universe USB Control Surface, elevate your lighting control experience on the Obsidian Control Systems ONYX platform. This advanced USB control surface is meticulously crafted to complement the ONYX system, offering a seamless integration that mirrors the robust design and layout of the NX 2 console. The NX Wing stands out with its durable construction and identical footprint, ensuring a familiar and intuitive user experience for all ONYX operators.

Designed for ultimate convenience, the NX Wing connects effortlessly to any PC system via USB, transforming it into a powerful lighting control hub without any need for additional setup or installation. Simply connect the NX Wing to your PC equipped with ONYX, and you're ready to take command of your lighting environment instantly.

The NX Wing is engineered to provide extensive connectivity options, featuring 4 DMX ports, MIDI, and Timecode ports, which are essential for professional lighting control applications. When linked with ONYX on a PC, it unlocks an impressive 64 universes of control, offering unparalleled flexibility and precision in managing complex lighting setups. Whether you're in a live performance setting or a studio environment, the NX Wing ensures that you have the tools you need for a responsive and professional lighting control experience.

Elation NX WING Features

  • Fully featured control surface, portable and lightweight
  • 10 Playbacks, Encoders, Keypad and internal 3.5" touchscreen
  • DMX, Timecode and Midi Connectivity
  • ONYX Premier 64 Universe License
  • Plug and Play USB device for any PC with ONYX

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Command precise lighting with the Elation NX WING's 64 universes for seamless shows.
  • Elevate your light shows using this lighting controller with 10 smooth 60mm playback faders.
  • Customize your DJ lighting with the 3.5" RGB touchscreen for easy parameter adjustments.
  • Connect to various devices using MIDI, SMPTE, and DMX ports on this versatile surface.
  • Enjoy intuitive control with the grand master fader and dedicated go/pause buttons.
  • This lighting console is built for durability, ensuring reliable performance at every event.

What's in the box:

  • Elation NX WING 64-Universe USB Control Surface
  • 13" RGB LED Desk Lamp (Angular XLR Connector)
  • Dust Cover
  • USB Cable
  • 12V 11A External PSU
  • 5' 3-pin IEC Power Cable
  • Elation 2 Year Limited Warranty
