Elation PIXEL DRIVER 170IP IP65 DMX512 LED Driver for PIXEL TAPE 16IP/40IP and WASH 40IP

SKU: ELPIX633 MFR: PIX633
Earn VIP Reward Points

Key Features

  • Control up to 8 PIXEL WASH 40IP units with this LED driver in Hi Power Mode Off.
  • Use the 4-button OLED display for easy control of your DMX universe (170 pixels).
  • This DMX512 LED driver includes a UC-IR24EL remote for convenient adjustments.
  • The PIXEL DRIVER 170IP supports LED tape or Pixel Wash 40IP for versatile lighting.
  • Connect easily with 5-pin XLR connectors for DMX input and output on this driver.
  • Requires a separate 12-24VDC power supply for up to 200W max power consumption.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$24.99

2 Year

$34.99

3 Year

$49.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PIXEL DRIVER 170IP Specifications

  • Control / Connections

    4-Button OLED Display
    1 DMX Universe (170 Pixels)
    LED Control: LED Tape or Pixel Wash 40IP
    UC-IR24EL Remote (Included)
    DMX Input via 5pin XLR Connector
    DMX Output via 5pin XLR Connector
    LED Out via 4pin XLR Connector

  • Hi Power Mode Off

    Control up to 8pcs Pixel Wash 40IP with the driver alone
    Control up to 40pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200

  • Hi Power Mode On

    Control up to 5pcs Pixel Wash 40IP with the driver alone
    Control up to 25pcs Pixel Wash 40IP with the use of 4pcs Pixel Amp 200

  • Electrical

    DC Input 12-24VDC, 8.4A (Requires separate power supply)
    200W Max Power Consumption

  • Dimensions (L x W x H)

    No Omega Bracket: 3.68 x 7.38 x 3" (9.35 x 18.75 x 7.62cm)
    With Omega Bracket: 3.68 x 7.38 x 4.4" (93.5 x 187.5 x 111mm)

  • Weight

    2.64 lbs (1.2kg)

  • UPC Code

    810008263686

About Elation PIXEL DRIVER 170IP

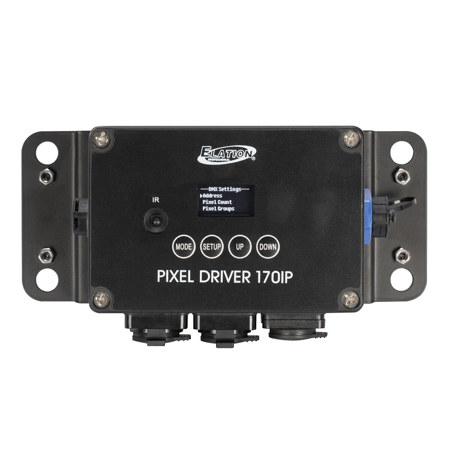

The Elation PIXEL DRIVER 170IP IP65 DMX512 LED Driver is a high-performance, professional-grade driver meticulously engineered for seamless compatibility with Elation PIXEL TAPE 16IP, PIXEL TAPE 40IP, and PIXEL WASH 40IP. Designed to withstand challenging environments, this IP65-rated driver ensures reliable operation in both indoor and outdoor settings. It offers versatile and straightforward control options, featuring a user-friendly 4-button OLED display for intuitive navigation and settings adjustment. Additionally, the included EL IR Remote enhances convenience by allowing wireless control.

The PIXEL DRIVER 170IP supports one full universe of DMX control, accommodating up to 170 pixels, which is ideal for complex lighting setups requiring precise pixel management. It incorporates advanced pixel grouping capabilities, enabling users to create dynamic lighting effects with ease. Connectivity is robust, with DMX IN and OUT ports facilitating seamless integration into existing lighting systems. The driver is equipped with a 4-pin XLR connector for LED output, ensuring secure and efficient signal transmission, and a 2-pin connector for 12-24VDC power input, providing flexible power options.

Whether for architectural lighting, stage productions, or creative installations, the Elation PIXEL DRIVER 170IP delivers exceptional performance and adaptability, making it an indispensable tool for lighting professionals seeking reliable and versatile LED control solutions.

Elation PIXEL DRIVER 170IP Features

  • 4-button LED control display
  • DMX IN and OUT 5-pin XLR connections
  • 4 pin XLR connector for LED output
  • 2 pin connector for 12-24VDC power IN

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Control up to 8 PIXEL WASH 40IP units with this LED driver in Hi Power Mode Off.
  • Use the 4-button OLED display for easy control of your DMX universe (170 pixels).
  • This DMX512 LED driver includes a UC-IR24EL remote for convenient adjustments.
  • The PIXEL DRIVER 170IP supports LED tape or Pixel Wash 40IP for versatile lighting.
  • Connect easily with 5-pin XLR connectors for DMX input and output on this driver.
  • Requires a separate 12-24VDC power supply for up to 200W max power consumption.

What's in the box:

  • Elation PIXEL DRIVER 170IP IP65 DMX512 LED Driver
  • EL-IR Remote
  • IR Receiver Cable
  • 2-Pin Power Cable
  • Elation 2 Year Limited Warranty
