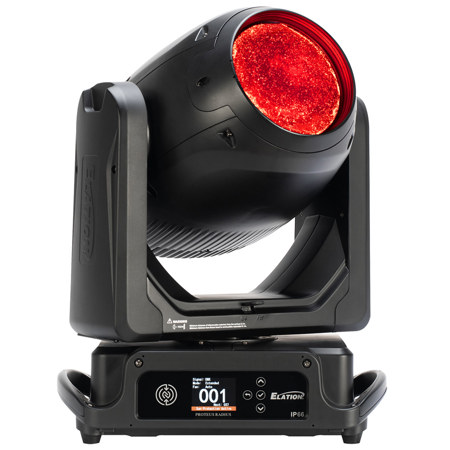

Elation PROTEUS RADIUS 100W Solid State Phosphor-Converted Beam FX Fixture

SKU: ELPRD013 MFR: PRD013
Earn VIP Reward Points

Key Features

  • Create stunning light shows with this 100W Elation beam FX fixture, perfect for DJs.
  • Achieve vibrant colors with the full CMY color mixing system for dynamic DJ lighting.
  • Utilize the PROTEUS RADIUS's gobos for unique, rotating light patterns at any event.
  • Enjoy precise control with DMX, RDM, Art-Net, and sACN protocol support for lighting.
  • Benefit from the robust, weatherproof design, ideal for any outdoor DJ lighting setup.
  • Experience long-lasting performance with a 10,000-hour rated solid-state light engine.
See More Product Details
Special Order?Estimated to Ship: 09/07/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PROTEUS RADIUS Specifications

  • Source

    100W Solid State Phosphor-Converted (SSPC) Light Engine
    6000K, CRI 70
    10,000 Hour Lamp Life

  • Photometrics

    2700 Lumen Total Fixture Output
    Beam Angle 0.9 Degree

  • Effects

    Dual Frost
    4 Prisms on Dual Planes
    CMY Color, Gobo, Prism Macros
    Motorized Focus
    Digital Shutter and Strobe

  • Color

    Full CMY Color Mixing System
    25 Position Color Wheel

  • Gobos

    2x Gobo Wheels
    13x Interchangeable-Rotating / Indexing Metal Gobos
    24x Static-Stamped Metal Gobos

  • Controls / Connections

    2 DMX Channel Modes
    (6) Button Touch Panel
    Full Color 180 Degree Reversible LCD Menu Display
    DMX, RDM, Art-Net and sACN Protocol Support
    5pin DMX In/Out
    RJ45 Ethernet In/Out
    IP65 Locking Power Cable In

  • Electrical / Thermal

    AC 100-240V - 50/60Hz
    300W Max Power Consumption
    -20 Degree C to 45 Degree C (-4 Degree F to 113 Degree F)

  • Dimensions (L x W x H)

    15.6 x 13.5 x 20" (395 x 343 x 509mm)

  • Weight

    41.9 lbs (19kg)

  • UPC Code

    810008264317

About Elation PROTEUS RADIUS

Bring your lighting designs to life with the PROTEUS RADIUS 100W Solid State Phosphor-Converted Beam FX Fixture, a powerhouse in compact form. Engineered with an IP66 rating, this high-intensity beam fixture is built to withstand the elements, making it ideal for both indoor and outdoor applications. At its core is a cutting-edge 100W Solid State Phosphor-Converted (SSPC) light engine, delivering narrow, intense beams that maintain remarkable power over long distances.

Experience unparalleled versatility with its incredibly fast 360-degree movement on both axes, enabling dynamic and impactful beam animations that captivate any audience. The PROTEUS RADIUS is equipped with a sophisticated CMY color mixing system, allowing for a seamless blend of colors to create vibrant and customized lighting effects. Enhance your creative possibilities with an array of gobos, prisms, and frost options, offering designers the tools to craft an endless variety of stunning aerial effects.

Whether you're illuminating a concert, theatrical production, or architectural landmark, the PROTEUS RADIUS ensures your lighting setup is both powerful and precise, making it an essential addition to any professional lighting toolkit.

Elation PROTEUS RADIUS Features

  • 100W Solid State Phosphor-Converted (SSPC) Light Engine
  • Compact and lightweight IP66 housing
  • Ultra Intense 0.9 Degree Beam
  • Endless High-Speed 360 Pan and Tilt Movements
  • CMY Color Mixing CMY
  • FX Package with rotating, fixed gobo, 4 prisms and dual frost
  • NFC Support
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create stunning light shows with this 100W Elation beam FX fixture, perfect for DJs.
  • Achieve vibrant colors with the full CMY color mixing system for dynamic DJ lighting.
  • Utilize the PROTEUS RADIUS's gobos for unique, rotating light patterns at any event.
  • Enjoy precise control with DMX, RDM, Art-Net, and sACN protocol support for lighting.
  • Benefit from the robust, weatherproof design, ideal for any outdoor DJ lighting setup.
  • Experience long-lasting performance with a 10,000-hour rated solid-state light engine.

What's in the box:

  • Elation PROTEUS RADIUS 100W Solid State Phosphor-Converted Beam FX Fixture
  • FIL Foam Insert
  • Power Supply
  • Elation 2 Year Limited Warranty
