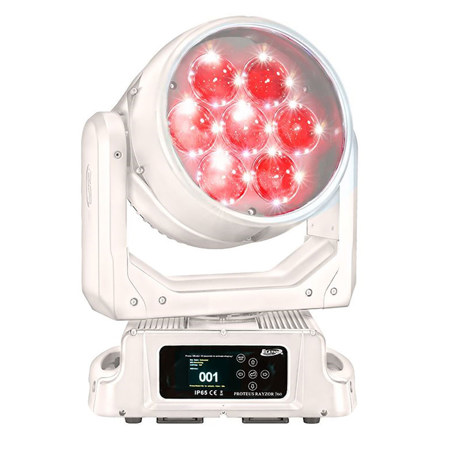

Elation PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head, White Marine Grade

SKU: ELPRR176 MFR: PRR176
Earn VIP Reward Points

Key Features

  • Unleash vibrant washes with the Elation RAYZOR 760's seven 60W RGBW LEDs for stunning light shows.
  • Create dynamic effects using the moving head's continuous 360° pan and tilt movement capabilities.
  • Enjoy precise color mixing with linear color temperature presets (2700-8000K) on this LED fixture.
  • Control your lighting easily via DMX, Art-Net, or sACN with versatile connectivity options for DJs.
  • Benefit from a durable, IP65-rated wash light, perfect for outdoor events and marine environments.
  • Customize your stage presence with the RAYZOR 760's motorized zoom, offering beam angles from 5° to 77°.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PROTEUS RAYZOR 760 Specifications

  • Color

    White Marine Grade

  • Source

    (7) 60W Osram RGBW LEDs
    (28) 2W White SparkLED
    50,000 Hour Average LED Life

  • Photometrics

    7,200 Total Lumen Output
    CRI 80
    Zoom Range 5 Degree - 77 Degree
    Beam Angle 5.4 Degree - 56.4 Degree
    Field Angle 8.1 Degree - 74 Degree

  • Effects

    Motorized Zoom
    Linear Color Temperature Presets (2700-8000K)
    RGBW Color Mixing and Pixel Control
    White SparkLED Lens Effect
    Color Presets and Macros
    Electronic Strobe and Variable Dimming Curves
    16-bit Dimming
    Pan Angle: 540 Degree /630 Degree
    Tilt Angle: 270 Degree /360 Degree

  • Control / Connections

    3 DMX Channel Modes (25 / 52 / 80 channels)
    360 Degree Continuous Pan and Tilt Movement
    DMX Adjustable Refresh Rate (900 -25000 Hz)
    (6) Button Touch Panel
    Full Color 180 Degree Reversible LCD Menu Display
    RDM Support
    IP65 5pin XLR DMX In/Out
    IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
    IP65 Locking Power Cable In
    With Wired Digital Communication Network

  • Electrical

    AC 100-240V 50/60Hz
    700W Max Power Consumption
    BTU/hr (+/- 10%) 2387

  • Thermal

    Ambient Temperature Range: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

  • Dimensions (L x W x H)

    14.31 x 10.24 x 19.43" (363.3 x 259.97 x 493.44mm)
    Center-to-Center: 16.6" (421.5mm)

  • Weight

    41 lbs. (18.6kg)

  • UPC Code

    810008262061

About Elation PROTEUS RAYZOR 760

Because the Proteus Rayzor 760 is engineered for versatility and power, it stands out as an exceptional IP65-rated wash effects fixture, perfect for both indoor and outdoor applications. This robust lighting solution features Elation's innovative SparkLED system, which introduces a new dimension of creativity with its unique LED pixel effects. The fixture's fast continuous pan and tilt motion, combined with a wide zoom range from 5 to 77 degrees, ensures dynamic and precise lighting control. With an impressive output of over 7,200 lumens, the Proteus Rayzor 760 delivers intense, well-defined mid-air beams and expansive, even wash coverage, making it ideal for any lighting scenario, even in challenging weather conditions.

Driven by seven independently controlled 60W RGBW LEDs, this fixture offers a total power of 420W, ensuring a powerful and vibrant beam that captivates any audience. The oversized front lenses are enhanced by the exclusive patent-pending SparkLEDs technology, which consists of 28 individual white LEDs strategically placed inside the lens. This innovative design creates an additional layer of visual interest, allowing lighting designers to craft unique and engaging stage effects. The SparkLEDs can be controlled via a lighting console or through a variety of internal FX patterns, offering flexibility and creativity in design.

In addition to its powerful wash capabilities and enhanced visual effects, the Proteus Rayzor 760 features precise continuous pan and tilt rotation. This allows for variable speed movement, from slow to extremely fast, enabling the creation of dynamic and captivating lighting effects. By combining the potent LED output with the SparkLEDs and utilizing the 360-degree movement, designers can produce endless, unique designs ranging from striking mid-air beams to wide stage washes, as well as subtle effects that enhance mood or complement TV camera work. The Proteus Rayzor 760 is a versatile and innovative lighting fixture that elevates any production with its advanced features and creative potential.

Elation PROTEUS RAYZOR 760 Features

  • IP65 Rated LED Wash Effects Fixture
  • 7x 60W OSRAM RGBW LED with Pixel Control
  • 28x 2W SparkLED Effect with Pixel Control (patent pending)
  • Extreme Zoom - 5 Degree for mid-air beam to 77 Degree for even washes
  • Fast and precise 360 Degree continuous Pan and Tilt rotation
  • Beam FX and Smooth Wash fixture in a compact IP65 certified housing

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Unleash vibrant washes with the Elation RAYZOR 760's seven 60W RGBW LEDs for stunning light shows.
  • Create dynamic effects using the moving head's continuous 360° pan and tilt movement capabilities.
  • Enjoy precise color mixing with linear color temperature presets (2700-8000K) on this LED fixture.
  • Control your lighting easily via DMX, Art-Net, or sACN with versatile connectivity options for DJs.
  • Benefit from a durable, IP65-rated wash light, perfect for outdoor events and marine environments.
  • Customize your stage presence with the RAYZOR 760's motorized zoom, offering beam angles from 5° to 77°.

What's in the box:

  • Elation PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head (White Marine Grade)
  • 2x Omega Brackets
  • IP65 Rated 5-pin DMX Cable
  • IP65 Rated RJ45 Data Cable
  • IP65 Locking Power Cable
  • Elation 2 Year Limited Warranty
