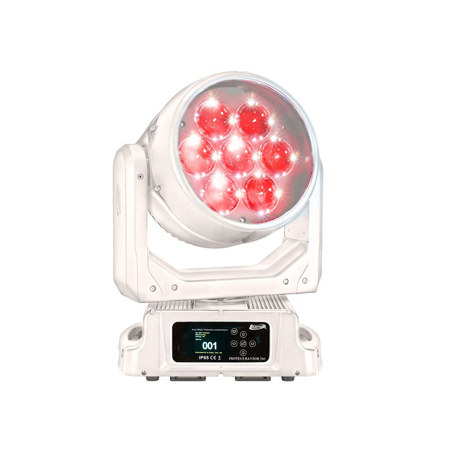

Elation PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head with Hardwired Tails, White Marine Grade

SKU: ELPRR201 MFR: PRR201
Earn VIP Reward Points

Key Features

  • Unleash vibrant washes with the PROTEUS RAYZOR 760's powerful RGBW LED moving head.
  • Create stunning light shows with its wide 5-77° zoom range, perfect for any event lighting.
  • Enjoy seamless control with multiple DMX modes and Art-Net support for advanced light design.
  • The IP65 rating ensures reliability; this moving head thrives in any environment, rain or shine.
  • Customize your stage lighting with linear color temperature presets from 2700K to 8000K.
  • Experience continuous 360° pan and tilt for dynamic effects with this innovative wash light.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PROTEUS RAYZOR 760 Specifications

  • Color

    White Marine Grade

  • Source

    (7) 60W Osram RGBW LEDs
    (28) 2W White SparkLED
    50,000 Hour Average LED Life

  • Photometrics

    7,200 Total Lumen Output
    CRI 80
    Zoom Range 5 Degree - 77 Degree
    Beam Angle 5.4 Degree - 56.4 Degree
    Field Angle 8.1 Degree - 74 Degree

  • Effects

    Motorized Zoom
    Linear Color Temperature Presets (2700-8000K)
    RGBW Color Mixing and Pixel Control
    White SparkLED Lens Effect
    Color Presets and Macros
    Electronic Strobe and Variable Dimming Curves
    16-bit Dimming
    Pan Angle: 540 Degree /630 Degree
    Tilt Angle: 270 Degree /360 Degree

  • Control / Connections

    3 DMX Channel Modes (25 / 52 / 80 channels)
    360 Degree Continuous Pan and Tilt Movement
    DMX Adjustable Refresh Rate (900 -25000 Hz)
    (6) Button Touch Panel
    Full Color 180 Degree Reversible LCD Menu Display
    RDM Support
    IP65 5pin XLR DMX In/Out
    IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
    IP65 Locking Power Cable In
    With Wired Digital Communication Network

  • Electrical

    AC 100-240V 50/60Hz
    700W Max Power Consumption
    BTU/hr (+/- 10%) 2387

  • Thermal

    Ambient Temperature Range: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

  • Dimensions (L x W x H)

    14.31 x 10.24 x 19.43" (363.3 x 259.97 x 493.44mm)
    Center-to-Center: 16.6" (421.5mm)

  • Weight

    41 lbs. (18.6kg)

  • UPC Code

    837874009453

About Elation PROTEUS RAYZOR 760

With the Proteus Rayzor 760, experience a compact yet immensely powerful IP65-rated wash effects fixture, perfect for both indoor and outdoor applications. This innovative lighting solution features Elation's unique SparkLED system and offers rapid, continuous pan and tilt motion, ensuring dynamic and versatile lighting effects. Its impressive zoom range, spanning from 5 to 77 degrees, delivers intense, well-defined mid-air beams and exceptionally wide, even wash coverage, generating over 7,200 lumens of output. This makes it an ideal choice for any setting, even in challenging outdoor environments.

The Proteus Rayzor 760 is powered by seven independently controlled 60W RGBW LEDs, providing a total power output of 420W. This ensures a striking beam presence on any stage. The fixture's oversized front lenses are enhanced by the exclusive, patent-pending SparkLEDs technology, which incorporates 28 individual white LEDs strategically placed within the lens. This creates a unique, additional layer of creativity, offering lighting designers a new and innovative way to captivate audiences with stunning visual effects.

The SparkLEDs can be controlled via a lighting console or through a variety of internal FX patterns, allowing for endless creative possibilities. The Proteus Rayzor 760 also boasts precise continuous pan and tilt rotation, offering variable speeds from slow to extremely fast, enabling designers to craft unique and engaging designs. Whether you're aiming for dramatic mid-air beams, expansive stage washes, or subtle effects for mood and television camera lenses, the Proteus Rayzor 760's combination of powerful LED output, SparkLEDs, and 360-degree movement provides unparalleled versatility and impact.

Elation PROTEUS RAYZOR 760 Features

  • IP65 Rated LED Wash Effects Fixture
  • 7x 60W OSRAM RGBW LED with Pixel Control
  • 28x 2W SparkLED Effect with Pixel Control (patent pending)
  • Extreme Zoom - 5 Degree for mid-air beam to 77 Degree for even washes
  • Fast and precise 360 Degree continuous Pan and Tilt rotation
  • Beam FX and Smooth Wash fixture in a compact IP65 certified housing

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Unleash vibrant washes with the PROTEUS RAYZOR 760's powerful RGBW LED moving head.
  • Create stunning light shows with its wide 5-77° zoom range, perfect for any event lighting.
  • Enjoy seamless control with multiple DMX modes and Art-Net support for advanced light design.
  • The IP65 rating ensures reliability; this moving head thrives in any environment, rain or shine.
  • Customize your stage lighting with linear color temperature presets from 2700K to 8000K.
  • Experience continuous 360° pan and tilt for dynamic effects with this innovative wash light.

What's in the box:

  • Elation PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head (White Marine Grade)
  • 2x Omega Brackets
  • IP65 Rated 5-pin DMX Cable
  • IP65 Rated RJ45 Data Cable
  • IP65 Locking Power Cable
  • Elation 2 Year Limited Warranty
