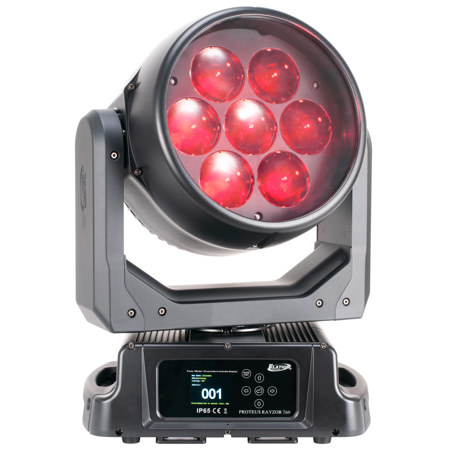

Elation PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head, Black

SKU: ELPRR760 MFR: PRR760
Earn VIP Reward Points

Key Features

  • Create stunning light shows with the PROTEUS RAYZOR 760's vibrant RGBW color mixing.
  • Achieve unique effects using the moving head fixture's continuous 360° pan and tilt.
  • The 7,200 lumen output ensures powerful, bright washes for any stage or event lighting.
  • Enjoy precise control with multiple DMX channel modes for customized lighting designs.
  • This durable, IP65-rated wash light is perfect for outdoor events and installations.
  • Easily adjust settings via the full-color LCD display for quick lighting adjustments.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PROTEUS RAYZOR 760 Specifications

  • Color

    Black

  • Source

    (7) 60W Osram RGBW LEDs
    (28) 2W White SparkLED
    50,000 Hour Average LED Life

  • Photometrics

    7,200 Total Lumen Output
    CRI 80
    Zoom Range 5 Degree - 77 Degree
    Beam Angle 5.4 Degree - 56.4 Degree
    Field Angle 8.1 Degree - 74 Degree

  • Effects

    Motorized Zoom
    Linear Color Temperature Presets (2700-8000K)
    RGBW Color Mixing and Pixel Control
    White SparkLED Lens Effect
    Color Presets and Macros
    Electronic Strobe and Variable Dimming Curves
    16-bit Dimming
    Pan Angle: 540 Degree /630 Degree
    Tilt Angle: 270 Degree /360 Degree

  • Control / Connections

    3 DMX Channel Modes (25 / 52 / 80 channels)
    360 Degree Continuous Pan and Tilt Movement
    DMX Adjustable Refresh Rate (900 -25000 Hz)
    (6) Button Touch Panel
    Full Color 180 Degree Reversible LCD Menu Display
    RDM Support
    IP65 5pin XLR DMX In/Out
    IP65 RJ45 Ethernet In/Out (Art-Net, sACN)
    IP65 Locking Power Cable In
    With Wired Digital Communication Network

  • Electrical

    AC 100-240V 50/60Hz
    700W Max Power Consumption
    BTU/hr (+/- 10%) 2387

  • Thermal

    Ambient Temperature Range: -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

  • Dimensions (L x W x H)

    14.31 x 10.24 x 19.43" (363.3 x 259.97 x 493.44mm)
    Center-to-Center: 16.6" (421.5mm)

  • Weight

    41 lbs. (18.6kg)

  • UPC Code

    837874008951

About Elation PROTEUS RAYZOR 760

An exceptional lighting solution for both indoor and outdoor events, the PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head in Black is a compact yet immensely powerful fixture. Engineered with an IP65 rating, this wash effects fixture is designed to withstand adverse weather conditions, making it ideal for outdoor applications. It features Elation's innovative SparkLED system, which introduces a groundbreaking LED pixel effect through dedicated high-brightness pixels embedded within its large front lenses. This unique feature adds an extra layer of creativity and visual interest to any lighting design.

The PROTEUS RAYZOR 760 is equipped with seven independently controlled 60W RGBW LEDs, delivering an impressive output of over 7,200 lumens with a total power consumption of 420W. This ensures that the fixture produces intense and well-defined mid-air beams, as well as exceptionally wide and even wash coverage. Its wide zoom range, spanning from 5 to 77 degrees, allows for versatile lighting effects, from narrow beams to broad washes, catering to a variety of stage and event requirements.

A standout feature of this moving head is its oversized front lenses, which are enhanced by the exclusive patent-pending SparkLEDs technology. This system comprises 28 individual white LEDs strategically placed within the lens, offering a novel approach to stage lighting with internal lens illumination for added depth and visual impact. These SparkLEDs can be controlled via a lighting console or through a multitude of internal FX patterns, providing designers with endless possibilities for creating captivating lighting displays.

In addition to its powerful wash capabilities and innovative effects, the PROTEUS RAYZOR 760 boasts precise continuous pan and tilt rotation. This feature allows for variable speed adjustments, from slow to extremely fast movements, enabling dynamic and fluid lighting effects. The combination of powerful LED output, SparkLED technology, and 360-degree movement empowers designers to craft unique and appealing designs, ranging from striking mid-air beams and expansive stage washes to subtle mood-enhancing effects suitable for television and live performances.

Elation PROTEUS RAYZOR 760 Features

  • IP65 Rated LED Wash Effects Fixture
  • 7x 60W OSRAM RGBW LED with Pixel Control
  • 28x 2W SparkLED Effect with Pixel Control (patent pending)
  • Extreme Zoom - 5 Degree for mid-air beam to 77 Degree for even washes
  • Fast and precise 360 Degree continuous Pan and Tilt rotation
  • Beam FX and Smooth Wash fixture in a compact IP65 certified housing

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create stunning light shows with the PROTEUS RAYZOR 760's vibrant RGBW color mixing.
  • Achieve unique effects using the moving head fixture's continuous 360° pan and tilt.
  • The 7,200 lumen output ensures powerful, bright washes for any stage or event lighting.
  • Enjoy precise control with multiple DMX channel modes for customized lighting designs.
  • This durable, IP65-rated wash light is perfect for outdoor events and installations.
  • Easily adjust settings via the full-color LCD display for quick lighting adjustments.

What's in the box:

  • Elation PROTEUS RAYZOR 760 7x 60W RGBW LED IP65 Wash Moving Head (Black)
  • 2x Omega Brackets
  • IP65 Rated 5-pin DMX Cable
  • IP65 Rated RJ45 Data Cable
  • IP65 Locking Power Cable
  • Elation 2 Year Limited Warranty
