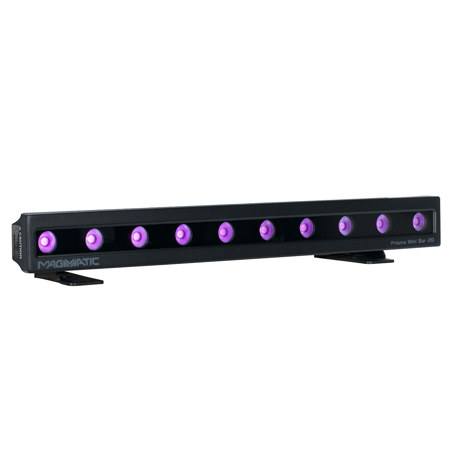

Elation PRISMA MINI BAR 20 10x 2W UV Linear LED IP65 Wash Fixture
Elation PRISMA MINI BAR 20: Picture 1 thumbnail
Elation PRISMA MINI BAR 20: Picture 2 thumbnail
Elation PRISMA MINI BAR 20: Picture 3 thumbnail
Elation PRISMA MINI BAR 20: Picture 4 thumbnail
Elation PRISMA MINI BAR 20: Picture 5 thumbnail
Elation PRISMA MINI BAR 20: Picture 6 thumbnail
See all Elation items
21% Off

Elation PRISMA MINI BAR 20 10x 2W UV Linear LED IP65 Wash Fixture

SKU: ELPSB121 MFR: PSB121
Be the first to review this itemAsk a Question
$399.00
$504.00
Save: $105 (21%)
OR
$67/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Create vibrant atmospheres with this Elation UV LED wash fixture for DJ lighting.
  • Achieve stunning blacklight effects using the 365nm true UV peak wavelength LED light.
  • Enjoy a robust, IP65 rated aluminum housing, perfect for indoor/outdoor DJ lighting.
  • Easily control this effect light with multiple DMX channel modes and RDM protocol support.
  • Set up quickly with adjustable mounting brackets for your stage or event lighting needs.
  • Experience long-lasting performance with 20,000-hour average LED life for your light shows.
See More Product Details
Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Elation PRISMA MINI BAR 20 Specifications

  • Source

    (10) 2W High Power UV Diode LEDs
    20,000 Hour Average LED Life

  • Photometrics

    20 Degree Narrow Beam Angle
    365nm True UV Peak Wavelength

  • Effects

    High Speed Electronic Strobe
    Variable Dimming Curve Modes

  • Construction

    Rugged IP65 Rated Aluminum Housing
    Adjustable Mounting Brackets (x2)

  • Control

    Multiple DMX Channel Modes
    DMX-512 and RDM Protocol Support

  • Connections

    19' 22 AWG 2 Conductor wire with Phoenix connector
    Minimum Cable Requirement: 22 AWG
    Maximum Distance From Driver to Fixture: 40'

  • Electrical

    DC 36.7V (Via Pixel Driver 8)
    24.3W Max Power Consumption

  • Thermal

    14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
    Air Cooled

  • Dimensions (L x W x H)

    3.97 x 18.9 x 4.19" (100 x 480 x 106.5mm)

  • Weight

    4.2 lbs (1.90kg)

  • UPC Code

    810008261187

About Elation PRISMA MINI BAR 20

Just imagine transforming your outdoor events with the PRISMA MINI BAR 20, a cutting-edge IP65 rated exterior UV wash bar luminaire. This advanced lighting fixture is designed to deliver a powerful 365nm peak true UV output, ensuring a stunning visual effect with zero visible light interference. Its impressive 20-degree beam angle provides precise and focused illumination, making it ideal for a variety of applications, from architectural lighting to stage productions. The PRISMA MINI BAR 20 is engineered for seamless integration with the PRISMA DRIVER 8 or PRISMA DRIVER 8IP (not included), offering flexibility and ease of use. Enhance your lighting setup with this robust and efficient UV linear LED wash fixture, perfect for creating captivating atmospheres in any outdoor setting.

Elation PRISMA MINI BAR 20 Features

  • IP65 Rated Exterior High-Power UV Wash Bar Luminaire
  • 10x 2 Watt LEDS
  • 36.7 Volts
  • 24.3W Max Power Consumption
  • 20 Degree Narrow Beam Angle
  • 19' 22 Gauge 2 Conductor wire with Phoenix connector
  • Zero Visible Light Output

Warranty Information

This product has a limited warranty of 24 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Create vibrant atmospheres with this Elation UV LED wash fixture for DJ lighting.
  • Achieve stunning blacklight effects using the 365nm true UV peak wavelength LED light.
  • Enjoy a robust, IP65 rated aluminum housing, perfect for indoor/outdoor DJ lighting.
  • Easily control this effect light with multiple DMX channel modes and RDM protocol support.
  • Set up quickly with adjustable mounting brackets for your stage or event lighting needs.
  • Experience long-lasting performance with 20,000-hour average LED life for your light shows.

What's in the box:

  • Elation PRISMA MINI BAR 20 10x 2W UV Linear LED IP65 Wash Fixture
  • Phoenix Connector
  • Positive Wire Tip Sheath
  • Negative Wire Tip Shealth
  • Elation 2 Year Limited Warranty
