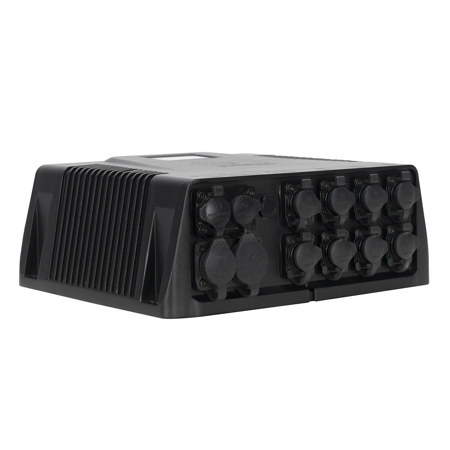

Elation PRISMA DRIVER 8IP 8 Fixture Driver for Prisma Mini Series Fixtures

SKU: ELPSD162 MFR: PSD162
Earn VIP Reward Points

Key Features

  • Control up to 8 Elation Prisma Mini fixtures with this robust, IP65-rated fixture driver.
  • Enjoy versatile control options with multiple DMX channel modes and RDM protocol support.
  • Easily mount this driver on any surface using the convenient keyhole slots for secure placement.
  • Get reliable power with the locking power connector, ensuring your lighting stays connected.
  • Experience seamless integration with locking 5-pin XLR connectors for DMX input and output.
  • This Elation PRISMA driver offers durable construction for long-lasting performance in any venue.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PRISMA DRIVER 8IP Specifications

  • Construction

    Rugged IP65 Housing
    Easy Keyhole Slots for Wall/Surface Mounting

  • Control

    Multiple DMX Channel Modes
    Onboard 4 Button Touch Control Panel
    DMX-512 and RDM Protocol Support

  • Connections

    8x 4pin locking output sockets (8 PRISMA MINI fixtures max)
    "Includes 8x 4pin Connection Kits"
    Locking 5pin XLR Connector In/Out
    IP65 Locking Power Connector In/Out
    With Wired Digital Communication Network

  • Electrical

    AC90-240V, 50-60Hz
    48VDC 8.3A
    167W Max Power Consumption

  • Thermal

    Maximum Temperature (Ambient): 113 Degree F (45 Degree C)
    Minimum Temperature (Ambient): 14 Degree F (-10 Degree C)

  • Dimensions (L x W x H)

    9 x 10.4 x 4.2" (227.8 x 264 x 105.9mm)

  • Weight

    8.05 lbs (3.65kg)

  • UPC Code

    810008262894

About Elation PRISMA DRIVER 8IP

Under the robust and reliable design of the PRISMA DRIVER 8IP, you'll find an advanced 48VDC driver system specifically engineered for the PRISMA Mini Series Fixtures. This high-performance driver is IP65 rated, ensuring protection against dust and water, making it ideal for both indoor and outdoor applications. It offers precise individual DMX-512 control, allowing for sophisticated lighting effects with variable delayed time dimming modes. The PRISMA DRIVER 8IP is compatible with up to eight PRISMA MINI UV LED fixtures, including the PRISMA MINI PAR 20, PRISMA MINI PAR 45, and the PRISMA MINI BAR 20.

Designed with user convenience in mind, this driver features easy keyhole slots for seamless wall and surface mounting. It includes multiple DMX control modes and an intuitive onboard 4-button touch control panel for effortless operation. The unit is equipped with 8x 4pin locking output sockets, ensuring secure connections, along with DMX 5pin locking XLR in/out and locking power in/out for reliable performance. Additionally, the PRISMA DRIVER 8IP comes complete with 8x 4pin Connection Kits, providing everything you need to get started with your lighting setup. Experience the perfect blend of functionality and durability with the PRISMA DRIVER 8IP, designed to enhance your lighting projects with precision and ease.

Elation PRISMA DRIVER 8IP Features

  • Rugged IP65 housing for durability
  • Easy keyhole slots for mounting
  • Multiple DMX control modes
  • Onboard 4-button touch control panel

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Control up to 8 Elation Prisma Mini fixtures with this robust, IP65-rated fixture driver.
  • Enjoy versatile control options with multiple DMX channel modes and RDM protocol support.
  • Easily mount this driver on any surface using the convenient keyhole slots for secure placement.
  • Get reliable power with the locking power connector, ensuring your lighting stays connected.
  • Experience seamless integration with locking 5-pin XLR connectors for DMX input and output.
  • This Elation PRISMA driver offers durable construction for long-lasting performance in any venue.

What's in the box:

  • Elation PRISMA DRIVER 8IP 8 Fixture Driver
  • Twist-Locking Power Cable
  • 8x 4-Pin Connector
  • Elation 2 Year Limited Warranty
