What type of environments is the PRISMA MINI PAR 20 suitable for?

The PRISMA MINI PAR 20 is ideal for outdoor environments, thanks to its IP65 rating, which makes it resistant to dust and water jets.

What is the beam angle of the PRISMA MINI PAR 20?

The PRISMA MINI PAR 20 features a 20-degree beam angle, providing focused and efficient UV light distribution.

What drivers are compatible with the PRISMA MINI PAR 20?

The PRISMA MINI PAR 20 is compatible with the PRISMA DRIVER 8 and PRISMA DRIVER 8IP, which are sold separately.

What is the peak UV output wavelength of the PRISMA MINI PAR 20?

The PRISMA MINI PAR 20 produces a 365nm peak true UV output, ensuring no visible light interference.

What applications are suitable for the PRISMA MINI PAR 20?

The PRISMA MINI PAR 20 is perfect for architectural, entertainment, and event lighting applications, providing captivating UV effects.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Elation PRISMA MINI PAR 20 Specifications

  • Source

    7x 2W High Power UV Diode LEDs
    20,000 Hour Average LED Life

  • Photometrics

    20 Degree Narrow Beam Angle
    365nm True UV Peak Wavelength

  • Effects

    High Speed Electronic Strobe
    Variable Dimming Curve Modes

  • Construction

    Rugged IP65 Rated Aluminum Housing
    Adjustable Mounting Yoke

  • Control

    Multiple DMX Channel Modes
    DMX-512 and RDM Protocol Support

  • Connections

    9' 22 AWG 2 Conductor wire with Phoenix connector
    Minimum Cable Requirement: 22 AWG
    Maximum Distance From Driver to Fixture: 40'

  • Electrical

    DC 25V (Via Pixel Driver 8)
    19W Max Power Consumption

  • Thermal

    14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
    Air Cooled

  • Dimensions (L x W x H)

    5.66 x 2.86 x 5.64" (144 x 72.8 x 143.3mm)

  • Weight

    1.98 lbs (898.11g)

  • UPC Code

    810008261163

About Elation PRISMA MINI PAR 20

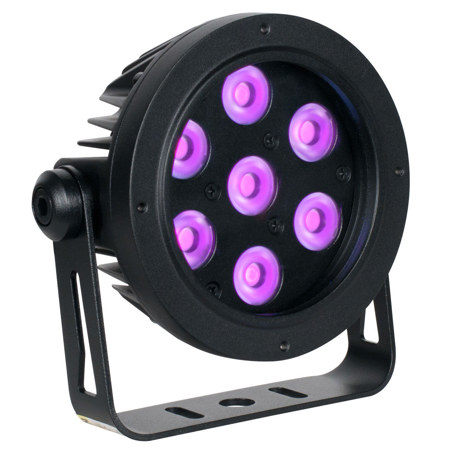

After enhancing your lighting setup with the PRISMA MINI PAR 20 7x 2W UV LED IP65 Par Fixture, you'll experience superior UV illumination designed for outdoor environments. This high-performance exterior UV wash par luminaire is IP65-rated, ensuring it is dust-tight and protected against water jets from any direction, making it ideal for various weather conditions. It delivers a precise 365nm peak true UV output, ensuring no visible light interference, which is perfect for creating captivating UV effects in architectural, entertainment, and event lighting applications.

With a focused 20-degree beam angle, the PRISMA MINI PAR 20 ensures concentrated and efficient UV light distribution, enhancing the visual impact of your displays. This fixture is powered by the PRISMA DRIVER 8 or PRISMA DRIVER 8IP (sold separately), offering flexibility and compatibility with your existing lighting systems. Whether you're illuminating outdoor venues, enhancing stage performances, or creating immersive environments, the PRISMA MINI PAR 20 stands out as a reliable and effective solution for all your UV lighting needs.

Elation PRISMA MINI PAR 20 Features

  • IP65 Rated Exterior High-Power UV Wash Par Luminaire
  • 20 Degree Narrow Beam Angle
  • 7x 2 Watt LEDS
  • 365nm True UV Peak Wavelength
  • 9' 22 Gauge 2 Conductor wire with Phoenix connector
  • Zero Visible Light Output
  • 19 Watt Max Power Consumption

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create stunning blacklight effects with this Elation UV LED Par fixture for parties.
  • This IP65 rated Par Can is perfect for outdoor events, offering reliable UV lighting.
  • Achieve precise lighting with the 20-degree narrow beam angle of this UV LED fixture.
  • Enjoy long-lasting performance with 20,000-hour average LED life in this Par Can.
  • Easily control your lighting setup using multiple DMX channel modes on this UV Par fixture.
  • The rugged aluminum housing and adjustable yoke make this LED Par a durable lighting solution.

What's in the box:

  • Elation PRISMA MINI PAR 20 7x 2W UV LED IP65 Par Fixture
  • Phoenix Connector
  • 2x Positive Wire Tip Sheath
  • 2x Negative Wire Tip Sheath
  • Elation 2 Year Limited Warranty
