20% Off

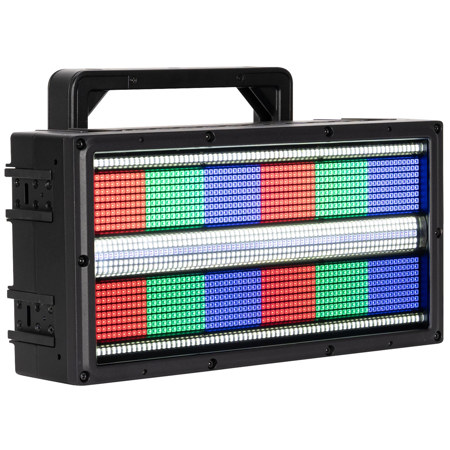

Elation PULSE PANEL RGBW LED Strobe Panel

SKU: ELPUL001 MFR: PUL001
Earn VIP Reward Points

Key Features

  • Unleash vibrant color washes with this Elation RGBW LED strobe panel for dynamic stage lighting.
  • Achieve stunning visual effects using the PULSE PANEL's customizable RGB and CW strobe patterns.
  • Control your light show via DMX, Art-Net, or sACN for seamless integration with DJ lighting.
  • Benefit from the panel's IP65 rating, ensuring durability for outdoor events and productions.
  • Easily manage settings and effects with the intuitive 4-button control panel and LED display.
  • Experience powerful illumination with up to 110,709 lumens, perfect for high-impact lighting.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PULSE PANEL Specifications

  • Source

    (1248) 1.5W RGB LEDs
    (432) 5W CW Strobe LEDs
    50,000 Hour Average LED Life

  • Photometrics

    Total Lumen Output:
    Integrating Sphere
    All LED: 77,919 Lumens
    CW LED:110,709 Lumens
    RGB LED: 49,868 Lumens
    CRI: >70
    Beam Angle: 68 Degree
    Field Angle: 112 Degree

  • Effects

    24 Zones of RGB Plate LEDs (6 x 4)
    48 Zones of CW Strobe LEDs (12 x 4)
    12 Zones of RGB Strobe Line LED's (12 x 1)
    1- 20Hz Strobe Rate
    Library of Customizable RGB and CW Strobe Effects
    Variable Dimming Modes and Curves

  • Color

    RGB Color Array

  • Control / Connections

    9 DMX Channel Modes (3ch, 12ch, 22ch, 45ch, 60ch, 170ch, 88ch, 178ch, 156ch)
    4 Button Control Panel, LED Display
    Aria x2 Wireless Device management
    RDM (Remote Device Management)
    IP65 5pin XLR DMX In/Out
    IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
    IP65 Locking Power Cable In

  • Electrical

    AC 100-240V - 50/60Hz
    Max Power Consumption 1400W
    BTU/hr (+/- 10%) 4774

  • Thermal

    -4 Degree F to 113 Degree F (-20 Degree C to 45 Degree C)

  • Dimensions (L x W x H)

    16.5 x 11.8 x 8.3" (420 x 299 x 210mm)

  • Weight

    29.5 lbs (13.4kg)

  • UPC Code

    810008264560

About Elation PULSE PANEL

Enhance your lighting setup with the PULSE PANEL RGBW LED Strobe Panel, a powerhouse of explosive strobe power and visual creativity. As a standout in the innovative Pulse line of strobe lights, the PULSE PANEL infuses any show with a burst of dynamism and inspiration. Lighting designers seeking versatile effect lights will find the PULSE PANEL to be an exceptional choice, offering multi-functionality as a potent strobe, a bright blinder, a high-output wash light, or a creative eye candy effect all in one compact unit.

The PULSE PANEL boasts an impressive LED configuration, featuring 1,152 1.5W RGB LEDs arranged across 24 zones around its perimeter in a grid of 6 zones wide and 4 zones tall. Complementing this is a central strobe line with 288 5W cool-white LEDs, organized into 24 zones with 12 zones across and 2 zones tall. Additionally, a line of 96 1.5W RGB LEDs is divided into 12 zones, and 144 more 5W cool-white LEDs are split into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture's face. These outer LEDs utilize a linear prismatic lens, akin to those in our Rayzor Blade fixtures, delivering an astonishing output exceeding 100,000 total lumens.

The PULSE PANEL is equipped with a library of customizable RGB and CW strobe effects, along with variable dimming modes and curves for efficient programming. It offers the ability to mirror control of the external strobe lines and center RGB strobe line via DMX control channel or menu, simplifying the cloning process. Encased in a robust, fully IP65-rated housing, the PULSE PANEL is designed for any environment, whether indoors or outdoors. Its unique interlocking mechanism allows for vertical or horizontal hanging from other PULSE PANEL fixtures or SOL Blinder Frame arrays. The unit also features airline track on the top and bottom and can accommodate optional diffusion filters, ND filters, and other optics.

Control the PULSE PANEL with ease using DMX, RDM, Art-Net, sACN, and KlingNet protocols. It also includes proprietary Aria x2 wireless device management for streamlined system setup and maintenance. Elevate your lighting design with the PULSE PANEL RGBW LED Strobe Panel, where innovation meets versatility.

Elation PULSE PANEL Features

  • (1152) 1.5W RGB LED's in 24 Zones
  • (432) 5W CW Strobe LED's in 48 Zones
  • (96) 1.5W RGB Strobe Line LED's in 12 Zones
  • Unique Array Interconnection System
  • Art-Net, sACN and KlingNet Support
  • IP65 Rated

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Unleash vibrant color washes with this Elation RGBW LED strobe panel for dynamic stage lighting.
  • Achieve stunning visual effects using the PULSE PANEL's customizable RGB and CW strobe patterns.
  • Control your light show via DMX, Art-Net, or sACN for seamless integration with DJ lighting.
  • Benefit from the panel's IP65 rating, ensuring durability for outdoor events and productions.
  • Easily manage settings and effects with the intuitive 4-button control panel and LED display.
  • Experience powerful illumination with up to 110,709 lumens, perfect for high-impact lighting.

What's in the box:

  • Elation PULSE PANEL RGBW LED IP65 Strobe Panel
  • Safety Cable
  • IP65 Locking Power Cable
  • 2x Fixture Interconnect Splice
  • Elation 2 Year Limited Warranty
