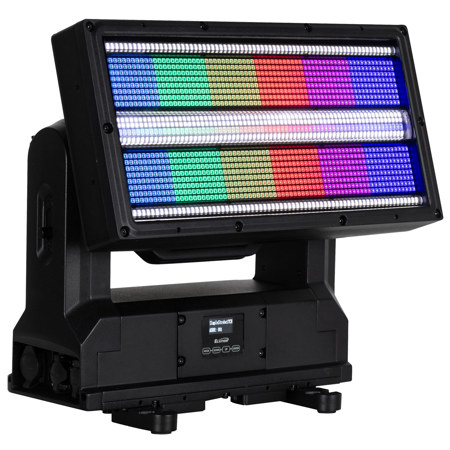

Elation PULSE PANEL FX RGBW LED IP65 Strobe Panel

SKU: ELPUL345 MFR: PUL345
Earn VIP Reward Points

Key Features

  • Create dynamic light shows with the PULSE PANEL FX's vibrant RGB color array.
  • Achieve stunning visual effects using 24 zones of RGB plate LEDs for DJ lighting.
  • Enjoy seamless control with multiple DMX channel modes for customized light displays.
  • The IP65 rating ensures durability, making this strobe panel perfect for any event.
  • Easily manage settings via the 4-button control panel and LED display features.
  • Experience continuous pan/spin movement for immersive and engaging light effects.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation PULSE PANEL FX Specifications

  • Source

    (1248) 1.5W RGB LEDs
    (432) 5W CW Strobe LEDs
    50,000 Hour Average LED Life

  • Photometrics

    Total Lumen Output:
    Integrating Sphere
    All LED: 78,265 Lumens
    CW LED: 108,574 Lumens
    RGB LED: 44,090 Lumens
    CRI: >70
    Beam Angle: 68 Degree
    Field Angle: 112 Degree

  • Effects

    24 Zones of RGB Plate LEDs (6 x 4)
    48 Zones of CW Strobe LEDs (12 x 4)
    12 Zones of RGB Strobe Line LED's (12 x 1)
    1- 20Hz Strobe Rate
    Library of Customizable RGB and CW Strobe Effects
    Variable Dimming Modes and Curves
    Pan/Spin Angle: 540 Degree /360 Degree
    360 Degree Continuous Pan/Spin Movement
    Tilt Angle: 180 Degree
    Setting to Lock Pan/Spin Movement

  • Color

    RGB Color Array

  • Control / Connections

    12 DMX Channel Modes (8ch, 16ch, 27ch, 50ch, 62ch, 65ch, 175ch, 90ch, 93ch, 183ch, 161ch, 156ch)
    Ability to Address Fixture Control and LED Control to Separate Universes
    4 Button Control Panel, LED Display
    Aria x2 Wireless Device Management
    RDM (Remote Device Management)
    IP65 5pin XLR DMX In/Out
    IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
    IP65 Locking Power Cable In

  • Electrical

    AC 100-240V - 50/60Hz
    Max Power Consumption 1750W
    BTU/hr (+/- 10%) 5967.5

  • Dimensions (L x W x H)

    8.28 x 16.54 x 15.59" (210 x 420 x 396mm)
    Center-to-Center: 20.47" (520mm)

  • Weight

    38.58 lbs (17.5kg)

  • UPC Code

    810008264522

About Elation PULSE PANEL FX

Explore the unparalleled versatility and explosive power of the PULSE PANEL FX RGBW LED IP65 Strobe Panel, a standout fixture in the innovative Pulse line of strobe lights. Designed to elevate any performance with its dynamic capabilities, this fixture seamlessly merges visual creativity with high-impact strobe effects. The PULSE PANEL FX is not just a strobe light; it is a multi-functional powerhouse that serves as a bright blinder, high-output wash light, and creative eye candy effect, all in one compact unit.

Engineered for dynamic movement, the PULSE PANEL FX features fast and continuous 360-degree pan/spin and 180-degree tilt, adding an extra layer of excitement to your lighting design. The fixture is equipped with an impressive array of 1,152 1.5W RGB LEDs, meticulously arranged across 24 zones in a 6x4 grid around its perimeter. Complementing this is a central strobe line of 288 5W cool-white LEDs, organized into 24 zones with a 12x2 configuration. These are flanked by a line of 96 1.5W RGB LEDs divided into 12 zones. Additionally, the fixture includes 144 extra 5W cool-white LEDs, split into 24 zones with 12 zones at the top and 12 at the bottom, utilizing a linear prismatic lens akin to our Rayzor Blade fixtures. Together, these components deliver an astonishing output exceeding 100,000 total lumens.

The PULSE PANEL FX offers a comprehensive library of customizable RGB and CW strobe effects, along with variable dimming modes and curves for efficient programming. Its versatility is further enhanced by numerous control modes, allowing for easy cloning and mirroring of the external strobe lines and center RGB strobe line via DMX control channels or the menu. Users can also disable the pan/spin motor if desired, tailoring the effect to specific needs.

Control the PULSE PANEL FX with precision using DMX, RDM, Art-Net, sACN, and KlingNet protocols. The fixture supports two separate universes for control one dedicated to fixture movement and another for LED control enabling seamless integration with media servers or separate content control devices. Simplify system setup and maintenance with the proprietary Aria x2 wireless device management.

Encased in a robust, fully IP65-rated housing, the PULSE PANEL FX is built to withstand any environment, making it ideal for both indoor and outdoor applications. Elevate your lighting design with the PULSE PANEL FX, where innovation meets performance.

Elation PULSE PANEL FX Features

  • (1152) 1.5W RGB LED's in 24 Zones
  • (432) 5W CW Strobe LED's in 48 Zones
  • (96) 1.5W RGB Strobe Line LED's in 12 Zones
  • Fast and Continuous 360 Degree Pan/Spin and 180 Degree Tilt
  • Art-Net, sACN and KlingNet Support
  • IP65 Rated

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create dynamic light shows with the PULSE PANEL FX's vibrant RGB color array.
  • Achieve stunning visual effects using 24 zones of RGB plate LEDs for DJ lighting.
  • Enjoy seamless control with multiple DMX channel modes for customized light displays.
  • The IP65 rating ensures durability, making this strobe panel perfect for any event.
  • Easily manage settings via the 4-button control panel and LED display features.
  • Experience continuous pan/spin movement for immersive and engaging light effects.

What's in the box:

  • Elation PULSE PANEL FX RGBW LED IP65 Strobe Panel
  • Safety Cable
  • IP65 Locking Power Cable
  • Omega Brackets
  • Elation 2 Year Limited Warranty
