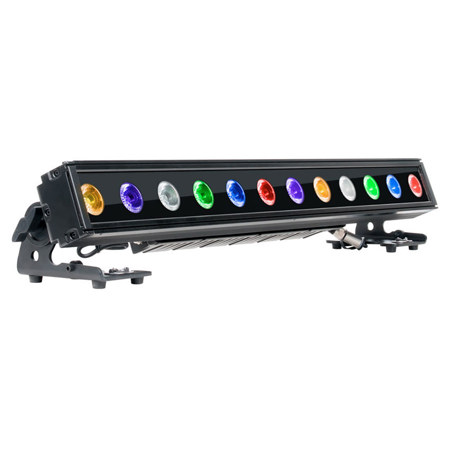

Elation SIXBAR 1000 IP 12x 12W RGBAW+UV LED IP65 Batten Fixture, Black

SKU: ELSIX098 MFR: SIX098
Earn VIP Reward Points

Key Features

  • Create vibrant washes with this Elation RGBAW+UV LED batten fixture for dynamic color mixing.
  • Enjoy pixel control and strobe effects using this dynamic color and wash light for stages.
  • This IP65 rated LED fixture is perfect for outdoor events, providing reliable DJ lighting.
  • Achieve stunning visual displays with its wide range of DMX channel modes for lighting control.
  • Simplify setup with the locking power cable and user-friendly LCD menu display features.
  • Benefit from long-lasting performance with LEDs boasting a 100,000-hour average lifespan.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation SIXBAR 1000 IP Specifications

  • Color

    Black

  • Source

    (12) 12W 6-in-1 RGBAW+UV LEDs
    100,000 Hour Average LED Life

  • Photometrics

    7,149 LUX 664 FC @3.3' (1m) (25 Degree Full ON)

  • Effects

    Pixel Control
    Strobe and Chase Effects
    Variable and Selectable Dimming Curves

  • Control/Connections

    (8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
    4 Button Touch Control Panel and LCD Menu Display
    RDM (Remote Device Management)
    IP Rated 5pin DMX In/Out
    IP65 Locking Power Cable In/Out
    With Wired Digital Communication Network

  • Electrical/Thermal

    AC 110-240V - 50/60Hz
    145W Max Power Consumption
    Multiple Unit Power Linking
    5 Degree F to 113 Degree F (-15 Degree C to 45 Degree C)
    UV Wavelength: 395nm

  • Firmware Updates

    Current Version: V1.10

  • Dimensions (L x W x H)

    Without Glare Shield: 33.6 x 5.6 x 4.7" (853 x 141.4 x 120.5mm)

  • Weight

    19 lbs (8.6kg)

  • UPC Code

    837874019643

About Elation SIXBAR 1000 IP

With the Elation SIXBAR 1000 IP 12x 12W RGBAW+UV LED IP65 Batten Fixture, you can elevate your lighting setup to new heights. This robust fixture is equipped with twelve powerful 12W 6-IN-1 RGBAW+UV LEDs, delivering vibrant and versatile color mixing capabilities. Designed for outdoor use, its IP65 rating ensures protection against dust and water, making it ideal for both indoor and outdoor events.

The SIXBAR 1000 IP offers a precise 25-degree beam angle, allowing for focused illumination, while its pixel control feature provides dynamic lighting effects. Experience seamless transitions with variable dimming curve modes, and enhance your shows with strobe and chase effects. The fixture also includes a UV wavelength of 395nm, perfect for creating stunning ultraviolet effects.

For ease of use, the fixture supports RDM (Remote Device Management) protocol, enabling advanced control and monitoring. It features IP-rated DMX and power in/out connections, ensuring reliable performance in challenging environments. The LCD menu display with a 4-touch button control panel simplifies operation, while dual adjustable rigging/floor stand brackets offer flexible mounting options.

Included with the fixture are a glare shield and frost filter, allowing you to customize the light output to suit your needs. Multiple unit power linking is supported, making it easy to connect several fixtures for larger setups. Built with a rugged die-cast aluminum exterior, the SIXBAR 1000 IP is designed to withstand the rigors of professional use.

Enjoy flicker-free operation, making this fixture suitable for TV and film applications. With a maximum power consumption of 145W and a multi-voltage universal auto-switching power supply (110-240V), the SIXBAR 1000 IP is both efficient and versatile, ready to meet the demands of any lighting project.

Elation SIXBAR 1000 IP Features

  • IP65 Rated
  • 12x 12W 6-in-1 RGBAW+UV LEDs
  • 25 Degree Beam Angle
  • Pixel Control
  • Rugged Die-Cast Aluminum Exterior
  • Glare Shield and (2) Lens Filters Included

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create vibrant washes with this Elation RGBAW+UV LED batten fixture for dynamic color mixing.
  • Enjoy pixel control and strobe effects using this dynamic color and wash light for stages.
  • This IP65 rated LED fixture is perfect for outdoor events, providing reliable DJ lighting.
  • Achieve stunning visual displays with its wide range of DMX channel modes for lighting control.
  • Simplify setup with the locking power cable and user-friendly LCD menu display features.
  • Benefit from long-lasting performance with LEDs boasting a 100,000-hour average lifespan.

What's in the box:

  • Elation SIXBAR 1000 IP 12x 12W RGBAW+UV LED IP65 Batten Fixture (Black)
  • IP65 Locking Power Cable
  • Glare Shield
  • 3x Glare Shield Holding Screws
  • 2x Lens Filters
  • User Manual
  • Elation 2 Year Limited Warranty
