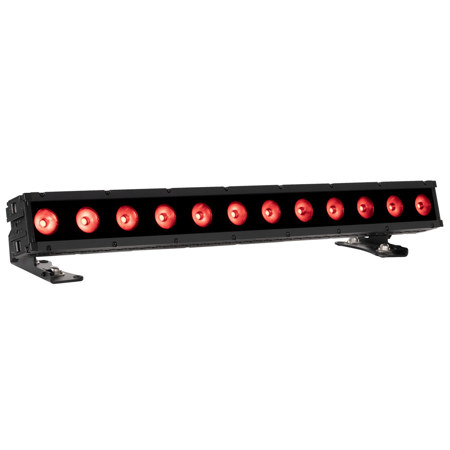

Elation SIX+ BAR L 12x 20W RGBLA+UV LED IP65 Batten Fixture

SKU: ELSIX238 MFR: SIX238
Earn VIP Reward Points

Key Features

  • Create stunning washes of color with this Elation RGBLA+UV LED Batten Fixture for vibrant stage lighting.
  • Achieve dynamic lighting effects with full pixel control and smooth electronic dimming and strobe features.
  • Enjoy versatile connectivity with IP65 5pin XLR and RJ45 Ethernet ports for Art-Net and sACN protocols.
  • This durable IP65 batten fixture is perfect for outdoor events, offering reliable performance in any weather.
  • Customize your lighting with CMY emulation, variable CCT, and a virtual gel swatch book for unique looks.
  • Control your lights remotely with Aria 2x Wireless Device Management and RDM for easy adjustments.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Elation SIX+ BAR L Specifications

  • Source

    12x 20W RGBLA+ UV LEDs
    30,000 Hour Average LED Life

  • Photometrics

    Total Lumen Output:
    9,325 (Integrating Sphere)
    7,554 (Goniometer)
    CRI- 92.3
    TLCI- 83

  • Beam Angle

    No Lens: 20 Degree
    Included Frost: 32 Degree

  • Field Angle

    No Lens: 36 Degree
    Included Frost: 60 Degree

  • Effects

    Full Pixel Control
    Electronic Dimmer and Strobe
    Variable 16-bit Dimming Modes and Curves

  • Color

    RGBLA+ UV Color Array
    CMY Emulation
    Dim-to-Warm Fade
    Variable CCT 2400K - 8500K
    Virtual Gel Swatch Book

  • Control / Connections

    15 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 13ch, 16ch, 16ch, 22ch, 22ch, 34ch, 34ch, 58ch, 82ch, 154ch, 72ch)
    5 Six Bar 1000 Emulation DMX Channel Modes (6ch, 7ch, 11ch, 13ch, 75ch)
    4 Button Control Panel, LED Display
    Aria 2x Wireless Device Management
    RDM (Remote Device Management)
    IP65 5pin XLR DMX In/Out
    IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
    IP65 Locking Power Cable In/Out

  • Electrical / Thermal

    AC 100-240V - 50/60Hz
    210W Max Power Consumption
    Power Thru Capacity: @110V: 7 Units; @240V: 16 Units
    5 to 113 Degree F (-15 to 45 Degree C)
    BTU/hr (+/- 10%) 716.1

  • Dimensions (L x W x H)

    39.4 x 6.9 x 8.11" (100.07 x 17.52 x 20.59cm)

  • Weight

    24 lbs (10.9kg)

  • UPC Code

    810008264492

About Elation SIX+ BAR L

Overcome the limitations of traditional lighting with the SIX+ BAR L 12x 20W RGBLA+UV LED IP65 Batten Fixture, a cutting-edge solution designed to elevate your lighting projects to new heights. This innovative LED batten fixture combines advanced LED color technology with a versatile design, offering unparalleled artistic expression and creativity. As an enhanced version of Elation's renowned SixBar 1000, the SIX+ BAR L delivers increased output, an expanded color spectrum, and superior light quality.

Equipped with 20W RGB+Lime+Amber+UV LEDs, the SIX+ BAR L boasts an impressive Color Rendering Index (CRI) of 92.3, ensuring vibrant and accurate color reproduction. Its meticulously engineered optical system guarantees even light distribution, while the proprietary RGBLA+UV engine produces high-fidelity whites and vivid primary colors without any color fringing. The fixture's extra-large 50 mm lenses make it perfect for direct view applications, and individual cell control offers endless design possibilities.

The meter-long fixture houses 12 powerful RGBLA+UV LEDs, delivering over 9000 lumens of brilliant illumination. With fully variable color temperature adjustment ranging from 2400K to 8500K, CMY emulation, and a virtual gel library, designers can effortlessly access a wide array of LED colors, including perfectly blended whites. The SixBar emulation mode ensures seamless color matching and DMX control with existing SixBar fixtures, enhancing time efficiency.

The SIX+ BAR L features an integrated accessory slot that accommodates the included frost filter, with optional ND filters and other optics available for further customization. It also comes with a glare shield for optimal wall wash applications. Designed for ultimate flexibility, the fixture's innovative housing allows for end-to-end interconnection and includes integrated L track on three sides for versatile mounting and positioning. Trunnions can be attached to the L track at multiple points, optimizing placement around objects or obstacles.

Ideal for a wide range of productions, the SIX+ BAR L functions as a versatile wash light, uplight, wall/cyc wash, accent light, direct view pixel strip, and more. Encased in a durable, fully IP65-rated housing, it is suitable for any environment, indoors or outdoors. The C4-M marine grade coating provides protection against harsh conditions, including salty coastal air. Its fanless convection cooling ensures silent operation, making it perfect for noise-sensitive settings.

Control the SIX+ BAR L via DMX/RDM, Art-Net, sACN, and KlingNet protocols, and take advantage of the proprietary Aria x2 wireless device management for simplified system setup and maintenance. Experience the future of LED batten lighting and unleash your creative potential with the SIX+ BAR L 12x 20W RGBLA+UV LED IP65 Batten Fixture.

Elation SIX+ BAR L Features

  • 12x 20W RGBLA+UV LED Array
  • 9,325 Lumens, 92.3 CRI
  • Extra Large 50mm Lenses
  • Beam Angle: 20 Degree (Frost Filter Included)
  • Full Pixel Control
  • Completely Fanless Cooling
  • Integrated L Track for Flexible Mounting
  • Unique End-to-End Interconnection System
  • Art-Net, sACN and KlingNet Support
  • IP65 Rated

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Create stunning washes of color with this Elation RGBLA+UV LED Batten Fixture for vibrant stage lighting.
  • Achieve dynamic lighting effects with full pixel control and smooth electronic dimming and strobe features.
  • Enjoy versatile connectivity with IP65 5pin XLR and RJ45 Ethernet ports for Art-Net and sACN protocols.
  • This durable IP65 batten fixture is perfect for outdoor events, offering reliable performance in any weather.
  • Customize your lighting with CMY emulation, variable CCT, and a virtual gel swatch book for unique looks.
  • Control your lights remotely with Aria 2x Wireless Device Management and RDM for easy adjustments.

What's in the box:

  • Elation SIX+ BAR L 12x 20W RGBLA+UV LED IP65 Batten Fixture
  • Safety Cable
  • IP65 Locking Power Cable
  • Frost Filter
  • Glare Shield
  • Fixture Interconnect Splice
  • Elation 2 Year Limited Warranty
