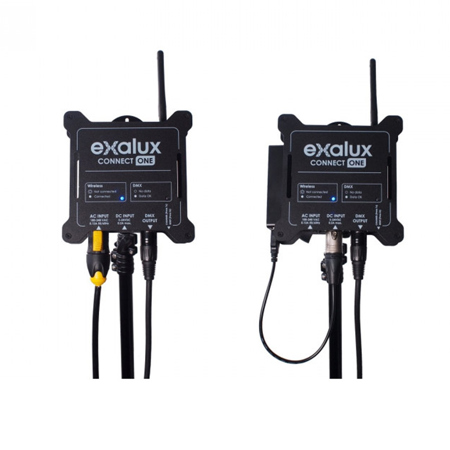

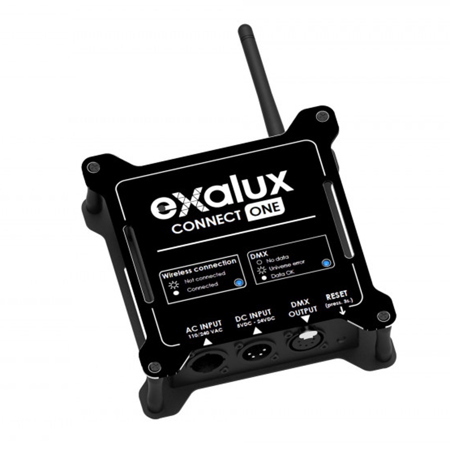

Exalux CONNECT ONE Wi-Fi to DMX Converter

SKU: ELXCNT000001 MFR: CNT.000.001
Earn VIP Reward Points

Key Features

  • Effortlessly control your DMX lighting setup with this Wi-Fi to DMX converter.
  • Achieve reliable lighting control with <5ms latency using this DMX interface.
  • Enjoy a robust Wi-Fi range up to 328' for flexible DMX lighting placements.
  • This DMX lighting controller supports DMX512-A protocol for wide compatibility.
  • Easily power your lighting setup with PowerCon or optional battery for DMX control.
  • Compact & lightweight design (12.5oz) makes this DMX converter super portable.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Exalux CONNECT ONE Specifications

Technical

Technical

Jump to...
  • Power Connection

    AC: Neutrik PowerCon
    DC: Neutrik XLR 4 Pins Male

  • Interface

    Frequency Selection (Switch)
    Wi-Fi Link (LED)
    DMX Signal (LED)

  • Power Consumption

    1W

  • Housing / Mounting

    Aluminum / M10 Threaded Hole

  • IP Rating

    IP20

  • Certifications

    CE, RoHS

Radio Interface

Jump to...
  • Standard / Technology

    Wi-Fi IEEE 802.11g

  • Frequency

    2.4 - 2.4835 GHz

  • Antenna

    Omnidirectional
    2.4GHZ 2dBi
    RP-SMA

  • RF Output

    17.5 dBm

  • RF Sensitivity

    -98.5dB

  • Range

    Up to 328' (100m) (Depending on the Transmitter and the Environment)

DMX Interface

Jump to...
  • Protocol

    DMX512-A

  • Universe Support

    1

  • DMX Frame Rate

    0,8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    Neutrik XLR 5 Pins Male

Operating Conditions

Jump to...
  • DC Input Voltage

    Min: 4.5VDC
    Typ: 5VDC
    Max: 24VDC

  • AC Input Voltage

    100 -240V AC

  • Storage Temperature

    Min: -22 Degree F (-30 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 158 Degree F (70 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (L x H)

    5.51 x 5.90 x 1.65" (140 x 150 x 42mm)

  • Weight

    12.5 oz (355g)

About Exalux CONNECT ONE

What sets the EXALUX CONNECT ONE apart is its innovative approach to DMX control, offering a high-tech, user-friendly solution for managing lighting and other DMX fixtures wirelessly. This compact and durable Wi-Fi to DMX converter is designed to seamlessly integrate with your existing tablet or smartphone, whether iOS or Android, transforming it into a sophisticated lighting control console.

Harness the power of wireless connectivity with the CONNECT ONE, which is compatible with a wide array of Art-Net/DMX-based applications including BlackOut, DMX CONNECT+, Luminair, and Stellar. Its built-in Wi-Fi interface and Art-Net/DMX node eliminate the need for additional access points, streamlining your setup and reducing cable clutter.

The CONNECT ONE's robust design is the result of a collaborative effort with some of France's most discerning gaffers, ensuring simplicity, ruggedness, and reliability in the field. It's engineered to withstand the rigors of both studio and on-location use, with a small EXALUX 8.5Wh Powerbank that supports up to 12 hours of operation. The device ensures a continuous Wi-Fi connection, even when switching between power sources, for uninterrupted control.

Setting up is as easy as 1-2-3: power on the unit, connect your iPad or Android device to the CONNECT ONE's secure Wi-Fi network, and link your DMX fixtures to the XLR 5-pin output. This all-in-one solution is designed to save you time and get you started with wireless DMX control effortlessly.

To further enhance your experience, EXALUX offers a complimentary app available for download from the Apple Store or Android Store, providing a turnkey solution for immediate wireless DMX operation. Whether you're in a broadcast studio or out in the field, the CONNECT ONE's versatile power modes cater to all your needs, ensuring reliable performance and optimal convenience.

Choose the EXALUX CONNECT ONE Wi-Fi to DMX Converter for its reputable brand heritage, flexibility, and the convenience of wireless DMX control, making it an essential tool for professionals seeking an advanced lighting control solution.

Exalux CONNECT ONE Features

  • Built-in 2.4Ghz Wi-Fi access point
  • Built-in Art-Net / DMX node (1 universe)
  • AC or DC power mode
  • Neutrik XLR connectors, industry standard compliant

Key Features

  • Effortlessly control your DMX lighting setup with this Wi-Fi to DMX converter.
  • Achieve reliable lighting control with <5ms latency using this DMX interface.
  • Enjoy a robust Wi-Fi range up to 328' for flexible DMX lighting placements.
  • This DMX lighting controller supports DMX512-A protocol for wide compatibility.
  • Easily power your lighting setup with PowerCon or optional battery for DMX control.
  • Compact & lightweight design (12.5oz) makes this DMX converter super portable.

What's in the box:

  • Exalux CONNECT ONE Wi-Fi to DMX Converter
  • PowerCon Power Supply Cable
  • Exalux 2 Year Limited Warranty
