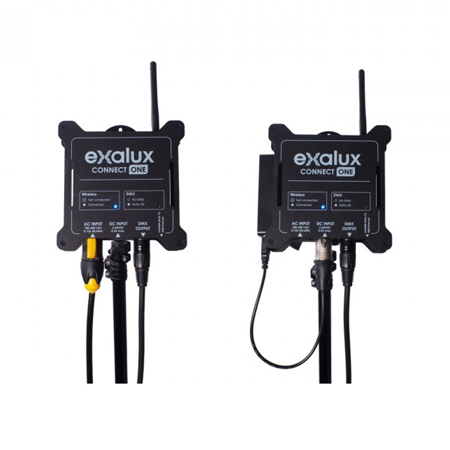

Exalux CONNECT ONE Wi-Fi to DMX Converter Starter Kit

SKU: ELXCNT000002 MFR: CNT.000.002
Earn VIP Reward Points

Key Features

  • Seamlessly control your DMX lighting setup with the Exalux CONNECT ONE converter kit.
  • Enjoy reliable Wi-Fi connectivity for DMX lighting control up to 328 feet away.
  • This DMX interface is designed with a durable aluminum housing and M10 mounting thread.
  • Power your lights easily with the included PowerCon AC cable and versatile XLR options.
  • The CONNECT ONE supports a wide DMX frame rate, from 0.8 to 830Hz, for smooth operation.
  • This lighting controller offers low latency (<5ms) for real-time DMX signal transmission.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Exalux CONNECT ONE Specifications

Technical

Technical

Jump to...
  • Power Connection

    AC: Neutrik PowerCon
    DC: Neutrik XLR 4 Pins Male

  • Interface

    Frequency Selection (Switch)
    Wi-Fi Link (LED)
    DMX Signal (LED)

  • Power Consumption

    1W

  • Housing / Mounting

    Aluminum / M10 Threaded Hole

  • IP Rating

    IP20

  • Certifications

    CE, RoHS

Radio Interface

Jump to...
  • Standard / Technology

    Wi-Fi IEEE 802.11g

  • Frequency

    2.4 - 2.4835 GHz

  • Antenna

    Omnidirectional
    2.4GHZ 2dBi
    RP-SMA

  • RF Output

    17.5 dBm

  • RF Sensitivity

    -98.5dB

  • Range

    Up to 328' (100m) (Depending on the Transmitter and the Environment)

DMX Interface

Jump to...
  • Protocol

    DMX512-A

  • Universe Support

    1

  • DMX Frame Rate

    0.8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    Neutrik XLR 5 Pins Male

Operating Conditions

Jump to...
  • DC Input Voltage

    Min: 4.5VDC
    Typ: 5VDC
    Max: 24VDC

  • AC Input Voltage

    100 -240V AC

  • Storage Temperature

    Min: -22 Degree F (-30 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 158 Degree F (70 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions

    5.51 x 5.90 x 1.65" (140 x 150 x 42mm)

  • Weight

    12.5 oz (355g)

About Exalux CONNECT ONE

It's time to revolutionize your lighting control with the EXALUX CONNECT ONE Wi-Fi to DMX Converter Starter Kit. This innovative device serves as a Wi-Fi to DMX gateway, enabling you to manage all your DMX fixtures effortlessly from any iOS or Android tablet or smartphone.

The CONNECT ONE is compatible with a wide range of Art-Net/DMX based apps, including BlackOut, DMX CONNECT+, Luminair, and Stellar, providing you with a versatile tool for your lighting needs. This Wi-Fi to DMX converter is powered by the compact EXALUX 8.5Wh Powerbank, offering up to 12 hours of operation. Plus, the seamless transition between power supplies ensures your Wi-Fi connection remains uninterrupted.

Using the CONNECT ONE is as simple as switching on the unit, connecting your iPad to the secure Wi-Fi network, and linking your DMX fixtures to the XLR 5 pins output. This all-in-one box solution eliminates the need for an extra access point, reducing cable clutter and simplifying your setup.

Designed in collaboration with top French gaffers, the CONNECT ONE prioritizes simplicity, durability, and reliability. Whether you're in a broadcast studio or on location, this device adapts to your environment thanks to its wide range power mode.

To further enhance your user experience, EXALUX offers a complimentary app available for download from the Apple Store or Android Store. This app is designed to help you get started with wireless DMX without any hassle.

Finally, the CONNECT ONE is fully compliant with all popular Art-Net protocol-based DMX applications, ensuring a smooth and efficient operation. With the EXALUX CONNECT ONE Wi-Fi to DMX Converter Starter Kit, you're not just controlling lights; you're controlling an experience.

Exalux CONNECT ONE Features

  • Built-in 2.4Ghz Wi-Fi access point
  • Built-in Art-Net / DMX node (1 universe)
  • AC or DC power mode
  • Neutrik XLR connectors, industry standard compliant

Key Features

  • Seamlessly control your DMX lighting setup with the Exalux CONNECT ONE converter kit.
  • Enjoy reliable Wi-Fi connectivity for DMX lighting control up to 328 feet away.
  • This DMX interface is designed with a durable aluminum housing and M10 mounting thread.
  • Power your lights easily with the included PowerCon AC cable and versatile XLR options.
  • The CONNECT ONE supports a wide DMX frame rate, from 0.8 to 830Hz, for smooth operation.
  • This lighting controller offers low latency (<5ms) for real-time DMX signal transmission.

What's in the box:

  • Exalux CONNECT ONE Wi-Fi to DMX Converter
  • 2200mAh/5VDC Powerbank
  • PowerCon AC Cable
  • D-Tap to XLR 4 Female Cord
  • USB-A to XLR 4 Female Cord
  • 6.5' XLR 5 Female to Male Cord
  • USB-A to Micro USB Cable (0.5')
  • Carrying Case
  • Exalux 2 Year Limited Warranty
