Exalux CONNECT+ Dual Band Wi-Fi to DMX Gateway Basic Kit

SKU: ELXCNT003001 MFR: CNT.003.001
Earn VIP Reward Points

Key Features

  • Seamlessly integrate with your lighting setup using the CONNECT+ DMX gateway.
  • Enjoy dual-band Wi-Fi for robust, reliable wireless DMX control on any stage.
  • Effortlessly manage complex lighting designs with Art-Net 4 and DMX512A support.
  • Record basic DMX sequences directly with this versatile lighting interface.
  • Power your lights via DC jack, V-Lock battery, or PoE for ultimate flexibility.
  • Use the intuitive color TFT display for easy setup and real-time DMX monitoring.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Exalux CONNECT+ Specifications

Features

Features

Jump to...
  • Power

    DCJack
    V-Lock Battery
    PoE-PD
    PoD-PSE Output

  • Interface

    Color TFT Display (/w Buttons)
    LED Indicators
    Backlit Buttons

  • Supported protocols

    Art-Net 4
    DMX512A / RDM

  • Network

    Wi-Fi Acces Point (2.4GHz) / Wi-Fi (5GHz)
    10/100Mbps Ethernet Switch

  • DMX

    Art-Net/DMX Nod
    Basic DMX Recorder

  • Others

    Backup/Restore Settings (USB Flash Drive)
    Display Backlight Settings (Level & Screen Saver)
    Security Restrictions (Pin Code Protected)
    Firmware Upgrade via USB Flash Drive (Not Provided)

Technical

Jump to...
  • Power Connection

    2 x 5.5mm DC jack

  • Interface

    Color TFT Display (/w Buttons)
    LED Indicators
    Backlit Buttons

  • Power Consumption

    12W max (20W Max with Extension)

  • Housing / Mounting

    Aluminum
    Black Painting
    Magnetic Rubber Feet M10

  • IP Rating

    IP20

  • Certifications

    CE, RoHS

DMX Interface

Jump to...
  • Protocol

    DMX512-A

  • Universe

    2 (One Per Output)

  • DMX Frame Rate

    0.8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    2x 5 Pins Female

Wireless Interface

Jump to...
  • Standard

    IEEE 802.11 a/b/g/n

  • Frequency

    Wi-Fi (2.4GHz): 2.412 - 2.484 GHz (13 ch)
    Wi-Fi (5GHz): 5.180 - 5.845 GHz (35 ch)

  • Antenna

    Whip Hinged Antenna
    50 Ohm
    Female RP-SMA (x2)

  • RF Output / Sensitivity

    17 dBm

  • Range

    Wi-Fi (2.4GHz) 328' (100m)
    Wi-Fi (5GHz) 164' (50m)

Ethernet Interface

Jump to...
  • Standard

    IEEE 802.3 10/100 Mbps

  • Ports

    1x RJ45 8P/8C
    1x Neutrik EtherCON

USB Interface

Jump to...
  • Standard

    USB 2 Hi-Speed

  • Ports

    1x USB-A Host
    2x Charging CDP USB-A 0.5A

  • Extensions (SnapLink)

    +5VDC
    2x G394USB Host
    6-Position Spring-Loaded Connector

  • DC Jack

    5 - 28VDC

  • V-Lock

    14.4 - 14.8VDC - 26VDC

  • PoE-PD

    48VDC
    IEEE 802.3af-2002 Type 1
    13W

Operating Conditions

Jump to...
  • Storage Temperature

    Min: -22 Degree F (-30 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 158 Degree F (70 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (L x W x H)

    8.66 x 5.6 x 3" (220 x 144 x 77mm)

  • Weight

    31.4 oz (890g)

About Exalux CONNECT+

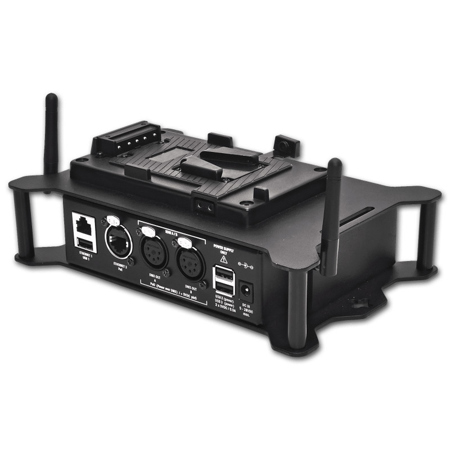

When it comes to innovative, high-quality, and user-friendly lighting control, the CONNECT+ Dual Band Wi-Fi to DMX Gateway Basic Kit by Exalux stands out. This compact and durable device is designed to act as a Wi-Fi to DMX gateway, enabling wireless control of lighting and other DMX devices.

The CONNECT+ is a dual-band Wi-Fi to DMX gateway that facilitates wireless lighting control via any Art-net compatible app. It boasts compatibility with most DMX apps, including BlackOut, DMX CONNECT+, and Luminair, making it one of the most versatile Wi-Fi to DMX gateways available.

This device is equipped with a high-performance dual-band (2.4Ghz+5Ghz) MiMo Wi-Fi Access point, ensuring reliable and responsive connectivity between your iPad and the CONNECT+. It also features a mode that automatically selects the clearest frequency band, reducing the risk of interference and enhancing device performance.

The CONNECT+ allows for wireless scalability. You can connect your EXALUX CONNECT TX100N wireless DMX transmitters to the XLR 5 outputs to create a wireless DMX link between your iPad and your lighting fixtures. The device can manage two DMX universes without the need for an additional interface, catering to the needs of the most complex fixtures.

Fully compatible with popular apps like BlackOut and Luminair, the CONNECT+ allows you to maximize the potential of these applications. It can also be powered via an Ethernet cable using a PoE injector, making installation easier and more flexible.

The CONNECT+ is also Philips HUE ready. Simply connect your Philips HUE Bridge to one of the RJ45 ports of the EXALUX CONNECT+ and control your Philips HUE bulbs with your iPad.

The device's firmware can be updated using a USB stick, ensuring that you always have access to the latest improvements. It also features a tiny DMX recorder, allowing you to record a small sequence from the iPad and play it back later.

For maximum security, the CONNECT+ supports a wide range of Wi-Fi protection such as WPA2. The settings of the unit can be locked and saved on a USB key, making it especially convenient for rental companies.

With its wide supply range (+5 to 28VDC), the CONNECT+ can be powered with a V-Lock battery, an external PSU, or a PoE Injector. It is compliant with the new 26VDC V-Lock battery standards.

The CONNECT+ also offers a Wi-Fi mode for use with an iPad or an Android tablet, a pin code lock for restricting access to advanced settings, and a "Save & Restore" feature for saving settings.

In summary, the CONNECT+ Dual Band Wi-Fi to DMX Gateway Basic Kit is a versatile, reliable, and user-friendly solution for wireless lighting control.

Exalux CONNECT+ Features

  • Built-in dual band Wi-Fi MiMo access point
  • Built-in dual universe DMX node
  • Built-in DMX recorder
  • Built-in Ethernet Switch
  • RDM Compliant
  • Compatible with any DMX Lighting device or controller
  • Multiple XLR outputs for wired DMX distribution
  • Multiple RJ45 ports for Ethernet distribution
  • V-LOCK battery / DC5-24V powered
  • Power Over Ethernet (PoE)
  • Firmware upgrade through USB port
  • Power over DMX (PoD) feature on DMX outputs
  • Ready for the future thanks to the SnapLink Extension port

Key Features

  • Seamlessly integrate with your lighting setup using the CONNECT+ DMX gateway.
  • Enjoy dual-band Wi-Fi for robust, reliable wireless DMX control on any stage.
  • Effortlessly manage complex lighting designs with Art-Net 4 and DMX512A support.
  • Record basic DMX sequences directly with this versatile lighting interface.
  • Power your lights via DC jack, V-Lock battery, or PoE for ultimate flexibility.
  • Use the intuitive color TFT display for easy setup and real-time DMX monitoring.

What's in the box:

  • Exalux CONNECT+ Dual Band Wi-Fi to DMX Gateway
  • 24W/24V Power Supply Unit
  • Adapter Plugs
  • Exalux 1 Year Limited Warranty
