Exalux CONNECT+ Dual Band Wi-Fi to DMX Gateway Kit with TX100N Wireless DMX Transmitter

SKU: ELXCNT003002 MFR: CNT.003.002
Earn VIP Reward Points

Key Features

  • Seamlessly transmit DMX lighting control signals wirelessly with the TX100N transmitter.
  • Enjoy dual-band Wi-Fi for reliable DMX gateway connectivity at any event or venue.
  • Control your lights via Art-Net/DMX node, plus basic DMX recorder functionality included.
  • Easily manage settings with the color TFT display and user-friendly backlit buttons.
  • Expand your system using the USB interface for firmware upgrades and device charging.
  • This CONNECT+ kit offers robust DMX interface, ensuring pro-level lighting setups.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Exalux CONNECT+ Specifications

CONNECT+: Features

CONNECT+: Features

Jump to...
  • Power

    DCJack
    V-Lock Battery
    PoE-PD
    PoD-PSE Output

  • Interface

    Color TFT Display (/w Buttons)
    LED Indicators
    Backlit Buttons

  • Supported protocols

    Art-Net 4
    DMX512A / RDM

  • Network

    Wi-Fi Acces Point (2.4GHz) / Wi-Fi (5GHz)
    10/100Mbps Ethernet Switch

  • DMX

    Art-Net/DMX Nod
    Basic DMX Recorder

  • Others

    Backup/Restore Settings (USB Flash Drive)
    Display Backlight Settings (Level & Screen Saver)
    Security Restrictions (Pin Code Protected)
    Firmware Upgrade via USB Flash Drive (Not Provided)

CONNECT+: Technical

Jump to...
  • Power Connection

    2 x 5.5mm DC jack

  • Interface

    Color TFT Display (/w Buttons)
    LED Indicators
    Backlit Buttons

  • Power Consumption

    12W max (20W Max with Extension)

  • Housing / Mounting

    Aluminum
    Black Painting
    Magnetic Rubber Feet M10

  • IP Rating

    IP20

  • Certifications

    CE, RoHS

CONNECT+: DMX Interface

Jump to...
  • Protocol

    DMX512-A

  • Universe

    2 (One Per Output)

  • DMX Frame Rate

    0.8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    2x 5 Pins Female

CONNECT+: Wireless Interface

Jump to...
  • Standard

    IEEE 802.11 a/b/g/n

  • Frequency

    Wi-Fi (2.4GHz): 2.412 - 2.484 GHz (13 ch)
    Wi-Fi (5GHz): 5.180 - 5.845 GHz (35 ch)

  • Antenna

    Whip Hinged Antenna
    50 Ohm
    Female RP-SMA (x2)

  • RF Output / Sensitivity

    17 dBm

  • Range

    Wi-Fi (2.4GHz) 328' (100m)
    Wi-Fi (5GHz) 164' (50m)

CONNECT+: Ethernet Interface

Jump to...
  • Standard

    IEEE 802.3 10/100 Mbps

  • Ports

    1x RJ45 8P/8C
    1x Neutrik EtherCON

CONNECT+: USB Interface

Jump to...
  • Standard

    USB 2 Hi-Speed

  • Ports

    1x USB-A Host
    2x Charging CDP USB-A 0.5A

  • Extensions (SnapLink)

    +5VDC
    2x G394USB Host
    6-Position Spring-Loaded Connector

CONNECT+: Power

Jump to...
  • DC Jack

    5 - 28VDC

  • V-Lock

    14.4 - 14.8VDC - 26VDC

  • PoE-PD

    48VDC
    IEEE 802.3af-2002 Type 1
    13W

CONNECT+: Operating Conditions

Jump to...
  • Storage Temperature

    Min: -22 Degree F (-30 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 158 Degree F (70 Degree C)

CONNECT+: Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

CONNECT+: Physical

Jump to...
  • Dimensions (L x W x H)

    8.66 x 5.6 x 3" (220 x 144 x 77mm)

  • Weight

    31.4 oz (890g)

TX100N Transmitter: Technical

Jump to...
  • Power Connection

    2 x 5.5mm DC jack

  • Interface

    Unlink (Switch)
    Power
    Paired
    DMX Status(LED)

  • Power Consumption

    1.5W

  • Housing / Mounting

    Aluminum / M10

  • IP Rating

    IP30

  • Certifications

    CE, RoHS

TX100N Transmitter: Operating Conditions

Jump to...
  • Input Voltage

    Min: 4.5VDC
    Typ: 5VDC
    Max: 26VDC

  • Storage Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 167 Degree F (75 Degree C)

  • Operating Temperature

    Min: 14 Degree F (-10 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 131 Degree F (55 Degree C)

TX100N Transmitter: Radio Interface

Jump to...
  • Standard / Technology

    Lumen Radio CRMX

  • Frequency

    2.402 - 2.480 GHz

  • Antenna

    Omnidirectional
    2.4GHZ 2dBi
    SMA

  • RF Output

    20 dBm (100mW)

  • RF Modulation

    GFSK

  • Range

    1640-3280' (500-1000m) (Depending on the Transmitter and The Environment)

  • Protocol

    DMX512-A

TX100N Transmitter: DMX Interface

Jump to...
  • Universe Support

    1

  • DMX Frame Rate

    0.8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    Neutrik XLR 5 Pins Female

TX100N Transmitter: Physical

Jump to...
  • Dimensions

    26 x 43 x 112mm (With M10 bracket, without antenna)

  • Weight

    6.5 oz (185g)

About Exalux CONNECT+

When it comes to advanced wireless lighting control, the CONNECT+ Dual Band Wi-Fi to DMX Gateway Kit with TX100N Wireless DMX Transmitter by EXALUX is a game-changer. This comprehensive kit is designed for discerning gaffers seeking a seamless solution for remote control of Lumen Radio CRMX compatible lighting fixtures via an iPad.

The CONNECT+ kit offers full wireless control of all Lumen Radio CRMX wireless products, making it a versatile tool for lighting professionals. Encased in a robust and waterproof shell, this kit is designed to withstand the rigors of both studio and on-location work.

The CONNECT+ Dual Band Wi-Fi to DMX Gateway is a sophisticated device that enables wireless lighting control via any Art-net compatible app. It's compatible with a wide range of DMX Apps including BlackOut, DMX CONNECT+, and Luminair, making it one of the most versatile Wi-Fi to DMX gateways on the market.

This kit also includes the TX100N Wireless DMX Transmitter, a compact device that can be connected directly to the CONNECT+ or positioned a few meters away using a specific DMX cable. This transmitter allows you to control up to two DMX universes in wireless mode, providing unparalleled flexibility in lighting control.

The CONNECT+ Gateway features a high-performance dual band (2.4Ghz+5Ghz) MiMo Wi-Fi Access point, ensuring reliable and responsive connectivity between your iPad and your lighting fixtures. It also includes a mode for automatic selection of the clearest frequency band, ensuring optimal performance in any environment.

The CONNECT+ Gateway is also fully compatible with popular apps such as BlackOut and Luminair, and can be powered via an Ethernet cable using a PoE injector. This future-oriented power supply mode allows for flexible installation without power supply constraints.

The CONNECT+ Gateway also supports Philips HUE, allowing you to control your Philips HUE bulbs with your iPad. Additionally, it features a tiny DMX recorder for recording small sequences from the iPad for later playback.

The CONNECT+ Gateway also supports a wide range of Wi-Fi protection such as WPA2 to ensure maximum security. Its settings can be locked and saved on a USB key, making it an ideal solution for rental companies.

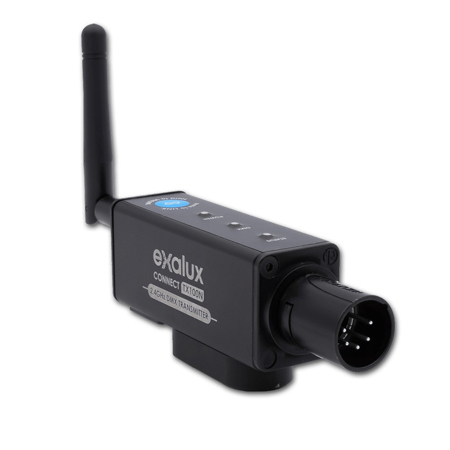

The TX100N Wireless DMX Transmitter, included in the kit, is an ultra-compact device designed for field use. It features a unibody enclosure milled from a block of aluminum for durability, and a removable antenna for customizable range. This transmitter is fully compliant with all Lumen Radio CRMX receivers, such as RX100S and RX200N.

In summary, the CONNECT+ Dual Band Wi-Fi to DMX Gateway Kit with TX100N Wireless DMX Transmitter is a comprehensive, versatile, and reliable solution for wireless lighting control. Whether you're in the studio or on location, this kit provides the advanced functionality and flexibility you need to achieve the perfect lighting setup.

Exalux CONNECT+ Features

  • CONNECT+ Features
  • Built-in dual band Wi-Fi MiMo access point
  • Built-in dual universe DMX node
  • Built-in DMX recorder
  • Built-in Ethernet Switch
  • TX100N Transmitter Features
  • Built-in Lumen Radio CRMX transmitter
  • 1 DMX Universe
  • External DC / PoD power mode

Key Features

  • Seamlessly transmit DMX lighting control signals wirelessly with the TX100N transmitter.
  • Enjoy dual-band Wi-Fi for reliable DMX gateway connectivity at any event or venue.
  • Control your lights via Art-Net/DMX node, plus basic DMX recorder functionality included.
  • Easily manage settings with the color TFT display and user-friendly backlit buttons.
  • Expand your system using the USB interface for firmware upgrades and device charging.
  • This CONNECT+ kit offers robust DMX interface, ensuring pro-level lighting setups.

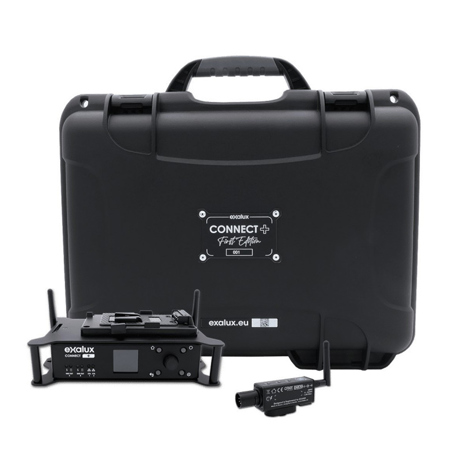

What's in the box:

  • Exalux CONNECT+ Dual Band Wi-Fi to DMX Gateway
  • TX100N Wireless DMX Transmitter
  • 24W/24V Power Supply Unit
  • Adapter Plugs
  • 5-Pins DMX-Pod Cable
  • Protective Case
  • Exalux 1 Year Limited Warranty
