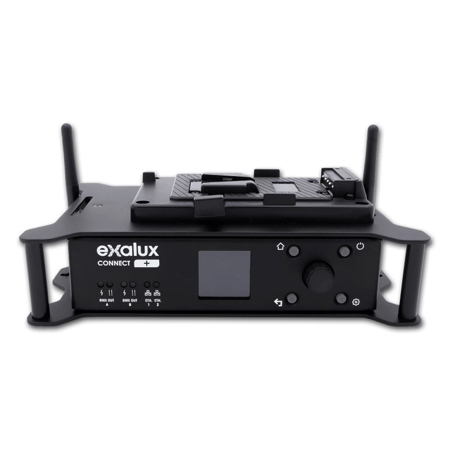

Exalux CONNECT+ Dual Band Wi-Fi to DMX Gateway Kit with 2x TX100N Wireless DMX Transmitter

SKU: ELXCNT003003 MFR: CNT.003.003
Earn VIP Reward Points

Key Features

  • Seamlessly manage your DJ lighting with the Exalux CONNECT+ DMX gateway kit.
  • Dual-band Wi-Fi ensures robust, interference-free wireless DMX control for lighting.
  • Two TX100N wireless DMX transmitters offer extended range for complex lighting setups.
  • Effortlessly control Art-Net/DMX nodes using the intuitive color TFT display interface.
  • Use the basic DMX recorder to save and replay lighting sequences for consistent shows.
  • Backup and restore settings via USB for quick setup at different event locations.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Exalux CONNECT+ Specifications

CONNECT+: Features

CONNECT+: Features

Jump to...
  • Power

    DCJack
    V-Lock Battery
    PoE-PD
    PoD-PSE Output

  • Interface

    Color TFT Display (/w Buttons)
    LED Indicators
    Backlit Buttons

  • Supported protocols

    Art-Net 4
    DMX512A / RDM

  • Network

    Wi-Fi Acces Point (2.4GHz) / Wi-Fi (5GHz)
    10/100Mbps Ethernet Switch

  • DMX

    Art-Net/DMX Nod
    Basic DMX Recorder

  • Others

    Backup/Restore Settings (USB Flash Drive)
    Display Backlight Settings (Level & Screen Saver)
    Security Restrictions (Pin Code Protected)
    Firmware Upgrade via USB Flash Drive (Not Provided)

CONNECT+: Technical

Jump to...
  • Power Connection

    2 x 5.5mm DC jack

  • Interface

    Color TFT Display (/w Buttons)
    LED Indicators
    Backlit Buttons

  • Power Consumption

    12W max (20W Max with Extension)

  • Housing / Mounting

    Aluminum
    Black Painting
    Magnetic Rubber Feet M10

  • IP Rating

    IP20

  • Certifications

    CE, RoHS

CONNECT+: DMX Interface

Jump to...
  • Protocol

    DMX512-A

  • Universe

    2 (One Per Output)

  • DMX Frame Rate

    0.8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    2x 5 Pins Female

CONNECT+: Wireless Interface

Jump to...
  • Standard

    IEEE 802.11 a/b/g/n

  • Frequency

    Wi-Fi (2.4GHz): 2.412 - 2.484 GHz (13 ch)
    Wi-Fi (5GHz): 5.180 - 5.845 GHz (35 ch)

  • Antenna

    Whip Hinged Antenna
    50 Ohm
    Female RP-SMA (x2)

  • RF Output / Sensitivity

    17 dBm

  • Range

    Wi-Fi (2.4GHz) 328' (100m)
    Wi-Fi (5GHz) 164' (50m)

CONNECT+: Ethernet Interface

Jump to...
  • Standard

    IEEE 802.3 10/100 Mbps

  • Ports

    1x RJ45 8P/8C
    1x Neutrik EtherCON

CONNECT+: USB Interface

Jump to...
  • Standard

    USB 2 Hi-Speed

  • Ports

    1x USB-A Host
    2x Charging CDP USB-A 0.5A

  • Extensions (SnapLink)

    +5VDC
    2x G394USB Host
    6-Position Spring-Loaded Connector

CONNECT+: Power

Jump to...
  • DC Jack

    5 - 28VDC

  • V-Lock

    14.4 - 14.8VDC - 26VDC

  • PoE-PD

    48VDC
    IEEE 802.3af-2002 Type 1
    13W

CONNECT+: Operating Conditions

Jump to...
  • Storage Temperature

    Min: -22 Degree F (-30 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 158 Degree F (70 Degree C)

CONNECT+: Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

CONNECT+: Physical

Jump to...
  • Dimensions (L x W x H)

    8.66 x 5.6 x 3" (220 x 144 x 77mm)

  • Weight

    31.4 oz (890g)

TX100N Transmitter: Technical

Jump to...
  • Power Connection

    2 x 5.5mm DC jack

  • Interface

    Unlink (Switch)
    Power
    Paired
    DMX Status(LED)

  • Power Consumption

    1.5W

  • Housing / Mounting

    Aluminum / M10

  • IP Rating

    IP30

  • Certifications

    CE, RoHS

TX100N Transmitter: Operating Conditions

Jump to...
  • Input Voltage

    Min: 4.5VDC
    Typ: 5VDC
    Max: 26VDC

  • Storage Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 167 Degree F (75 Degree C)

  • Operating Temperature

    Min: 14 Degree F (-10 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 131 Degree F (55 Degree C)

TX100N Transmitter: Radio Interface

Jump to...
  • Standard / Technology

    Lumen Radio CRMX

  • Frequency

    2.402 - 2.480 GHz

  • Antenna

    Omnidirectional
    2.4GHZ 2dBi
    SMA

  • RF Output

    20 dBm (100mW)

  • RF Modulation

    GFSK

  • Range

    1640-3280' (500-1000m) (Depending on the Transmitter and The Environment)

  • Protocol

    DMX512-A

TX100N Transmitter: DMX Interface

Jump to...
  • Universe Support

    1

  • DMX Frame Rate

    0.8 - 830Hz

  • End to End Latency

    < 5ms

  • DMX Output

    Neutrik XLR 5 Pins Female

TX100N Transmitter: Physical

Jump to...
  • Dimensions

    26 x 43 x 112mm (With M10 bracket, without antenna)

  • Weight

    6.5 oz (185g)

About Exalux CONNECT+

If you're a professional gaffer seeking a comprehensive, user-friendly solution for remote lighting control, look no further than the CONNECT+ Dual Band Wi-Fi to DMX Gateway Kit with 2x TX100N Wireless DMX Transmitter. This high-quality kit, manufactured by the reputable brand EXALUX, is designed to provide seamless, wireless control of Lumen Radio CRMX compatible lighting fixtures using an iPad.

The kit includes a CONNECT+ Dual Band Wi-Fi to DMX Gateway and two TX100N wireless DMX transmitters, offering you the flexibility to manage complex lighting setups with ease. The gateway is a dual band Wi-Fi to DMX gateway that facilitates wireless lighting control via Art-net compatible apps. It's compatible with most DMX apps, including BlackOut, DMX CONNECT+, and Luminair, making it one of the most versatile Wi-Fi to DMX gateways on the market.

The TX100N transmitters can be connected directly to the CONNECT+ or positioned a few meters away using a specific DMX cable, allowing you to control up to 2 DMX universes in wireless mode. The innovative EXALUX SnapLink extension port enables easy addition of new features such as a DMX splitter or DMX recorder.

The CONNECT+ Gateway features a high-performance dual band (2.4Ghz+5Ghz) MiMo Wi-Fi Access point, ensuring reliable and responsive connectivity between your iPad and your CONNECT+. It also has a mode that automatically selects the clearest frequency band, ensuring optimal performance even in noisy environments.

The CONNECT+ Gateway is also future-oriented, with the ability to be powered via an Ethernet cable using a PoE injector. This eliminates power supply constraints and makes it particularly useful if you're using the CONNECT+ as an Art-Net Nod with a live hardware console.

The CONNECT+ Gateway is also Philips HUE ready, allowing you to control your Philips HUE bulbs with your iPad. It's firmware can be updated using a USB stick, ensuring you always have access to the latest improvements.

The CONNECT+ Dual Band Wi-Fi to DMX Gateway Kit with 2x TX100N Wireless DMX Transmitter is not just a product, it's a comprehensive solution for all your wireless lighting control needs. Whether you're controlling your lighting fixtures with an iPad or an Art-Net/sACN console, controlling HUE lamps, or NYX lamps, this kit has you covered.

Exalux CONNECT+ Features

  • CONNECT+ Features
  • Built-in dual band Wi-Fi MiMo access point
  • Built-in dual universe DMX node
  • Built-in DMX recorder
  • Built-in Ethernet Switch
  • TX100N Transmitter Features
  • Built-in Lumen Radio CRMX transmitter
  • 1 DMX Universe
  • External DC / PoD power mode

Key Features

  • Seamlessly manage your DJ lighting with the Exalux CONNECT+ DMX gateway kit.
  • Dual-band Wi-Fi ensures robust, interference-free wireless DMX control for lighting.
  • Two TX100N wireless DMX transmitters offer extended range for complex lighting setups.
  • Effortlessly control Art-Net/DMX nodes using the intuitive color TFT display interface.
  • Use the basic DMX recorder to save and replay lighting sequences for consistent shows.
  • Backup and restore settings via USB for quick setup at different event locations.

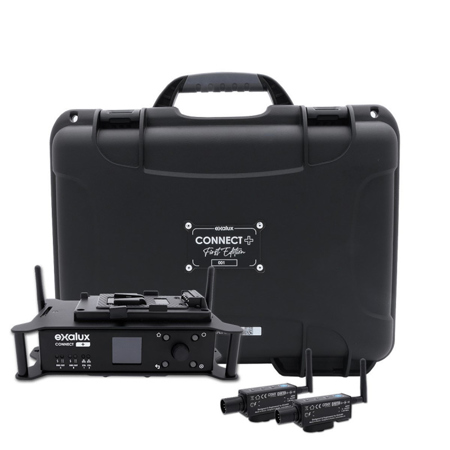

What's in the box:

  • Exalux CONNECT+ Dual Band Wi-Fi to DMX Gateway
  • 2x TX100N Wireless DMX Transmitter
  • 24W/24V Power Supply Unit
  • Adapter Plugs
  • 2x 5-Pins DMX-Pod Cable
  • Protective Case
  • Exalux 1 Year Limited Warranty
