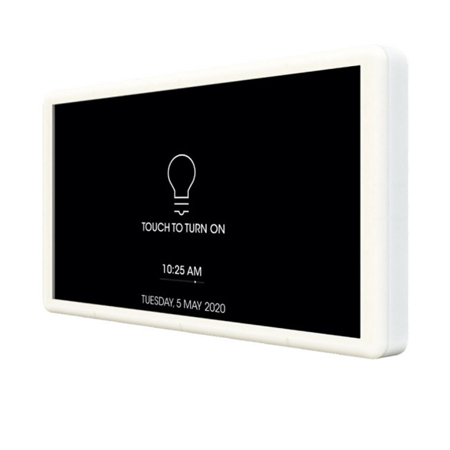

Exalux Control HMI 5" Wall-Mount Touch Controller

Exalux Control HMI 5" Wall-Mount Touch Controller

SKU: ELXCTL000005
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Exalux Control HMI 5 Specifications

Apps & Features

Apps & Features

Jump to...

  • Lighting Control

    Universal fixture controller

  • DMX Bypass

    Application enabling the re-routing of DMX input to DMX output and CRMX

  • Recorder

    Real time DMX recorder
    8 memories
    up to 4 hours recording @44Hz max

  • Memories

    2 x 8 banks memory player
    SCENES : 8 memories
    SEQUENCES : 8 memories / 1 time / loop mode

  • Zones

    Adjustment of light intensity per zone

  • Program

    Program lighting adjustments based on the time of the day

  • Update

    Firmware and DMX fixtures update trough the USB flash drive

Technical

Jump to...

  • Power / Data Connection

    RJ45

  • Display Type

    TFT 5.0'', 480x854, Capacitive Touch

  • Power Consumption

    2.1W (@24VDC)

  • Housing / Mounting

    ABS PC / Wall or Panel mountable

  • IP Rating

    IP4X

  • Certifications

    CE, RoHS

Operating Conditions

Jump to...

  • Input Voltage

    Min: 7.0VDC
    Typ: 12.0VDC
    Max: 30.0VDC

  • Storage Temperature

    Min: -22 Degree F (-30 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 158 Degree F (70 Degree C)

Physical

Jump to...

  • Dimensions (L x W x H)

    5.5 x 0.98 x 3" (140 x 25 x 76mm)

  • Weight

    4.59 oz (130g)

About Exalux Control HMI 5

EXALUX CONTROL HMI5'' is a wall/panel mount touch controller designed to control the lights in small TV or radio studios with simplicity. EXALUX CONTROL HMI 5'' offers a multi-apps interface in a compact and versatile solution. HMI5'' control panel is designed to be mounted directly onto a panel or wall, or any flat drillable surface.

Thanks to the new EXALUX X-LINK connection, only one cable is needed to power CONTROL HMI 5'' and communicate with the HUB interface. With its wide supply range (+7 to 30VDC), CONTROL HMI 5'' can be powered with the CONTROL HUB through the RJ45 connector over a long length of cable.

Control with Exalux's DNA
• CRMX by Lumen Radio inside
• DMX512 compliant
• 1 universe / 512 channels

User-centric
• Wide supply range
• Intuitive Human-Machine Interface
• Easy to set up

Exalux Control HMI 5 Features

  • Designed to control the lights in small TV or radio studios with simplicity
  • EXALUX CONTROL HMI 5'' offers a multi-apps interface in a compact and versatile solution
  • Designed to be mounted directly onto a panel or wall

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Designed to control the lights in small TV or radio studios with simplicity
  • EXALUX CONTROL HMI 5'' offers a multi-apps interface in a compact and versatile solution
  • Designed to be mounted directly onto a panel or wall

What's in the box:

  • Exalux Control HMI 5" Wall-Mount Touch Controller
  • Exalux 1 Year Limited Warranty
