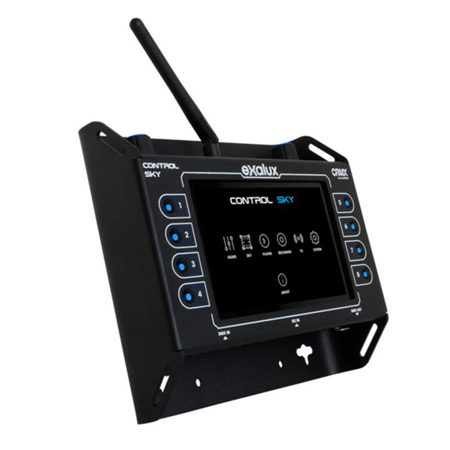

Exalux Control Sky Ultimate Starter Kit

SKU: ELXCTL002004

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Exalux Control Sky Ultimate Specifications

Technical

Technical

Jump to...
  • Display

    TFT 5'' (127mm), 800 x 480 pixels, Capacitive Touch, Super bright

  • Control

    Master & settings (knobs), Memory store/restore, CMRX Link, Black-out, Lock

  • DMX In/Out

    Input: Neutrik XLR 5 pins Male
    Output: Neutrik XLR 5 pins Female

  • Power Consumption

    Min: 2.1W (Screen Off)
    MAX: 4.2W (Screen & CRMX On)
    STANDBY: 0.025W

  • Power Input

    Neutrik XLR 4 pins (10-24VDC)
    Micro USB (5VDC)

  • Housing /Construction

    Aluminum

  • IP Rating

    IP30

  • Certifications

    CE, RoHS

Radio Interface

Jump to...
  • Standard / technology

    CRMX by Lumen Radio

  • Frequency

    2,402 - 2,480 GHz

  • Antenna connector

    RP-SMA (female)

  • RF output

    20 dBm (100mW)

  • RF modulation

    GFSK

  • Range

    500-1000m

DMX Interface

Jump to...
  • Protocol

    DMX512-A

  • Universe support

    1

  • DMX input

    Neutrik XLR 5 pins male

  • DMX output

    Neutrik XLR 5 pins femaleInput Voltage (USB)Min: 4.5VDC
    Typ: 5VDC
    Max: 5.5VDC

Operating Condition

Jump to...
  • Input Voltage (USB)

    Min: 4.5VDC
    Typ: 5VDC
    Max: 5.5VDC

  • Input Voltage (XLR4)

    Min: 10VDC
    Typ: 14VDC
    Max: 24VDC

  • Storage Temperature

    Min: -11 Degree F (-30 Degree C)
    Max: 176 Degree F (80 Degree C)

  • Operating Temperature

    Min: -4 Degree F (-20 Degree C)
    Typ: 77 Degree F (25 Degree C)
    Max: 140 Degree F (60 Degree C)

Physical

Jump to...
  • Dimensions

    7.08 x 6.06 x 1.96" (180 x 154 x 50mm)

  • Weight

    24.69 oz (700g) (without battery)

About Exalux Control Sky Ultimate

Exalux Control Sky is a 5-in-1 wireless DMX controller especially designed to control up to 20 Skypanels with sense and simplicity.

Exalux Control Sky offers up to 5 DMX applications in a single and compact box that can be powered with an external power supply (10-24vdc), a v-lock battery (14,4vdc) or a Power-bank (5vdc).

Control Sky includes the sky app which allows you to control up to 20 Arri Skypanel fixtures (DMX mode 30) in a simple and intuitive way. Control Sky also includes the TX app that allows to use the device as a CRMX transmitter.

Control Sky works perfectly with the Exalux Connect CRMX family such as RX100 and RX100s wireless receivers. Control Sky also works perfectly with other CRMX devices available on the market.

Exalux Control Sky Ultimate Features

  • 5-in-1 tools : SkyPanel controller, DMX Console, CRMX Transmitter, DMX recorder, DMX Player
  • 1 DMX universe
  • 8 tact switches to save/reload memories
  • Black out function
  • Lock / unlock function
  • Runs up to 7h with a 10Ah/36Wh Power-Bank
  • Fully compatible with Exalux connect
  • Able to control up to 20 SkyPanel

Key Features

  • 5-in-1 tools : SkyPanel controller, DMX Console, CRMX Transmitter, DMX recorder, DMX Player
  • 1 DMX universe
  • 8 tact switches to save/reload memories
  • Black out function
  • Lock / unlock function
  • Runs up to 7h with a 10Ah/36Wh Power-Bank

What's in the box:

  • Control Sky Ultimate
  • RX100 Receiver
  • 4-Pin XLR to D-TAP
  • Ravpower Power-Bank (36Wh 5VDC) with USB Cables
  • Ravpower Charger
  • Adjustable Neck Lanyard
  • Transport Bag
  • Exalux 1 Year Limited Warranty
