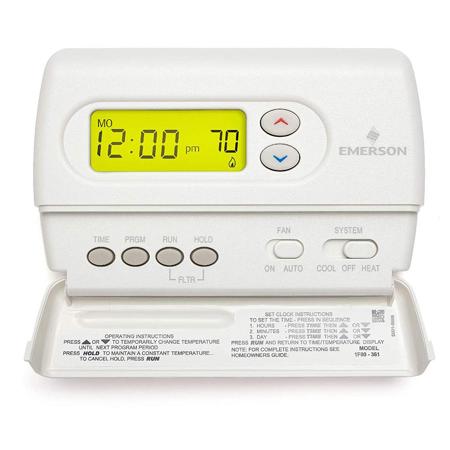

Emerson Electric 80 Series Programmable Digital Thermostat

SKU: EM1F80361

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Emerson Electric 80 Series Specifications

Electrical

Electrical

Jump to...
  • Electrical Rating

    8 to 30 VAC 50/60 Hz. or D.C.
    0.05 to 1.0 Amps (Load per terminal)
    1.5 Amps Maximum Total Load (All terminals combined)

Thermal

Jump to...
  • Setpoint Temperature Range

    45 Degree F to 90 Degree F (7 Degree C to 32 Degree C)

  • Operating Ambient Temperature Range

    32 Degree F to 105 Degree F (0 Degree C to 40 Degree C)

  • Operating Humidity Range

    0 to 90% RH (non-condensing)

Applications

Jump to...
  • Applications

    For use with:
    Standard heat/cool or heat only systems
    Electric heat systems
    Gas or oil fired systems
    Gas systems with intermittent ignition devices (I.I.D.)and/or vent dampers
    Hydronic (hot water or steam) systems
    Single-stage heat pump systems (no auxiliary heat)
    Millivolt systems

    Do Not Use With:
    Multi-stage systems
    Systems exceeding 30 VAC and 1.5 amps
    3-wire zoned hydronic heating systems

  • UPC Code

    786710520778

About Emerson Electric 80 Series

Easy-to-use thermostat with reliable performance

5-1-1 day programmable schedule
The Emerson 80-series programmable thermostat lets you set a different schedule for weekdays, Saturdays and Sundays, customized to your needs. You can even start with one of the pre-programmed schedules and quickly adapt it to your unique schedule. What's more, you will love this thermostat for its versatile features like filter change indicator, permanent memory backup and backlit LCD display.

Reliable temperature control
Did you know that most thermostats have an 'acceptable range' of plus or minus 3-degrees? With its precision temperature accuracy of 1 degree, this thermostat gives you the option of keeping your home temperatures within one degree of where you set it. It's time to start expecting more from your thermostat.

Compatible with single-stage systems
This thermostat is designed to work with existing wires in your home, and is compatible with single-stage systems. This thermostat works with single-stage gas, oil, electric heat, millivolt heating and heat pump systems (without auxiliary).

This thermostat is not compatible with the following systems:
• Multi-stage gas, oil, electric systems
• Line voltage (110V/220 V baseboard heating) and 3-wire zone valve systems

Save wasteful heating and cooling costs
Now you can enjoy comfortable temperatures in your home without breaking the bank. When you use this thermostat with the programmable heating and cooling feature, you can save on HVAC-related energy costs.

Emerson Electric 80 Series Features

  • Separate 5-day (weekday), 1-day (Sat) and 1-day (Sun) pro-gramming with four separate time/temperature periods per day
  • Simultaneous heat and cool program storage
  • Preprogrammed temperature control
  • Backlit display
  • LCD continuously displays setpoint, and alternately dis-plays time and room temperature
  • Temperature override until next program period
  • Manual program override (HOLD temperature)
  • Temporary HOLD
  • Degree F/ Degree C convertibility
  • Temperature range 45 Degree to 90 Degree F
  • RC, RH, C, W, Y, G , O and B terminals
  • Optional C terminal (Dual Power option)
  • B and O terminals for single stage heat pumps (no auxiliary heat) or damper operation
  • Program storage in case of power loss
  • 2 "AA" alkaline batteries included

Key Features

  • Simultaneous heat and cool program storage
  • Preprogrammed temperature control
  • Backlit display
  • LCD continuously displays setpoint, and alternately dis-plays time and room temperature
  • Temperature override until next program period
  • Manual program override (HOLD temperature)

What's in the box:

  • 80 Series Programmable Digital Thermostat
  • 2x Mounting Screws and Wall Anchors
  • 2x AA Batteries
  • Terminal Wire Label Stickers
  • Installation Instructions
  • Emerson Electric 5 Year Warranty
