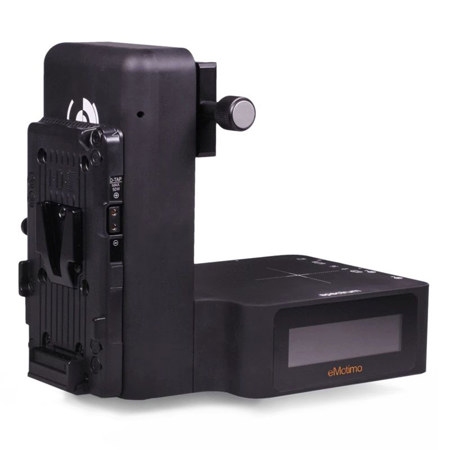

eMotimo Spectrum ST4 + Fz Pro Bundle with Dana Dolly Integration, V-Mount Battery Plate

SKU: EM7VMLCDDINT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is included in the Spectrum ST4 + Fz Pro Bundle with Dana Dolly Integration and V-Mount Battery Plate?

The bundle includes a Spectrum ST4 motorized system, a Fz Pro controller, a Dana Dolly Integration kit, and a V-Mount Battery Plate. It also comes with a Universal L-Bracket, a Forward/Backwards Adjustment Plate & Clamp, an Fz (Focus/Zoom) Motor, and a large hard case for storage and transportation.

What is the weight-to-payload ratio of the Spectrum ST4?

The Spectrum ST4 boasts an impressive weight-to-payload ratio, making it a powerful tool for handling heavy payloads up to 15lbs, despite its compact and lightweight design.

What is the Interview Ping-Pong Mode on the Spectrum ST4?

The Interview Ping-Pong Mode allows you to set up a simple A-B continuous move to serve as your robotic second camera. With the addition of a focus module, you can keep your subjects sharp during pushes and pulls, adding a dynamic movement to your interviews with minimal effort.

How does the Fz motor enhance the Spectrum ST4?

The Fz motor is a light yet powerful addition to your Spectrum ST4. It mounts easily to a 15mm rail system and requires no new controller - just plug it into the Spectrum's M4 motor port, and your focus is ready for live or programmed moves coordinated with your other controlled axis.

What is the purpose of the large hard case included in the bundle?

The large hard case provides a safe and convenient way to store and transport your Spectrum ST4, Dana Dolly or MYT integration kit, and Spectrum accessories. It ensures your equipment is protected during travel and storage.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

eMotimo Spectrum ST4 + Fz Pro Bundle with Dana Dolly, V-Mount Battery Plate Specifications

  • Movement

    4 axis motion controller - Pan/Tilt/Focus and Slide on Dana Dolly

  • Exposure Ramping

    Yes, compatible with 3rd party solutions

  • Speed

    Pan: up to 120 degrees/second
    Tilt: up to 60 degrees/second

  • Slider speed

    Up to 1 foot /second

  • Powering specs

    12-24VDC. Minimum 2A. 3.5A preferred. Connector: 2.1mm x 5.5mm x 12mm circular barrel connector - center positive

  • Supports

    15 lbs (6.80kg)

  • Dimensions

    7.35 x 7.3 x 5" (18.66 x 18.54 x 12.7cm)

  • Weight

    4.5 lbs (2.04kg)

About eMotimo Spectrum ST4 + Fz Pro Bundle with Dana Dolly, V-Mount Battery Plate

From professional filmmakers to passionate videographers, the Spectrum ST4 + Fz Pro Bundle with Dana Dolly Integration and V-Mount Battery Plate is a comprehensive, high-quality solution for all your filming needs. This innovative bundle, designed by the trusted brand Emotimo, combines durability and versatility, offering an all-in-one package that eliminates the need for separate purchases.

The centerpiece of this bundle is the Spectrum ST4, a powerful 4-axis motorized system that is compact yet robust. Despite its lightweight design, it boasts an impressive weight-to-payload ratio, making it a versatile tool for handling heavy payloads up to 15lbs. Its strength-to-mass ratio is unmatched, challenging you to find a more potent 4-axis solution in the market.

The Spectrum ST4 also features an Interview Ping-Pong Mode, perfect for setting up a simple A-B continuous move to serve as your robotic second camera. With the addition of a focus module, you can keep your subjects sharp during pushes and pulls, adding a dynamic movement to your interviews with minimal effort.

Programming a shot on the Spectrum ST4 is a breeze, with the ability to set up to 9 individual keyframes for your move. The internal wires and heavy-duty connectors are protected by a CNC-milled, aircraft-grade aluminum chassis, ensuring the Spectrum ST4 is built to last.

The bundle also includes a Dana Dolly Integration Kit, a Universal L-Bracket, a Forward/Backwards Adjustment Plate & Clamp, and an Fz (Focus/Zoom) Motor. These components work together to provide smooth, repeatable movements at both low and high speeds, even under changing source voltage or payload. This feature is crucial for high-end VFX shooting, ensuring no mid-shot wiggle to correct in post-production.

The Spectrum ST4 offers smooth built-in ramp control for both live and programmed shots, ensuring ultra-smooth starts and stops. This feature gives your footage a natural feel, eliminating jerky, unwanted hard stops. The Spectrum ST4 also offers superior live control through the remote, allowing for live drive of the head without any jitters or unwanted movements.

The Fz motor, light yet powerful, is a perfect addition to your Spectrum ST4. It mounts easily to a 15mm rail system and requires no new controller - just plug it into the Spectrum's M4 motor port, and your focus is ready for live or programmed moves coordinated with your other controlled axis.

Finally, the Spectrum Large Hard Case provides a safe and convenient way to store and transport your Spectrum ST4, Dana Dolly or MYT integration kit, and Spectrum accessories. This bundle is a comprehensive solution for filmmakers and videographers seeking professional, high-quality equipment for their craft.

eMotimo Spectrum ST4 + Fz Pro Bundle with Dana Dolly, V-Mount Battery Plate Features

  • Weight to Payload Ratio
  • Interview Ping-Pong Mode
  • Complex KeyFrames
  • Durable - Machined to Last
  • Completely Repeatable (Even at a High Speeds)
  • Smooth built-in ramp
  • Better Live Control

Key Features

  • Powerful 4-axis solution with a high weight-to-payload ratio, perfect for handling heavy payloads
  • Innovative Interview Ping-Pong Mode for dynamic, professional-looking interviews
  • Smooth, repeatable movements at both low and high speeds, ideal for high-end VFX shooting
  • Fz motor for enhanced focus control during live or programmed moves
  • Includes a durable, large hard case for secure storage and transportation of equipment

What's in the box:

  • eMotimo Spectrum ST4 4-Axis Motion Control Unit
  • Wireless PS4 Controller
  • Motor Pod with 21" Spectrum Cable
  • Two Belt Clamps/Belt Tensioners
  • Timing Belt (11.5')
  • Universal L-Bracket
  • Forward Back Adjustment Plate & Clamp 100mm Camera Plate
  • Fz (Focus/Zoom) Motor
  • Large SKB Custom Hard Case/Foam
  • V-Mount Battery Plate
  • USD Card/Instructions
  • Quick Release Clamp
  • Hi-Current 24VDC Wall Adapter (110-240V AC)
  • Shutter Cable
  • eMotimo 1 Year Limited Warranty
