30% Off

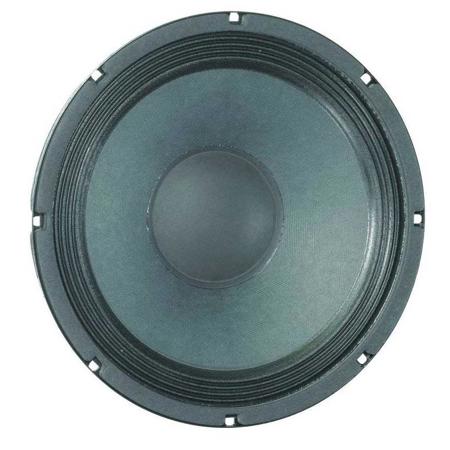

Eminence Speakers Alpha-10A 10" 150W Mid-Bass Speaker Driver, 8 Ohm

SKU: EMALPHA10A MFR: ALPHA-10A
$94.99
$134.99
Save: $40 (30%)
Earn VIP Reward Points

Key Features

  • Upgrade your amp with this 10" Eminence speaker for enhanced sound quality and clarity.
  • Experience powerful mid-bass response with a 150W driver, perfect for live performances.
  • Achieve optimal audio in sealed or vented enclosures using this versatile 8 Ohm speaker.
  • Enjoy clear, articulate sound in the 57 Hz - 4.5 kHz range with this speaker driver.
  • This durable speaker boasts a robust ferrite magnet, ensuring long-lasting performance.
  • Easy to install, this 10" speaker will bring new life to your favorite amplifier setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?ANTONIO S : Eminence is a good quality unit.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers ALPHA-10A Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 300W
    Watts: 150W

  • Resonance

    50 Hz

  • Usable Frequency Range

    57 Hz - 4.5 kHz

  • Sensitivity

    95.6 dB

  • Magnet Weight

    20 oz (567g)

  • Gap Height

    0.25" (6.4mm)

  • Voice Coil Diameter

    1.5" (38mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    50 Hz

  • DC Resistance (Re)

    5.31 Ohm

  • Coil Inductance (Le)

    0.66mH

  • Mechanical Q (Qms)

    5.21

  • Electromagnetic Q (Qes)

    0.66

  • Total Q (Qts)

    0.59

  • Compliance Equivalent Volume (Vas)

    82.2L (2.9 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    114 cc

  • Mechanical Compliance of Suspension(Cms)

    0.46mm/N

  • BL Product (BL)

    7.5 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.77 oz (22g)

  • Efficiency Bandwidth Product (EBP)

    76

  • Maximum Linear Excursion (Xmax)

    0.12" (3.2mm)

  • Surface Area of Cone (Sd)

    0.38 sq ft (355.4 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.35" (9.1mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 8.5-11.3L (0.3-0.4 cu ft)
    Vented: 28.3-53.8L (1-1.9 cu ft)

  • Driver Volume Displaced

    0.95L (0.034 cu ft)

  • Overall Diameter

    10.11" (256.8mm)

  • Baffle Hole Diameter

    9.13" (231.9mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.23" (5.8mm)

  • Mounting Holes B.C.D.

    9.6" (243.8mm)

  • Depth

    3.9" (99.1mm)

  • Net Weight

    4.5 lb (2.04kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented and extended core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

  • UPC Code

    876358000036

About Eminence Speakers ALPHA-10A

Why settle for less when you can experience superior audio quality with the Eminence Alpha-10A 10" 150W Mid-Bass Speaker Driver This high-quality, durable speaker driver is designed for professional audio mid-bass applications, making it an excellent choice for musicians, sound engineers, and audiophiles alike.

Crafted in the USA by Eminence Speakers, a brand renowned for its commitment to audio excellence, this 10" mid-bass speaker driver is engineered to deliver powerful, efficient, and reliable performance. With its 8 Ohm impedance rating, it can handle a broad spectrum of audio frequencies, ensuring a rich, balanced sound output.

Whether you're looking to replace a speaker in your musical instrument or upgrade your sound system, the Alpha-10A is designed to meet your needs. It's ideal for use in two-way sound reinforcement systems, keyboard and guitar combos, and even small sealed cabinets.

This speaker driver is not just about power; it's also about delivering a strong bass response. It's designed to work in harmony with other speakers, creating a full and balanced sound that's perfect for live performances, recording studios, and home audio systems.

Experience the difference in audio quality with the Eminence Alpha-10A 10" 150W Mid-Bass Speaker Driver. It's more than just a speaker driver; it's a testament to Eminence's dedication to sound perfection.

Eminence Speakers ALPHA-10A Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround
  • Solid composition paper dust cap

Key Features

  • Upgrade your amp with this 10" Eminence speaker for enhanced sound quality and clarity.
  • Experience powerful mid-bass response with a 150W driver, perfect for live performances.
  • Achieve optimal audio in sealed or vented enclosures using this versatile 8 Ohm speaker.
  • Enjoy clear, articulate sound in the 57 Hz - 4.5 kHz range with this speaker driver.
  • This durable speaker boasts a robust ferrite magnet, ensuring long-lasting performance.
  • Easy to install, this 10" speaker will bring new life to your favorite amplifier setup.

What's in the box:

  • Alpha-10A 10 " 150W Mid-Bass Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
