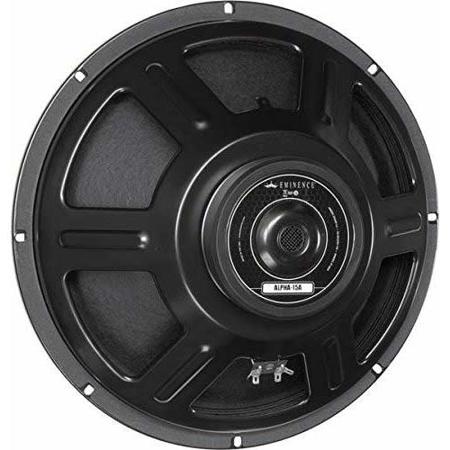

Eminence Speakers Alpha-15A 15" 200W Mid-Bass Speaker Driver, 8 Ohm

SKU: EMALPHA15A MFR: ALPHA-15A
$144.99
$174.99
Save: $30 (17%)
Earn VIP Reward Points

Key Features

  • Upgrade your amp with this Eminence Alpha-15A speaker for enhanced sound quality!
  • Experience powerful mid-bass tones with this 200W, 8 Ohm speaker driver.
  • Achieve clarity across a 46 Hz - 3.5 kHz range with this reliable speaker.
  • The Eminence 15" speaker delivers 97 dB sensitivity for excellent projection.
  • Durable pressed steel basket ensures long-lasting performance for your amplifier.
  • Perfect for sealed or vented enclosures, this speaker offers versatile use cases.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers ALPHA-15A Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    15" (381mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 400W
    Watts: 200W

  • Resonance

    41 Hz

  • Usable Frequency Range

    46 Hz - 3.5 kHz

  • Sensitivity

    97 dB

  • Magnet Weight

    25 oz (708g)

  • Gap Height

    0.25" (6.4mm)

  • Voice Coil Diameter

    1.5" (38mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    41 Hz

  • DC Resistance (Re)

    5.88 Ohm

  • Coil Inductance (Le)

    0.84mH

  • Mechanical Q (Qms)

    7.23

  • Electromagnetic Q (Qes)

    1.53

  • Total Q (Qts)

    1.26

  • Compliance Equivalent Volume (Vas)

    260L (9.18 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    325 cc

  • Mechanical Compliance of Suspension(Cms)

    0.25 mm/N

  • BL Product (BL)

    7.7 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    2.08 oz (59g)

  • Efficiency Bandwidth Product (EBP)

    27

  • Maximum Linear Excursion (Xmax)

    0.14" (3.8mm)

  • Surface Area of Cone (Sd)

    0.92 sq ft (856.3 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.33" (8.4mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 71-85L (2.5-3 cu ft)
    Vented: 106-177L (3.75-6.25 cu ft)

  • Driver Volume Displaced

    3.21L (0.113 cu ft)

  • Overall Diameter

    15.15" (384.8mm)

  • Baffle Hole Diameter

    13.87" (352.3mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    14.56" (369.8mm)

  • Depth

    5.83" (148.1mm)

  • Net Weight

    6.7 lb (3.04kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented and extended core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

  • UPC Code

    876358000050

About Eminence Speakers ALPHA-15A

Why settle for less when you can experience superior audio performance with the Eminence Alpha-15A 15" 200W Mid-Bass Speaker Driver Crafted with high-quality materials for durability and reliability, this 8 Ohm speaker driver is a powerful and effective solution for all your audio needs.

Designed for professional audio and bass guitar applications, the Alpha-15A is perfect for use as a woofer in both vented and sealed enclosures. Its robust construction and impressive 200W power handling capacity make it an excellent choice for high-powered systems, ensuring you get the most out of your audio equipment.

This mid-bass speaker driver is not just limited to professional audio applications. It's also ideal for two-way sound reinforcement systems, keyboard, and guitar combos, offering a wide range of audio frequencies for a versatile listening experience.

Proudly made in the USA by Eminence Speakers, a reputable brand known for its commitment to quality and performance, the Alpha-15A 15" speaker driver is a testament to their dedication to superior sound. Experience the difference with the Eminence Alpha-15A 15" 200W Mid-Bass Speaker Driver, your go-to choice for a reliable and high-performing audio solution.

Eminence Speakers ALPHA-15A Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented and extended pole piece
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround

Key Features

  • Upgrade your amp with this Eminence Alpha-15A speaker for enhanced sound quality!
  • Experience powerful mid-bass tones with this 200W, 8 Ohm speaker driver.
  • Achieve clarity across a 46 Hz - 3.5 kHz range with this reliable speaker.
  • The Eminence 15" speaker delivers 97 dB sensitivity for excellent projection.
  • Durable pressed steel basket ensures long-lasting performance for your amplifier.
  • Perfect for sealed or vented enclosures, this speaker offers versatile use cases.

What's in the box:

  • Alpha-15A 15 " 200W Mid-Bass Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
