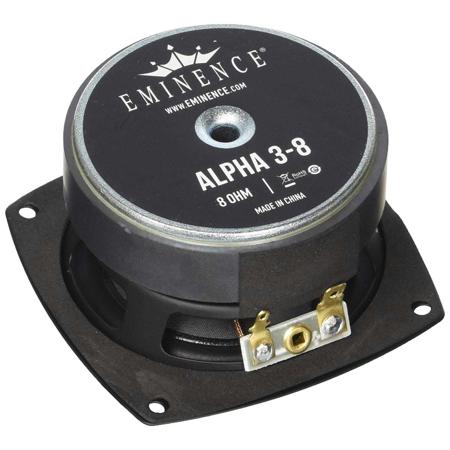

Eminence Speakers Alpha 3-8 3" 30W Full-Range Speaker Driver, 8 Ohm

SKU: EMALPHA38 MFR: ALPHA3-8
$24.99
$49.99
Save: $25 (50%)
Earn VIP Reward Points

Key Features

  • Experience full-range audio with the Eminence Alpha 3-8 speaker driver, perfect for custom builds.
  • This 3" 8-Ohm speaker delivers 30W of power, ideal for studio monitors and compact sound systems.
  • Achieve clear sound reproduction with a frequency range of 150 Hz - 20 kHz in your audio projects.
  • The paper/poly sandwich cone ensures durability and optimal sound quality for lasting performance.
  • Benefit from the Alpha 3-8's versatile design, fitting sealed or vented enclosures for flexibility.
  • Upgrade your sound with this Eminence speaker, featuring a vented core for enhanced audio clarity.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.99

2 Year

$4.99

3 Year

$8.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers ALPHA 3 Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    3" (76mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 60W
    Watts: 30W

  • Resonance

    118 Hz

  • Usable Frequency Range

    150 Hz - 20 kHz

  • Sensitivity

    88.6 dB

  • Magnet Weight

    8.3 oz (226g)

  • Gap Height

    0.1" (2.5mm)

  • Voice Coil Diameter

    0.787" (20mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    118 Hz

  • DC Resistance (Re)

    5.12 Ohm

  • Coil Inductance (Le)

    0.11mH

  • Mechanical Q (Qms)

    7.94

  • Electromagnetic Q (Qes)

    0.53

  • Total Q (Qts)

    0.5

  • Compliance Equivalent Volume (Vas)

    0.95L (0.03 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    6.9 cc

  • Mechanical Compliance of Suspension(Cms)

    0.84 mm/N

  • BL Product (BL)

    3.93 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.07 oz (2g)

  • Efficiency Bandwidth Product (EBP)

    220

  • Maximum Linear Excursion (Xmax)

    0.09" (2.4mm)

  • Surface Area of Cone (Sd)

    0.03 sq ft (28.6 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.15" (4mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 0.85-1.42L (0.03-0.05 cu ft)
    Vented: 1.42-1.98L (0.05-0.07 cu ft)

  • Driver Volume Displaced

    0.13L (0.005 cu ft)

  • Overall Diameter

    3.98" (101.1mm)

  • Baffle Hole Diameter

    3.04" (77.2mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.16" (4.1mm)

  • Mounting Holes B.C.D.

    3.63" (92.1mm)

  • Depth

    1.76" (44.6mm)

  • Net Weight

    0.9 lb (0.41kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented / Flux source cap

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper/Poly sandwich cone

  • Cone Edge Composition

    Poly cone edge

  • Dust Cap Composition

    Poly dust cap

  • UPC Code

    876358003877

About Eminence Speakers ALPHA 3

The Eminence Alpha 3-8 is a truly versatile compact full-range driver perfectly suited for tight fitting pro audio line array and column array applications. With a program power rating of 60 watts, this 3" driver utilizes an 8.3 oz ferrite magnet in conjunction with an internal neodymium bucking magnet for increased sensitivity and extends the response out to 20kHz. The highly pressed cone sandwiches paper with a layer of water-resistant polypropylene for increased stiffness and lower distortion.

Eminence Speakers ALPHA 3 Features

  • True full range response with useful output up to 20,000 Hz
  • Unique internal neodymium magnet improves efficiency and high frequency response
  • Impressive efficiency for a driver this small

Key Features

  • Experience full-range audio with the Eminence Alpha 3-8 speaker driver, perfect for custom builds.
  • This 3" 8-Ohm speaker delivers 30W of power, ideal for studio monitors and compact sound systems.
  • Achieve clear sound reproduction with a frequency range of 150 Hz - 20 kHz in your audio projects.
  • The paper/poly sandwich cone ensures durability and optimal sound quality for lasting performance.
  • Benefit from the Alpha 3-8's versatile design, fitting sealed or vented enclosures for flexibility.
  • Upgrade your sound with this Eminence speaker, featuring a vented core for enhanced audio clarity.

What's in the box:

  • Alpha 3-8 3 " 30W Full-Range Speaker Driver (8 Ohm)
  • Eminence Speaker 7 Year Limited Warranty
