33% Off

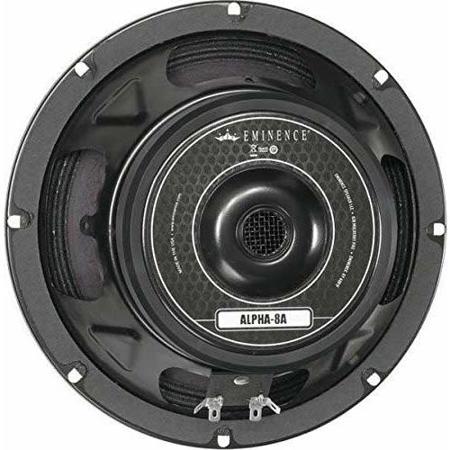

Eminence Speakers Alpha-8A 8" 125W Mid-Range Speaker Driver, 8 Ohm

SKU: EMALPHA8A MFR: ALPHA-8A
$79.99
$119.99
Save: $40 (33%)
Earn VIP Reward Points

Key Features

  • Enhance your studio monitors with the Eminence Alpha-8A mid-range speaker driver.
  • Experience clear audio: 94 dB sensitivity ensures your studio speakers perform.
  • Achieve balanced sound with a frequency response of 58 Hz - 5 kHz for monitors.
  • Upgrade your sound system with this 8" speaker, rated for 125W power handling.
  • The Alpha-8A's vented core reduces distortion, improving audio accuracy for mixing.
  • Durable steel basket build ensures lasting quality for your professional audio setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers ALPHA-8A Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    8" (203mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 250W
    Watts: 125W

  • Resonance

    73 Hz

  • Usable Frequency Range

    58 Hz - 5 kHz

  • Sensitivity

    94 dB

  • Magnet Weight

    20 oz (566g)

  • Gap Height

    0.25" (6.4mm)

  • Voice Coil Diameter

    1.5" (38mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    73 Hz

  • DC Resistance (Re)

    5.3 Ohm

  • Coil Inductance (Le)

    0.44mH

  • Mechanical Q (Qms)

    4.6

  • Electromagnetic Q (Qes)

    0.68

  • Total Q (Qts)

    0.59

  • Compliance Equivalent Volume (Vas)

    17.7L (0.63 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    67 cc

  • Mechanical Compliance of Suspension(Cms)

    0.28 mm/N

  • BL Product (BL)

    7.8 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.60 oz (17g)

  • Efficiency Bandwidth Product (EBP)

    107

  • Maximum Linear Excursion (Xmax)

    0.12" (3.2mm)

  • Surface Area of Cone (Sd)

    0.22 sq ft (210 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.27" (7.1mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 5-7L (0.18-0.25 cu ft)
    Vented: 16.7-25.5L (0.59-0.9 cu ft)

  • Driver Volume Displaced

    0.58L (0.02 cu ft)

  • Overall Diameter

    8.24" (209.3mm)

  • Baffle Hole Diameter

    7.13" (181.1mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.22" (5.6mm)

  • Mounting Holes B.C.D.

    7.75" (196.9mm)

  • Depth

    3.25" (82.6mm)

  • Net Weight

    4.3 lb (1.95kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

  • UPC Code

    876358000012

About Eminence Speakers ALPHA-8A

What you're looking at is the Eminence Alpha-8A, an 8-inch, 125W mid-range speaker driver with an 8 Ohm impedance. This high-quality audio equipment is perfect for professional audio mid-range applications when housed in a sealed cabinet. Alternatively, it can serve as a mid-bass in a vented satellite enclosure, offering versatility for different audio setups.

The Alpha-8A is not just any speaker driver; it's a PA driver, making it an excellent choice for small public address and club speaker systems. Musicians will also appreciate its performance in keyboard or guitar amplifier combos, delivering clear and powerful sound.

This product features a stamped-steel frame, a testament to its robust construction and durability. Like all Eminence products, the Alpha-8A is proudly made in the USA, ensuring top-notch quality and performance. Please note that this product comes with a 7-year manufacturer's warranty, reflecting the brand's confidence in its longevity and reliability.

In summary, the Eminence Alpha-8A 8" 125W Mid-Range Speaker Driver is a versatile, high-quality audio component that delivers exceptional sound performance in various applications. Whether you're setting up a professional audio system, a club speaker setup, or a musician's amplifier combo, the Alpha-8A is a reliable choice.

Eminence Speakers ALPHA-8A Features

  • Cloth accordian surround
  • Polyimide voice coil former
  • Ferrite magnet
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround

Key Features

  • Enhance your studio monitors with the Eminence Alpha-8A mid-range speaker driver.
  • Experience clear audio: 94 dB sensitivity ensures your studio speakers perform.
  • Achieve balanced sound with a frequency response of 58 Hz - 5 kHz for monitors.
  • Upgrade your sound system with this 8" speaker, rated for 125W power handling.
  • The Alpha-8A's vented core reduces distortion, improving audio accuracy for mixing.
  • Durable steel basket build ensures lasting quality for your professional audio setup.

What's in the box:

  • Alpha-8A 8 " 125W Mid-Range Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
