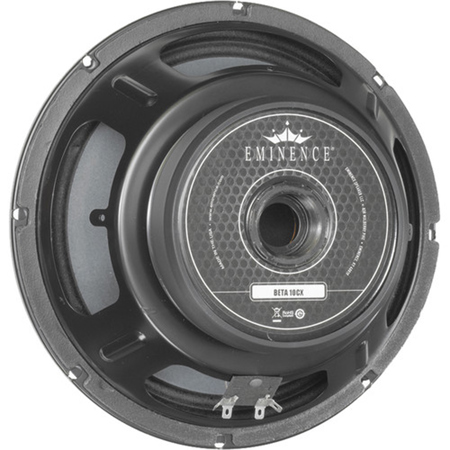

Eminence Speakers Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm
See all Eminence Speakers items
18% Off

Eminence Speakers Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm

SKU: EMBETA10CX MFR: BETA10CX
Be the first to review this itemAsk a Question
$139.99
$169.99
Save: $30 (18%)
Earn VIP Reward Points

Key Features

  • Experience sound accuracy with the Eminence Beta-10CX coaxial speaker driver.
  • Achieve optimal frequency response in your studio monitors with this 8 Ohm driver.
  • Enjoy a robust build quality, ensuring your coaxial speaker lasts for years.
  • Customize your sound with versatile connectivity options using this 250W speaker.
  • Ensure perfect impedance matching for clear audio in your professional setup.
  • Minimize unwanted low distortion, delivering pristine audio quality every time.
See More Product Details
Temporarily On Backorder?Expected Availability: 02/2026Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$15.99
2-Year Adorama Protect$23.99
3-Year Adorama Protect$35.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the intended use of the Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm?

The Beta-10CX is intended for use as a coaxial speaker driver in audio systems. It's suitable for professional audio vocal wedges, mid-bass in a sealed enclosure, or as a satellite or monitor in a vented enclosure. It's ideal for home theaters, music studios, and live sound systems.

What makes this speaker driver versatile?

The Beta-10CX is versatile due to its 10" coaxial design and 8 Ohm rating, which allows it to handle a wide range of power levels. This makes it suitable for diverse audio applications.

What does the 250W power handling mean?

The 250W power handling indicates that the Beta-10CX can handle up to 250 watts of power. This makes it a powerful choice for professional and home audio applications.

What brand is the Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm from?

The Beta-10CX is from Eminence Speakers, a reputable brand known for producing high-quality audio equipment.

Is the Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm suitable for a vented enclosure?

Yes, the Beta-10CX performs exceptionally well in a vented enclosure as a satellite or monitor.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Eminence Speakers BETA10CX Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Music Program: 500W
    Watts: 250W

  • Resonance

    49 Hz

  • Usable Frequency Range

    60 Hz - 4.0 kHz

  • Sensitivity

    94.3 dB

  • Magnet Weight

    38 oz (1.07kg)

  • Gap Height

    0.312" (7.9mm)

  • Voice Coil Diameter

    2.0" (51mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    49 Hz

  • DC Resistance (Re)

    5.48 Ohm

  • Coil Inductance (Le)

    0.67 mH

  • Mechanical Q (Qms)

    6.16

  • Electromagnetic Q (Qes)

    0.41

  • Total Q (Qts)

    0.38

  • Compliance Equivalent Volume (Vas)

    61.10L (2.16 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    172.5 cc

  • Mechanical Compliance of Suspension(Cms)

    0.37 mm/N

  • BL Product (BL)

    10.88 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    1.0" (29g)

  • Efficiency Bandwidth Product (EBP)

    120

  • Maximum Linear Excursion (Xmax)

    0.1" (5mm)

  • Surface Area of Cone (Sd)

    0.37 sq ft (344.9 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.2" (7.6mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Sealed: 14.16-42.48L (0.50-1.50 cu ft)
    Vented: 15.29-87.78L (0.54-3.10 cu ft)

  • Driver Volume Displaced

    1.17L (0.041 cu ft)

  • Overall Diameter

    10.08" (256mm)

  • Baffle Hole Diameter

    9.18'' (233.2mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25'' (6.4mm)

  • Mounting Holes B.C.D.

    9.66'' (245.4mm)

  • Depth

    3.98" (101.1mm)

  • Weight

    7.30 lb (3.31kg)

Materials of Construction

Jump to...

  • Coil Construction

    Copper voice coil

  • Coil Former

    Kapton former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Tapered Coax

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Zurette dust cap

Other

Jump to...

  • UPC Code

    876358000104

About Eminence Speakers BETA10CX

Bring your audio experience to life with the Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm. This high-quality speaker driver, crafted by the reputable Eminence Speakers, is designed to deliver powerful, clear, and reliable sound across a wide range of applications.

Ideal for professional audio vocal wedges, this durable speaker driver also excels as a mid-bass in a sealed enclosure. Its 10" coaxial design and 8 ohm rating ensure it can handle diverse power levels, making it a versatile choice for your audio needs. Whether you're setting up a home theater, a music studio, or a live sound system, the Beta-10CX is engineered to meet your high standards for sound quality.

In addition to its primary functions, this efficient speaker driver also performs exceptionally well in a vented enclosure as a satellite or monitor. The product data was meticulously calculated with the ASD:1001 driver screwed into the woofer, though not active, to ensure optimal performance.

Experience the difference that a powerful, high-quality speaker driver can make in your audio system with the Beta-10CX 10" 250W Coaxial Speaker Driver, 8 Ohm.

Eminence Speakers BETA10CX Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Extended pole piece
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround
