Eminence Speakers Beta-12LTA 12" 225W Full-Range PA Speaker Driver, 8 Ohm
See all Eminence Speakers items

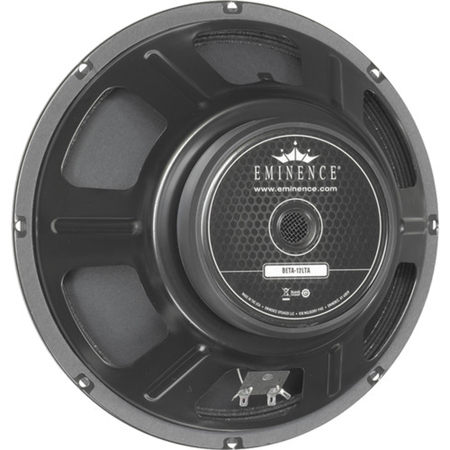

Eminence Speakers Beta-12LTA 12" 225W Full-Range PA Speaker Driver, 8 Ohm

SKU: EMBETA12LTA
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the power handling capacity of the Beta-12LTA 12" 225W Full-Range PA Speaker Driver?

The Beta-12LTA 12" 225W Full-Range PA Speaker Driver has a high power handling capacity of 225W, making it capable of handling high volume levels without distortion.

What are the possible uses of this speaker driver?

The Beta-12LTA 12" 225W Full-Range PA Speaker Driver is versatile and can be used as a woofer in small sealed monitors or as a PA woofer in a vented enclosure. It's perfect for concerts, events, and live performances.

What makes this speaker driver a reliable choice?

The Beta-12LTA 12" 225W Full-Range PA Speaker Driver is made by Eminence Speakers, a well-known and reputable brand in the audio industry. It's designed for durability and consistent performance, making it a reliable choice for professional audio applications.

What is the impedance of this speaker driver?

The Beta-12LTA 12" 225W Full-Range PA Speaker Driver has an impedance of 8 Ohms, making it suitable for a variety of amplifiers and sound setups.

How does this speaker driver ensure distortion-free sound?

The Beta-12LTA 12" 225W Full-Range PA Speaker Driver ensures distortion-free sound due to its high power handling capacity of 225W. This allows it to handle high volume levels without distortion, delivering clear and powerful sound.

Shopper : Why Did You Choose This?Ray W : Not a lot of choices but I remember Eminence name so there you go!

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Eminence Speakers BETA-12LTA Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    12" (305mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 450W
    Watts: 225W

  • Resonance

    45 Hz

  • Usable Frequency Range

    48 Hz - 8 kHz

  • Sensitivity

    97.7 dB

  • Magnet Weight

    38 oz (1.07kg)

  • Gap Height

    0.312" (7.9mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    45 Hz

  • DC Resistance (Re)

    7.37 Ohm

  • Coil Inductance (Le)

    0.83m H

  • Mechanical Q (Qms)

    6.44

  • Electromagnetic Q (Qes)

    0.55

  • Total Q (Qts)

    0.51

  • Compliance Equivalent Volume (Vas)

    136.3L (4.81 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    170 cc

  • Mechanical Compliance of Suspension(Cms)

    0.34 mm/N

  • BL Product (BL)

    11.7 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    1.2 oz (36g)

  • Efficiency Bandwidth Product (EBP)

    82

  • Maximum Linear Excursion (Xmax)

    0.12" (3.2mm)

  • Surface Area of Cone (Sd)

    0.57 sq ft (532.4 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.31" (8mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Sealed: 14-51L (0.5-1.8 cu ft)
    Vented: 56.6-116L (2-4.1 cu ft)

  • Driver Volume Displaced

    2L (0.071 cu ft)

  • Overall Diameter

    12.03" (305.6mm)

  • Baffle Hole Diameter

    11.07" (281.2mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    11.59" (294.4mm)

  • Depth

    4.47" (113.5mm)

  • Weight

    8.1 lb (3.67kg)

Materials of Construction

Jump to...

  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

Other

Jump to...

  • UPC Code

    876358000142

About Eminence Speakers BETA-12LTA

Recommended for professional audio as a woofer in small sealed monitors, or as a PA woofer or monitor in a vented enclosure.

Eminence Speakers BETA-12LTA Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented pole piece
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented pole piece
  • Pressed steel basket
  • Paper cone

What's in the box:

  • Beta-12LTA 12 " 225W Full-Range PA Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
