Eminence Speakers Beta-8A 8" 225W Mid-Bass PA Speaker Driver, 8 Ohm
See all Eminence Speakers items
25% Off

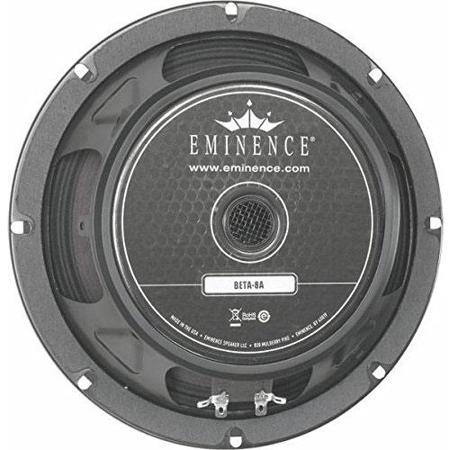

Eminence Speakers Beta-8A 8" 225W Mid-Bass PA Speaker Driver, 8 Ohm

SKU: EMBETA8A MFR: BETA-8A
Be the first to review this itemAsk a Question
$89.99
$119.99
Save: $30 (25%)
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 8" Eminence Beta-8A mid-bass speaker driver.
  • Get crystal-clear audio: 95.1 dB sensitivity ensures your sound cuts through.
  • Perfect for PA systems, this 8 Ohm speaker delivers 225W of pure audio power.
  • Upgrade your studio monitors with this durable speaker featuring a steel basket.
  • Achieve optimal sound in vented enclosures from 8.5-19L for your speaker build.
  • Enjoy long-lasting performance thanks to the robust ferrite magnet component.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Eminence Speakers BETA-8A Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    8" (203mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 450W
    Watts: 225W

  • Resonance

    65 Hz

  • Usable Frequency Range

    78 Hz - 4.5 kHz

  • Sensitivity

    95.1 dB

  • Magnet Weight

    34 oz (963g)

  • Gap Height

    0.312" (7.9mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    65 Hz

  • DC Resistance (Re)

    5.99 Ohm

  • Coil Inductance (Le)

    0.49m H

  • Mechanical Q (Qms)

    4.95

  • Electromagnetic Q (Qes)

    0.42

  • Total Q (Qts)

    0.38

  • Compliance Equivalent Volume (Vas)

    23.3L (0.82 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    63 cc

  • Mechanical Compliance of Suspension(Cms)

    0.37 mm/N

  • BL Product (BL)

    9.6 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.56 zo (16g)

  • Efficiency Bandwidth Product (EBP)

    156

  • Maximum Linear Excursion (Xmax)

    0.11" (3mm)

  • Surface Area of Cone (Sd)

    0.22 sq ft (210 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.29" (7.4mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Sealed: 5.7-9.9L (0.2-0.35 cu ft)
    Vented: 8.5-19L (0.3-0.67 cu ft)

  • Driver Volume Displaced

    0.76L (0.027 cu ft)

  • Overall Diameter

    8.24" (209.3mm)

  • Baffle Hole Diameter

    7.13" (181.1mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.22" (5.6mm)

  • Mounting Holes B.C.D.

    7.75" (196.9mm)

  • Depth

    3.5" (88.9mm)

  • Weight

    6.6 lb (2.99kg)

Materials of Construction

Jump to...

  • Coil Construction

    Aluminum voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

Other

Jump to...

  • UPC Code

    876358000067

About Eminence Speakers BETA-8A

The Beta-8A is recommended for professional audio mid-bass applications or as a woofer in vented enclosures. It can easily handle 450 watts and reproduce frequencies from 78 Hz to 4.5 kHz.

Each Eminence American Standard model can be identified by its economical Stamped Steel chassis. Although more affordable than cast aluminum, these frames provide an excellent and versatile chassis. We coat each basket and all metal components with an epoxy-acrylic finish using our in-house e-coat process.

Eminence Speakers BETA-8A Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround
  • Solid composition paper dust cap

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience powerful sound with this 8" Eminence Beta-8A mid-bass speaker driver.
  • Get crystal-clear audio: 95.1 dB sensitivity ensures your sound cuts through.
  • Perfect for PA systems, this 8 Ohm speaker delivers 225W of pure audio power.
  • Upgrade your studio monitors with this durable speaker featuring a steel basket.
  • Achieve optimal sound in vented enclosures from 8.5-19L for your speaker build.
  • Enjoy long-lasting performance thanks to the robust ferrite magnet component.

What's in the box:

  • Beta-8A 8 " 225W Mid-Bass PA Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
