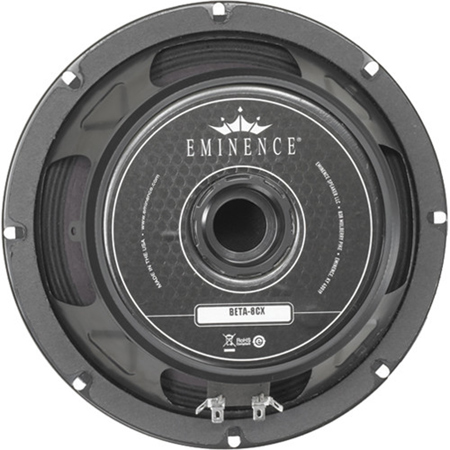

Eminence Speakers Beta-8CX 8" 250W Mid-Range Coaxial Driver, 8 Ohm

SKU: EMBETA8CX MFR: BETA8CX
$129.99
$159.99
Save: $30 (19%)
Earn VIP Reward Points

Key Features

  • Experience superior audio clarity with this Eminence 8" coaxial driver.
  • Achieve balanced sound in your studio with this 250W mid-range speaker.
  • Perfect for custom studio monitors, this 8 Ohm driver ensures compatibility.
  • Enjoy wide frequency response (95 Hz - 3.3 kHz) for detailed sound reproduction.
  • The Beta-8CX's durable build guarantees long-lasting performance in your setup.
  • Upgrade your speaker system with this high-sensitivity (92.9 dB) audio component.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers BETA-8CX Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    8" (203mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Music Program: 500W
    Watts: 250W

  • Resonance

    62 Hz

  • Usable Frequency Range

    95 Hz - 3.3 kHz

  • Sensitivity

    92.9 dB

  • Magnet Weight

    38 oz (1.07kg)

  • Gap Height

    .312" (7.9mm)

  • Voice Coil Diameter

    2.0" (51mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    62 Hz

  • DC Resistance (Re)

    5.37 Ohm

  • Coil Inductance (Le)

    0.67 mH

  • Mechanical Q (Qms)

    6.57

  • Electromagnetic Q (Qes)

    0.31

  • Total Q (Qts)

    0.29

  • Compliance Equivalent Volume (Vas)

    21.43L (0.76 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    67.2 cc

  • Mechanical Compliance of Suspension(Cms)

    0.35 mm/N

  • BL Product (BL)

    11.21 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.67 oz (19g)

  • Efficiency Bandwidth Product (EBP)

    201

  • Maximum Linear Excursion (Xmax)

    0.12" (3.20mm)

  • Surface Area of Cone (Sd)

    0.22 sq ft (210 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.27" (6.9mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 3.40-9.91L (0.12-0.35 cu ft)
    Vented: 7.08-16.99L (0.25-0.60 cu ft)

  • Driver Volume Displaced

    0.79L (0.028 cu ft)

  • Overall Diameter

    8.24'' (209.3mm)

  • Baffle Hole Diameter

    7.13'' (181.1mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.22'' (5.6mm)

  • Mounting Holes B.C.D.

    7.75'' (196.9mm)

  • Depth

    3.50" (88.9mm)

  • Weight

    6.80 lb (3.08kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Kapton former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Tapered Coax

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper Cone

  • Cone Edge Composition

    Sealed cloth cone edge

  • Dust Cap Composition

    Zurette dust cap

  • UPC Code

    876358000074

About Eminence Speakers BETA-8CX

You can elevate your professional audio system with the Beta-8CX 8" 250W Mid-Range Coaxial Driver, a premium component designed for exceptional midrange reproduction in sealed enclosures. This high-quality, durable driver is also an excellent choice for mid-bass or floor monitor applications within vented 2-way cabinets, offering versatility to audio professionals and enthusiasts alike.

Crafted by Eminence Speakers, a leader in the audio equipment industry, the Beta-8CX is synonymous with reliability and powerful performance. Its 250W capacity ensures that it can handle demanding audio tasks with ease, delivering clear and precise sound that can truly enhance any listening experience.

The Beta-8CX's efficient design is optimized for a smooth frequency response and robust sound output. The meticulous engineering behind this driver ensures that it operates with high efficiency, providing a superior midrange that can cut through the mix with clarity and definition.

This coaxial driver's specifications were carefully measured with the ASD:1001 high-frequency driver attached, ensuring compatibility and performance, although the high-frequency driver is not active during the measurement process. This attention to detail guarantees that the Beta-8CX will integrate seamlessly into your audio system, delivering the high-performance sound that Eminence Speakers is known for.

Whether you're upgrading your professional audio setup or building a custom speaker system, the Beta-8CX 8" 250W Mid-Range Coaxial Driver stands out as a robust and efficient choice that will consistently deliver the high-quality sound that your projects demand.

Eminence Speakers BETA-8CX Features

  • Standard screw on 1-3/8" 18 TPI mount for compression driver
  • High frequency horn is hidden behind the porous dust cap
  • Perfect for use in ultra compact monitors
  • Frequency response from 95 to 3,300 Hz allows easy transition to tweeter

Key Features

  • Experience superior audio clarity with this Eminence 8" coaxial driver.
  • Achieve balanced sound in your studio with this 250W mid-range speaker.
  • Perfect for custom studio monitors, this 8 Ohm driver ensures compatibility.
  • Enjoy wide frequency response (95 Hz - 3.3 kHz) for detailed sound reproduction.
  • The Beta-8CX's durable build guarantees long-lasting performance in your setup.
  • Upgrade your speaker system with this high-sensitivity (92.9 dB) audio component.

What's in the box:

  • Beta-8CX 8 " 250W Mid-Range Coaxial Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
