20% Off

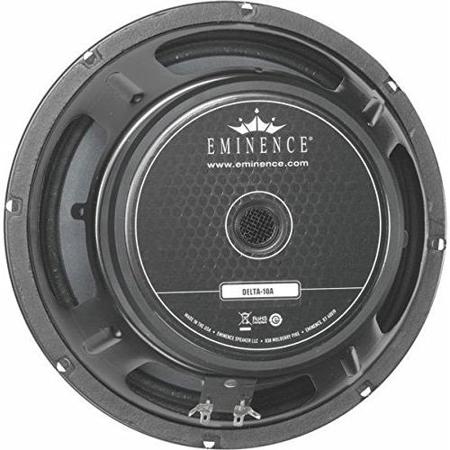

Eminence Speakers Delta-10A 10" 350W Mid-Range Speaker Driver, 8 Ohm

SKU: EMDELTA10A MFR: DELTA-10A
$139.99
$174.99
Save: $35 (20%)
Earn VIP Reward Points

Key Features

  • Experience powerful sound with this 10" Eminence mid-range speaker driver, rated at 350W.
  • Achieve exceptional audio clarity with a frequency response of 63 Hz - 3.7 kHz for studio monitors.
  • Enjoy high sensitivity (98.8 dB) for efficient sound output, perfect for live sound reinforcement.
  • The Delta-10A's aluminum voice coil ensures reliable performance and durability for your speakers.
  • Optimize your sound system with an 8 Ohm impedance, ensuring compatibility with audio amplifiers.
  • Benefit from low distortion and accurate sound reproduction for professional audio applications.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers DELTA-10A Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 700W
    Watts: 350W

  • Resonance

    66 Hz

  • Usable Frequency Range

    63 Hz - 3.7 kHz

  • Sensitivity

    98.8 dB

  • Magnet Weight

    56 oz (1.5kg)

  • Gap Height

    0.375" (9.5mm)

  • Voice Coil Diameter

    2.5" (64mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    66 Hz

  • DC Resistance (Re)

    5.42 Ohm

  • Coil Inductance (Le)

    0.74m H

  • Mechanical Q (Qms)

    6.53

  • Electromagnetic Q (Qes)

    0.35

  • Total Q (Qts)

    0.33

  • Compliance Equivalent Volume (Vas)

    30.5L (1.08 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    121 cc

  • Mechanical Compliance of Suspension(Cms)

    0.18 mm/N

  • BL Product (BL)

    14.4 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    1.1 oz (32g)

  • Efficiency Bandwidth Product (EBP)

    189

  • Maximum Linear Excursion (Xmax)

    0.13" (3.5mm)

  • Surface Area of Cone (Sd)

    0.37 sq ft (344.9 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.37" (9.4mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Vented: 12.7-37.9L (0.45-1.34 cu ft)

  • Driver Volume Displaced

    1.42L (0.05 cu ft)

  • Overall Diameter

    10.09" (256.3mm)

  • Baffle Hole Diameter

    9.18" (233.2mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    9.66" (245.4mm)

  • Depth

    4.25" (108mm)

  • Weight

    10.8 lb (4.9kg)

Materials of Construction

Jump to...
  • Coil Construction

    Aluminum voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

  • UPC Code

    876358000203

About Eminence Speakers DELTA-10A

Bring exceptional audio performance to your professional sound systems with the Eminence Delta-10A 10" 350W Mid-Range Speaker Driver. Engineered for high-quality sound reproduction, this durable 8 Ohm speaker driver is an ideal choice for audio professionals and enthusiasts looking to enhance their woofer/mid-bass or midrange outputs in vented monitors, satellites, and multi-way enclosures.

Crafted by Eminence Speakers, a brand synonymous with reliability and excellence in audio equipment manufacturing, the Delta-10A offers a powerful 350-watt capacity that ensures your sound remains clear and undistorted even at high volumes. Its 10-inch size is perfectly designed to handle a broad spectrum of audio frequencies, delivering a balanced and efficient performance that stands out in the mid-range category.

Whether you're setting up for a live concert, recording session, or upgrading your bass guitar rig, the Delta-10A's robust construction and superior sound fidelity make it a top contender. Its precise audio reproduction capabilities make it a go-to component for those who demand the best from their audio systems.

Incorporate the Eminence Delta-10A 10" 350W Mid-Range Speaker Driver into your setup for a sound experience that is as reliable as it is dynamic. With its combination of high-quality materials, powerful output, and efficient design, this speaker driver is engineered to meet the rigorous demands of professional audio applications.

Eminence Speakers DELTA-10A Features

  • 2-1/2" vented voice coil and vented pole piece lowers power compression
  • Heat resistant Polyimide voice coil former improves power handling
  • Almost 99 dB effeciency ensures high output without alot of power
  • Excellent midbass performance in small vented enclosures

Key Features

  • Experience powerful sound with this 10" Eminence mid-range speaker driver, rated at 350W.
  • Achieve exceptional audio clarity with a frequency response of 63 Hz - 3.7 kHz for studio monitors.
  • Enjoy high sensitivity (98.8 dB) for efficient sound output, perfect for live sound reinforcement.
  • The Delta-10A's aluminum voice coil ensures reliable performance and durability for your speakers.
  • Optimize your sound system with an 8 Ohm impedance, ensuring compatibility with audio amplifiers.
  • Benefit from low distortion and accurate sound reproduction for professional audio applications.

What's in the box:

  • Delta-10A 10 " 350W Mid-Range Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
