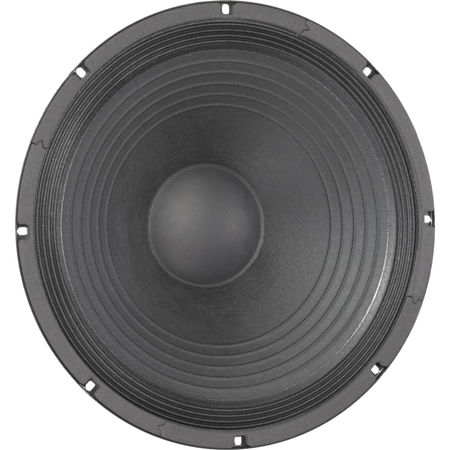

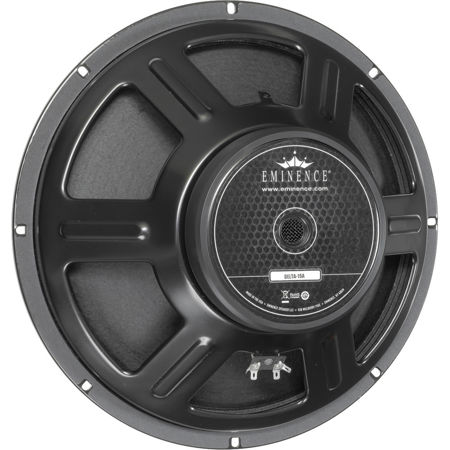

Eminence Speakers Delta-15B 15" 400W Mid-Bass Speaker Driver, 16 Ohm
Eminence Speakers DELTA-15B: Picture 1 thumbnail
Eminence Speakers DELTA-15B: Picture 2 thumbnail
See all Eminence Speakers items
19% Off

Eminence Speakers Delta-15B 15" 400W Mid-Bass Speaker Driver, 16 Ohm

SKU: EMDELTA15B MFR: DELTA15B
Be the first to review this itemAsk a Question
$149.99
$184.99
Save: $35 (19%)
Earn VIP Reward Points

Key Features

  • Experience powerful mid-bass with this 15" Eminence speaker, rated at 400W for robust audio.
  • Achieve clear sound in your studio monitors with a frequency range of 64 Hz - 4 kHz.
  • The Delta-15B's 16 Ohm impedance ensures compatibility with a variety of pro audio setups.
  • Upgrade your sound system with a speaker boasting a high 100 dB sensitivity rating.
  • Enjoy lasting performance with a durable ferrite magnet & pressed steel basket design.
  • Optimize your speaker cabinet with recommended volumes for sealed or vented enclosures.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MATTHEW F : Because they work well in Leslie speaker cabinetsDAN P : 16 ohm driver for a Leslie speakerVaughn T : Easy to find what you need.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Eminence Speakers DELTA-15B Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    15" (381mm)

  • Nominal Impedance

    16 Ohm

  • Power Rating

    Program Power: 800W
    Watts: 400W

  • Resonance

    45 Hz

  • Usable Frequency Range

    64 Hz - 4 kHz

  • Sensitivity

    100 dB

  • Magnet Weight

    56 oz (1.58kg)

  • Gap Height

    0.375" (9.5mm)

  • Voice Coil Diameter

    2.5" (64mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    45 Hz

  • DC Resistance (Re)

    11.3 Ohm

  • Coil Inductance (Le)

    1.35m H

  • Mechanical Q (Qms)

    6.54

  • Electromagnetic Q (Qes)

    0.67

  • Total Q (Qts)

    0.61

  • Compliance Equivalent Volume (Vas)

    204L (7.2 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    137 cc

  • Mechanical Compliance of Suspension(Cms)

    0.19 mm/N

  • BL Product (BL)

    17.6 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    2.25 oz (64g)

  • Efficiency Bandwidth Product (EBP)

    68

  • Maximum Linear Excursion (Xmax)

    0.06" (1.6mm)

  • Surface Area of Cone (Sd)

    0.92 sq ft (856.3 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.43" (11.1mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Sealed: 31-42.5L (1.09-1.5 cu ft)
    Vented: 81.8-87.8L (2.89-3.1 cu ft)

  • Driver Volume Displaced

    3.62L (0.128 cu ft)

  • Overall Diameter

    15.15" (384.8mm)

  • Baffle Hole Diameter

    13.87" (352.3mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    14.56" (369.8mm)

  • Depth

    6.05" (153.7mm)

  • Weight

    12.3 lb (5.58kg)

Materials of Construction

Jump to...

  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

Other

Jump to...

  • UPC Code

    876358000265

About Eminence Speakers DELTA-15B

Eminence's Delta-15B 16 ohm 15" speaker is recommended for professional audio as a midbass or stage monitor woofer in sealed enclosures. Also for midbass or woofer use in vented PA enclosures, as well as musical instrument systems. Made in the USA. 7-year manufacturer's warranty!

Eminence Speakers DELTA-15B Features

  • Fast replacement in vintage Hammond Leslie 147 and 247 cabinets
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented pole piece
  • Pressed steel basket
  • Paper cone
  • Cloth accordian surround

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience powerful mid-bass with this 15" Eminence speaker, rated at 400W for robust audio.
  • Achieve clear sound in your studio monitors with a frequency range of 64 Hz - 4 kHz.
  • The Delta-15B's 16 Ohm impedance ensures compatibility with a variety of pro audio setups.
  • Upgrade your sound system with a speaker boasting a high 100 dB sensitivity rating.
  • Enjoy lasting performance with a durable ferrite magnet & pressed steel basket design.
  • Optimize your speaker cabinet with recommended volumes for sealed or vented enclosures.

What's in the box:

  • Delta-15B 15 " 400W Mid-Bass Speaker Driver (16 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
