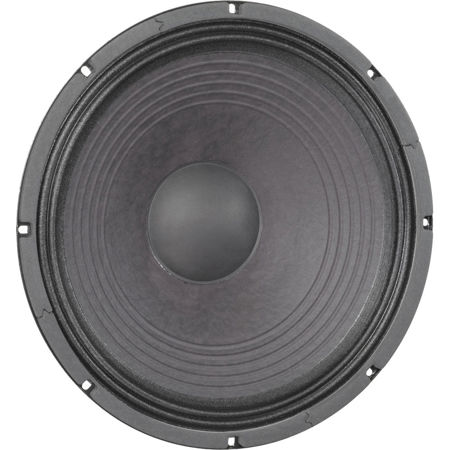

Eminence Speakers Delta-15LFA 15" 500W Low Frequency Speaker Driver, 8 Ohm
See all Eminence Speakers items

Eminence Speakers Delta-15LFA 15" 500W Low Frequency Speaker Driver, 8 Ohm

SKU: EMDELTA15LFA
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Eminence Speakers DELTA15LFA Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    15" (381mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 1000W
    Watts: 500W

  • Resonance

    39 Hz

  • Usable Frequency Range

    42 Hz - 3.2 kHz

  • Sensitivity

    96 dB

  • Magnet Weight

    56 oz (1.58kg)

  • Gap Height

    0.375" (9.5mm)

  • Voice Coil Diameter

    2.5" (64mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    39 Hz

  • DC Resistance (Re)

    6.11 Ohm

  • Coil Inductance (Le)

    1.37m H

  • Mechanical Q (Qms)

    6.3

  • Electromagnetic Q (Qes)

    0.52

  • Total Q (Qts)

    0.48

  • Compliance Equivalent Volume (Vas)

    241L (8.51 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    419 cc

  • Mechanical Compliance of Suspension(Cms)

    0.23 mm/N

  • BL Product (BL)

    14.6 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    2.6 oz (75g)

  • Efficiency Bandwidth Product (EBP)

    75

  • Maximum Linear Excursion (Xmax)

    0.18" (4.8mm)

  • Surface Area of Cone (Sd)

    0.93 sq ft (873 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.64" (16.5mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Sealed: 36.8-42.5L (1.3-1.5 cu ft)
    Vented: 85-167L (3-5.9 cu ft)

  • Driver Volume Displaced

    3.62L (0.128 cu ft)

  • Overall Diameter

    15.15" (384.8mm)

  • Baffle Hole Diameter

    13.87" (352.3mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    14.56" (369.8mm)

  • Depth

    6.3" (160mm)

  • Weight

    12.8 lb (5.81kg)

Materials of Construction

Jump to...

  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented and extended core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

Other

Jump to...

  • UPC Code

    876358000272

About Eminence Speakers DELTA15LFA

Low frequency woofer for pro audio as a mid-bass or floor monitor in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures.

Eminence Speakers DELTA15LFA Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented and extended pole piece
  • Pressed steel basket
  • Paper cone
  • Cloth double half-roll surround

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Kapton coil former
  • Polyamide-imide coated copper voice coil
  • Ferrite magnet
  • Vented and extended pole piece
  • Pressed steel basket
  • Paper cone

What's in the box:

  • Delta-15LFA 15 " 500W Low Frequency Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
