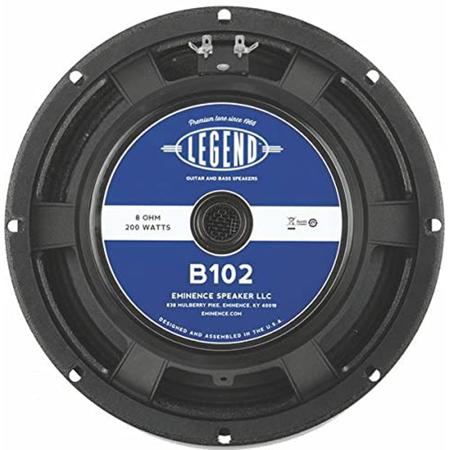

Eminence Speakers Legend B102 10" 200W Bass Guitar Speaker Driver, 8 Ohm

SKU: EMLEGENDB102

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

Is the Legend B102 10" 200W Bass Guitar Speaker Driver suitable for professional use?

Yes, the Legend B102 is designed specifically for professional bass guitar applications, making it an excellent choice for musicians and sound engineers.

Can this speaker driver be used in a vented enclosure?

Absolutely! The Legend B102 10" 200W Bass Guitar Speaker Driver is ideally suited for use in a vented enclosure, ensuring optimal sound projection and resonance.

Does the Legend B102 function as a professional audio mid-range?

Yes, in addition to its primary function as a bass guitar speaker, the Legend B102 also excels as a professional audio mid-range, adding versatility to your audio setup.

What is the impedance of the Legend B102 10" 200W Bass Guitar Speaker Driver?

The Legend B102 features an 8 Ohm impedance, ensuring a balanced and smooth audio output.

Is the Legend B102 suitable for studio recordings?

Yes, the quality and clarity of sound produced by the Legend B102 make it an excellent choice for both live performances and studio recordings.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Eminence Speakers LEGEND B102 Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 400W
    Watts: 200W

  • Resonance

    48 Hz

  • Usable Frequency Range

    44 Hz - 4 kHz

  • Sensitivity

    92.4 dB

  • Magnet Weight

    45 oz (1.27kg)

  • Gap Height

    0.312" (7.9mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    48 Hz

  • DC Resistance (Re)

    6.89 Ohm

  • Coil Inductance (Le)

    0.67 mH

  • Mechanical Q (Qms)

    5.31

  • Electromagnetic Q (Qes)

    0.42

  • Total Q (Qts)

    0.39

  • Compliance Equivalent Volume (Vas)

    65L (2.3 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    103.5 cc

  • Mechanical Compliance of Suspension(Cms)

    0.4 mm/N

  • BL Product (BL)

    11.8 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.98 oz (28g)

  • Efficiency Bandwidth Product (EBP)

    113

  • Maximum Linear Excursion (Xmax)

    0.11" (3mm)

  • Surface Area of Cone (Sd)

    0.37 sq ft (344.9 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.31" (8mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Vented: 18-85 liters (0.63-3 cu ft)

  • Driver Volume Displaced

    1.33L (0.047 cu ft)

  • Overall Diameter

    10.25" (260.4mm)

  • Baffle Hole Diameter

    9.13" (231.9mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.28" (7.1mm)

  • Mounting Holes B.C.D.

    9.75" (247.7mm)

  • Depth

    4.33" (110 mm)

  • Weight

    9.7 lb (4.4kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented and extended core

  • Basket Materials

    Die-cast aluminum basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Solid composition paper dust cap

  • UPC Code

    876358000692

0 Accessories for Eminence Speakers Legend B102 10" 200W Bass Guitar Speaker Driver, 8 Ohm

About Eminence Speakers LEGEND B102

Find your perfect sound with the Legend B102 10" 200W Bass Guitar Speaker Driver, 8 Ohm. This high-quality speaker driver is designed specifically for professional bass guitar applications, delivering a powerful and clear sound that will enhance your musical performances. It's ideally suited for use in a vented enclosure, ensuring optimal sound projection and resonance.

In addition to its primary function as a bass guitar speaker, the Legend B102 also excels as a professional audio mid-range. This versatility makes it a valuable addition to any audio setup, whether you're a musician, sound engineer, or audiophile.

Constructed with a 10-inch diameter and a power capacity of 200W, this speaker driver is capable of handling robust sound levels without compromising on clarity or quality. The 8 Ohm impedance ensures a balanced and smooth audio output, making it an excellent choice for both live performances and studio recordings.

Experience the difference that a professional-grade speaker driver can make with the Legend B102 10" 200W Bass Guitar Speaker Driver, 8 Ohm. It's not just a speaker driver, it's a game-changer in your audio equipment arsenal.

Eminence Speakers LEGEND B102 Features

  • High-quality 10" 200W Bass Guitar Speaker Driver, perfect for professional applications
  • Ideal for use in vented enclosures, enhancing sound projection and resonance
  • Versatile functionality, also suitable as a professional audio mid-range
  • Capable of handling robust sound levels without compromising clarity or quality
  • 8 Ohm impedance for balanced and smooth audio output
  • Excellent choice for both live performances and studio recordings

Key Features

  • High-quality 10" 200W Bass Guitar Speaker Driver, perfect for professional applications
  • Ideal for use in vented enclosures, enhancing sound projection and resonance
  • Versatile functionality, also suitable as a professional audio mid-range
  • Capable of handling robust sound levels without compromising clarity or quality
  • 8 Ohm impedance for balanced and smooth audio output
  • Excellent choice for both live performances and studio recordings

What's in the box:

  • Legend B102 10 " 200W Bass Guitar Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
