21% Off

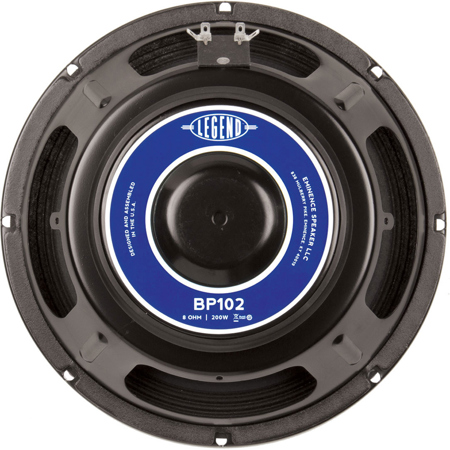

Eminence Speakers Legend BP102 10" 200W Bass Guitar Speaker Driver, 8 Ohm

SKU: EMLEGNDBP102 MFR: LEGENDBP102
$114.99
$144.99
Save: $30 (21%)
Earn VIP Reward Points

Key Features

  • Upgrade your bass tone with this 10" Eminence Legend BP102 guitar speaker driver.
  • Experience powerful sound with a 200W bass guitar speaker, perfect for any performance.
  • Enjoy enhanced durability with a robust, pressed steel basket in this 8 Ohm speaker.
  • Achieve optimal sound in vented (25.5-62 liters) or sealed (14-28 liters) enclosures.
  • Get a full, rich sound with the paper cone & cloth edge of this quality Eminence speaker.
  • Benefit from a 7-year warranty, ensuring lasting value and reliability for your setup.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers LEGEND BP102 Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 400W
    Watts: 200W

  • Resonance

    35 Hz

  • Usable Frequency Range

    40 Hz - 2 kHz

  • Sensitivity

    91.8 dB

  • Magnet Weight

    38 oz (1.07kg)

  • Gap Height

    0.312" (7.9mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    35 Hz

  • DC Resistance (Re)

    5.59 Ohm

  • Coil Inductance (Le)

    0.83 mH

  • Mechanical Q (Qms)

    5.36

  • Electromagnetic Q (Qes)

    0.47

  • Total Q (Qts)

    0.43

  • Compliance Equivalent Volume (Vas)

    91.2L (3.22 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    207.4 cc

  • Mechanical Compliance of Suspension(Cms)

    0.54 mm/N

  • BL Product (BL)

    10 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    1.34 oz (38g)

  • Efficiency Bandwidth Product (EBP)

    75

  • Maximum Linear Excursion (Xmax)

    0.24" (6.2mm)

  • Surface Area of Cone (Sd)

    0.36 sq ft (334.5 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.39" (10mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 14-28 liters (0.5-1 cu ft)
    Vented: 25.5-62 liters (0.9-2.2 cu ft)

  • Driver Volume Displaced

    1.17L (0.041 cu ft)

  • Overall Diameter

    10.08" (256mm)

  • Baffle Hole Diameter

    9.18" (233.2mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    9.66" (245.4mm)

  • Depth

    4.25" (108mm)

  • Weight

    8.9 lb (4.04kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Non-vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Zurette dust cap

  • UPC Code

    876358000852

About Eminence Speakers LEGEND BP102

Overwhelm your audience with the rich, resonant sound of the Legend BP102 10" 200W Bass Guitar Speaker Driver, 8 Ohm. This high-quality, durable speaker driver is designed specifically for professional bass guitar applications, delivering a powerful performance whether used in a sealed or vented enclosure.

Crafted by Eminence Speakers, a leading name in the audio industry, this reliable bass guitar speaker driver is perfect for both single and multi-driver designs. With a robust power rating of 200W, it effortlessly handles high volume levels, making it an ideal choice for live performances or large venues.

The Legend BP102 boasts a broad frequency response of 40Hz-4kHz, ensuring your bass guitar's sound is reproduced with utmost clarity and depth. Its sensitivity of 96dB further enhances the sound quality, capturing every nuance of your performance.

This 10" speaker driver is not just powerful but also versatile with an impedance of 8 ohms, offering compatibility with a wide range of guitar amplifiers. Trust the Legend BP102 10" 200W Bass Guitar Speaker Driver, 8 Ohm to deliver a professional, high-quality sound experience every time.

Eminence Speakers LEGEND BP102 Features

  • Recommended for professional bass guitar applications
  • Works well in single or multi driver designs
  • Also works well as a mid in PA applications or in a three-way bass cabinet

Key Features

  • Upgrade your bass tone with this 10" Eminence Legend BP102 guitar speaker driver.
  • Experience powerful sound with a 200W bass guitar speaker, perfect for any performance.
  • Enjoy enhanced durability with a robust, pressed steel basket in this 8 Ohm speaker.
  • Achieve optimal sound in vented (25.5-62 liters) or sealed (14-28 liters) enclosures.
  • Get a full, rich sound with the paper cone & cloth edge of this quality Eminence speaker.
  • Benefit from a 7-year warranty, ensuring lasting value and reliability for your setup.

What's in the box:

  • Legend BP102 10 " 200W Bass Guitar Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
