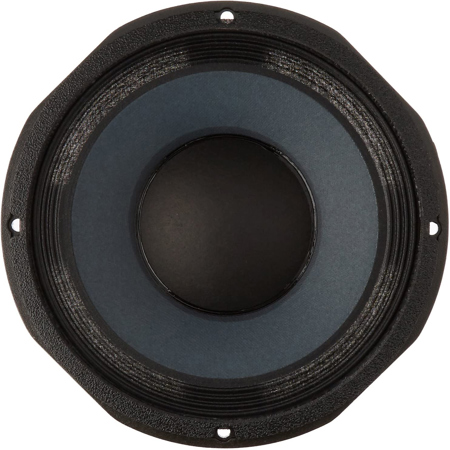

Eminence Speakers Legend CA10-4 10" 200W Bass Guitar Speaker Driver, 4 Ohm
See all Eminence Speakers items

Eminence Speakers Legend CA10-4 10" 200W Bass Guitar Speaker Driver, 4 Ohm

SKU: EMLEGNDCA104

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Eminence Speakers LEGEND CA10 Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    4 Ohm

  • Power Rating

    Program Power: 400W
    Watts: 200W

  • Resonance

    55 Hz

  • Usable Frequency Range

    54 Hz - 3 kHz

  • Sensitivity

    94.4 dB

  • Magnet Weight

    38 oz (1.07kg)

  • Gap Height

    0.312" (7.9mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    55 Hz

  • DC Resistance (Re)

    3.7 Ohm

  • Coil Inductance (Le)

    0.49 mH

  • Mechanical Q (Qms)

    7.67

  • Electromagnetic Q (Qes)

    0.41

  • Total Q (Qts)

    0.39

  • Compliance Equivalent Volume (Vas)

    45.94L (1.62 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    105.7 cc

  • Mechanical Compliance of Suspension(Cms)

    0.27 mm/N

  • BL Product (BL)

    9.72 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    1.05 oz (30g)

  • Efficiency Bandwidth Product (EBP)

    135

  • Maximum Linear Excursion (Xmax)

    0.11" (3.02mm)

  • Surface Area of Cone (Sd)

    0.37 sq ft (350.1 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.27" (7mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Vented: 12.74-55.22 liters (0.45-1.95 cu ft)

  • Driver Volume Displaced

    1.22L (0.043 cu ft)

  • Overall Diameter

    10.5" (266.7mm)

  • Baffle Hole Diameter

    9.01" (228.9mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.3" (7.6mm)

  • Mounting Holes B.C.D.

    9.71" (246.5mm)

  • Depth

    4.44" (112.8mm)

  • Weight

    8.8 lb (3.99kg)

Materials of Construction

Jump to...

  • Coil Construction

    Copper voice coil

  • Coil Former

    Kapton former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Vented and extended core

  • Basket Materials

    Die-cast aluminum basket

  • Cone Composition

    Paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Treated paper dust cap

Other

Jump to...

  • UPC Code

    876358002733

About Eminence Speakers LEGEND CA10

Made famous as an OEM model in many popular bass guitar cabinet brands, this highly sought after design features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet. Loud and clear bass guitar tone with legendary growl.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Legend CA10-4 10 " 200W Bass Guitar Speaker Driver (4 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
