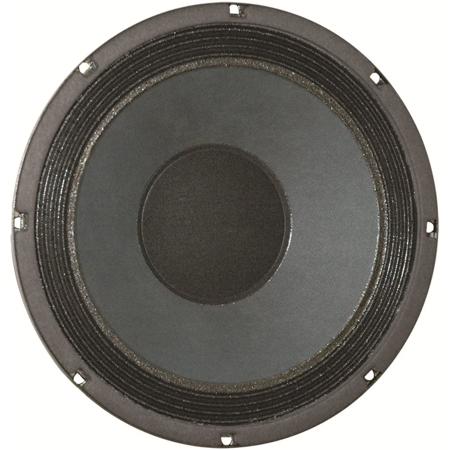

Eminence Speakers Legend BP102-4 10" 200W Bass Guitar Speaker Driver, 4 Ohm

SKU: EMLENDBP1024 MFR: LEGENDBP102-4
$114.99
$144.99
Save: $30 (21%)
Earn VIP Reward Points

Key Features

  • Upgrade your bass amp with this 10" Eminence speaker for superior sound quality.
  • Experience powerful, clear bass tones with the Legend BP102-4 guitar speaker driver.
  • Enjoy reliable performance with this durable 4 Ohm bass guitar speaker (200W power).
  • Achieve optimal sound in sealed or vented enclosures with this versatile speaker.
  • The Eminence Legend BP102-4 offers exceptional value for bass guitar amplification.
  • Easy setup: This 10" speaker's standard size ensures seamless replacement in amps.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOHN S : Good speaker and price !!!

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers LEGEND BP102 Specifications

General

General

Jump to...
  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    4 Ohm

  • Power Rating

    Program Power: 400W
    Watts: 200W

  • Resonance

    35 Hz

  • Usable Frequency Range

    40 Hz - 2 kHz

  • Sensitivity

    90.5 dB

  • Magnet Weight

    38 oz (1.07kg)

  • Gap Height

    0.31" (7.9mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...
  • Resonant Frequency (fs)

    35 Hz

  • DC Resistance (Re)

    2.7 Ohm

  • Coil Inductance (Le)

    0.68 mH

  • Mechanical Q (Qms)

    10.61

  • Electromagnetic Q (Qes)

    0.4

  • Total Q (Qts)

    0.38

  • Compliance Equivalent Volume (Vas)

    103.8L (3.67 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    213 cc

  • Mechanical Compliance of Suspension(Cms)

    0.63 mm/N

  • BL Product (BL)

    7.1 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    1.19 oz (34g)

  • Efficiency Bandwidth Product (EBP)

    87

  • Maximum Linear Excursion (Xmax)

    0.24" (6.2mm)

  • Surface Area of Cone (Sd)

    0.37 sq ft (344.9 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.39" (10mm)

Mounting Information

Jump to...
  • Recommended Enclosure Volume

    Sealed: 14-31 liters (0.5-1.1 cu ft)
    Vented: 24-76 liters (0.9-2.7 cu ft)

  • Driver Volume Displaced

    1.17L (0.041 cu ft)

  • Overall Diameter

    10.08" (256mm)

  • Baffle Hole Diameter

    9.18" (233.2mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.25" (6.4mm)

  • Mounting Holes B.C.D.

    9.66" (245.4mm)

  • Depth

    4.25" (108mm)

  • Weight

    8.9 lb (4.04kg)

Materials of Construction

Jump to...
  • Coil Construction

    Copper voice coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Non-vented core

  • Basket Materials

    Pressed steel basket

  • Cone Composition

    paper cone

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Zurette dust cap

  • UPC Code

    876358000821

About Eminence Speakers LEGEND BP102

It's the Legend BP102-4 10" 200W Bass Guitar Speaker Driver, 4 Ohm, a high-performance audio equipment piece designed to elevate your music experience. This speaker driver is ideally suited for professional bass guitar applications, whether in a sealed or vented enclosure, providing unparalleled sound quality and performance. With a power handling capacity of 200 watts, it delivers robust, clear, and resonant bass tones, enhancing the depth and richness of your music. The Legend BP102-4 is versatile and works seamlessly in both single and multi-driver designs, making it a valuable addition to any audio setup. Its 4-ohm impedance ensures efficient signal processing for a smooth, distortion-free sound. Whether you're a professional musician or an audiophile, the Legend BP102-4 10" 200W Bass Guitar Speaker Driver, 4 Ohm, offers a superior sound experience that truly stands out.

Eminence Speakers LEGEND BP102 Features

  • Ideal for pro audio and bass guitar applications as a mid-range speaker
  • Useful in both sealed or vented enclosures
  • Works well in single or multi driver designs

Key Features

  • Upgrade your bass amp with this 10" Eminence speaker for superior sound quality.
  • Experience powerful, clear bass tones with the Legend BP102-4 guitar speaker driver.
  • Enjoy reliable performance with this durable 4 Ohm bass guitar speaker (200W power).
  • Achieve optimal sound in sealed or vented enclosures with this versatile speaker.
  • The Eminence Legend BP102-4 offers exceptional value for bass guitar amplification.
  • Easy setup: This 10" speaker's standard size ensures seamless replacement in amps.

What's in the box:

  • Legend BP102-4 10 " 200W Bass Guitar Speaker Driver (4 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
