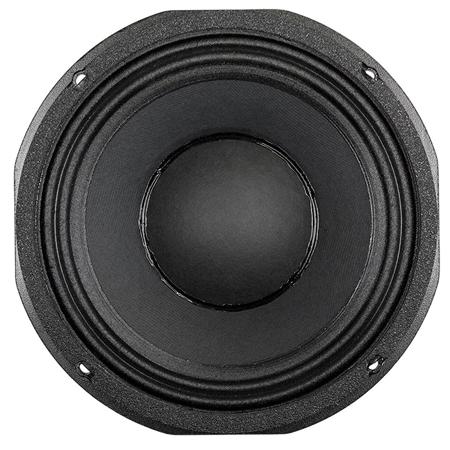

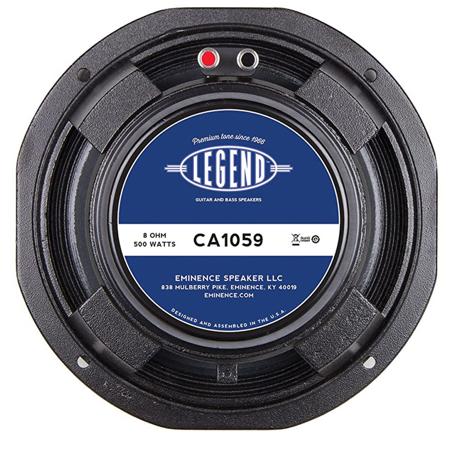

Eminence Speakers Legend CA1059 10" 250W Bass Guitar Speaker Driver, 8 Ohm
Eminence Speakers LEGEND CA1059: Picture 1 thumbnail
Eminence Speakers LEGEND CA1059: Picture 2 thumbnail
Eminence Speakers LEGEND CA1059: Picture 3 thumbnail
See all Eminence Speakers items
17% Off

Eminence Speakers Legend CA1059 10" 250W Bass Guitar Speaker Driver, 8 Ohm

SKU: EMLENDCA1059 MFR: LEGENDCA1059
Be the first to review this itemAsk a Question
$169.99
$204.99
Save: $35 (17%)
Earn VIP Reward Points

Key Features

  • Upgrade your bass tone with this 10" Eminence speaker, delivering exceptional sound quality.
  • Experience powerful performance with a 250W bass guitar speaker driver at 8 Ohm impedance.
  • Enjoy enhanced durability with the die-cast aluminum basket of this robust speaker driver.
  • Achieve optimal sound in vented enclosures; recommended volume: 0.70-2.5 cu ft.
  • The Legend CA1059 ensures clear, punchy bass with a frequency range of 50 Hz - 3.2 kHz.
  • Benefit from the Eminence 7-year warranty, ensuring lasting value and reliability for years.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Eminence Speakers LEGEND CA1059 Specifications

General

General

Jump to...

  • Nominal Basket Diameter

    10" (254mm)

  • Nominal Impedance

    8 Ohm

  • Power Rating

    Program Power: 500W
    Watts: 250W

  • Resonance

    48 Hz

  • Usable Frequency Range

    50 Hz - 3.2 kHz

  • Sensitivity

    98.7 dB

  • Magnet Weight

    59 oz (1.67kg)

  • Gap Height

    0.313" (8mm)

  • Voice Coil Diameter

    2" (51mm)

Thiele & Small Parameters

Jump to...

  • Resonant Frequency (fs)

    48 Hz

  • DC Resistance (Re)

    5.53 Ohm

  • Coil Inductance (Le)

    0.11 mH

  • Mechanical Q (Qms)

    3.27

  • Electromagnetic Q (Qes)

    0.28

  • Total Q (Qts)

    0.26

  • Compliance Equivalent Volume (Vas)

    71.47L ( 2.52 cu ft)

  • Peak Diaphragm Displacement Volume (Vd)

    165.3 cc

  • Mechanical Compliance of Suspension(Cms)

    0.42 mm/N

  • BL Product (BL)

    12.54 T-M

  • Diaphragm Mass Inc. Airload (MMs)

    0.95 oz (27g)

  • Efficiency Bandwidth Product (EBP)

    169

  • Maximum Linear Excursion (Xmax)

    0.18" (4.72mm)

  • Surface Area of Cone (Sd)

    0.37 sq ft (350.1 sq cm)

  • Maximum Mechanical Limit (Xlim)

    0.31" (8mm)

Mounting Information

Jump to...

  • Recommended Enclosure Volume

    Vented: 18.82-70.79 liters (0.70-2.5 cu ft)

  • Driver Volume Displaced

    1.72L (0.061 cu ft)

  • Overall Diameter

    10.5" (266.7mm)

  • Baffle Hole Diameter

    9.01" (228.9mm)

  • Front Sealing Gasket

    Yes

  • Rear Sealing Gasket

    Yes

  • Mounting Holes Diameter

    0.32" (8.1mm)

  • Mounting Holes B.C.D.

    9.71" (246.5mm)

  • Depth

    4.53" (115.1mm)

  • Weight

    11.2 lb ( 5.08kg)

Materials of Construction

Jump to...

  • Coil Construction

    Edge wound Aluminum Voice Coil

  • Coil Former

    Polyimide former

  • Magnet Composition

    Ferrite magnet

  • Core Details

    Non-vented core

  • Basket Materials

    Die-cast aluminum basket

  • Cone Composition

    Cloth cone edge

  • Cone Edge Composition

    Cloth cone edge

  • Dust Cap Composition

    Paper dust cap

Other

Jump to...

  • UPC Code

    876358003921

About Eminence Speakers LEGEND CA1059

Be captivated by the superior sound quality of the Legend CA1059 10" 250W Bass Guitar Speaker Driver, 8 Ohm. This model is an enhanced version of the widely acclaimed Legend CA10, boasting a larger magnet for improved performance. The CA1059 is a 10-inch cast-frame bass guitar speaker, renowned for delivering punchy sound and crystal-clear clarity. It has been the go-to speaker in numerous renowned OEM cabinets over the years.

Just like its predecessor, the CA1059's chassis is skillfully truncated on the sides, allowing for a snug fit in 2x, 4x, and 8x10 configurations. This design ensures optimal sound dispersion and resonance, enhancing your musical experience.

What sets the Legend CA1059 apart is its higher Xmax and a larger 59 oz. ferrite magnet. These features contribute to its higher efficiency and lower Qts for dampening, outperforming its smaller magnet version. Experience the power and precision of the Legend CA1059 10" 250W Bass Guitar Speaker Driver, 8 Ohm, and elevate your sound to new heights.

Eminence Speakers LEGEND CA1059 Features

  • A larger magnet version of the popular Legend CA10
  • Cast-frame bass guitar speaker with punch and clarity
  • Truncated on the sides for tight fitting in 2x, 4x, and 8x10 configurations

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Upgrade your bass tone with this 10" Eminence speaker, delivering exceptional sound quality.
  • Experience powerful performance with a 250W bass guitar speaker driver at 8 Ohm impedance.
  • Enjoy enhanced durability with the die-cast aluminum basket of this robust speaker driver.
  • Achieve optimal sound in vented enclosures; recommended volume: 0.70-2.5 cu ft.
  • The Legend CA1059 ensures clear, punchy bass with a frequency range of 50 Hz - 3.2 kHz.
  • Benefit from the Eminence 7-year warranty, ensuring lasting value and reliability for years.

What's in the box:

  • Legend CA1059 10 " 250W Bass Guitar Speaker Driver (8 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
