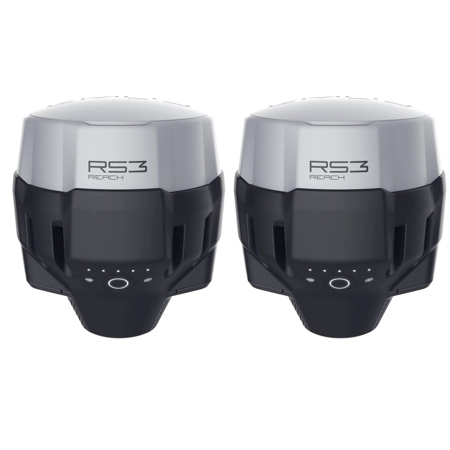

Emlid Reach RS3 RTK Survey Kit

SKU: EMLRCH205A MFR: RCH205 A
Earn VIP Reward Points

Key Features

  • Achieve precise positioning with the Emlid Reach RS3 RTK GNSS Receiver's multi-band GNSS support.
  • Experience reliable connectivity using the integrated LoRa radio, up to 8 km range for real-time data.
  • Utilize the tilt compensation feature for accurate measurements, even in challenging environments.
  • Enjoy extended autonomy with up to 18 hours of RTK rover operation on a single battery charge.
  • Capture and store data easily with the 16 GB internal storage, supporting RINEX and NMEA formats.
  • Ensure seamless integration with NTRIP and RTCM3 corrections for high-accuracy surveying projects.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$449.99

2 Year

$639.99

3 Year

$849.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Emlid Reach RS3 Specifications

Electrical

Electrical

Jump to...
  • Autonomy

    18 hrs as an RTK rover with tilt
    22 hrs of logging

  • Battery

    Li-Ion 5200 mAh, 7.2
    V37.44 Wh

  • Charging

    USB Type-C 5 V, 3 A

Positioning

Jump to...
  • Static

    H: 4 mm + 0.5 ppm
    V: 8 mm + 1 ppm

  • PPK

    H: 5 mm + 0.5 ppm
    V: 10 mm + 1 ppm

  • RTK

    H: 7 mm + 1 ppm
    V: 14 mm + 1 ppm

  • Tilt

    RTK + 2 mm + 0.3 mm/ Degree

  • Convergence time

    Approx. 5 s typically

Connectivity

Jump to...
  • Radio

    LoRa:
    Transmit and receive
    Frequency range: 868/915 MHz
    Power: 0.1W
    Distance: Up to 8 km

    UHF:
    Receive-only
    Frequency range: 410-470 MHz
    Protocols: TRIMTALK 450S
    Modulation type: GMSK

  • LTE modem

    Regions: Global

    Bands: FDD-LTE: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 66
    TD-LTE: 38, 40, 41
    UMTS (WCDMA/FDD): 1, 3, 2, 4, 5, 6, 8, 19 Quad-band, 850/1900 900/1800 MHz

    SIM card: Nano-SIM

  • Wi-Fi

    802.11 b/g/n

  • Bluetooth

    4.0/2.1 EDR

  • Ports

    RS-232, USB Type-C

  • Corrections

    NTRIP, RTCM3

  • Position output

    NMEA, LLH/XYZ

  • Data logging

    RINEX, NMEA, LLH/XYZ, UBX

  • Internal storage

    16 GB

  • Signal tracked

    GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1B/C, E5b

  • Number of channels

    184

  • Update rates

    Up to 10 Hz

  • IMU

    6DOF

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Mechanical

Jump to...
  • Operating temperature

    -4 to 149 Degree F (-20 to +65 Degree C)

  • Ingress protection

    IP67

  • Dimensions

    4.9 x 4.9 x 5.5" (126 x 126 x 142mm) (Each)

  • Weight

    33.5 oz (950g) (Each)

  • UPC Code

    192223275096

About Emlid Reach RS3

RTK GNSS receiver with tilt compensation - Survey grade precision, even in hard-to-reach spots
• Multi-band base and rover
• IMU tilt compensation
• LTE modem
• Dual-band radio

Accurate results even with large tilt angles
The IMU-based tilt compensation in Reach RS3 enables you to make measurements with up to 60 degrees of tilt while still staying within 20 mm of accuracy.

Reach RS3 continuously measures and corrects tilt in real-time to keep you on target.

Survey and stakeout faster - No need to check the bubble

Effortless and robust - IMU tilt compensation

Calibration-free
We calibrate the inertial measurement unit in each device individually at the factory, so you can get your Reach RS3 up and running right out of the box.

Immune to magnetic disturbances
Unaffected by magnetic fields, RS3's IMU sensors provide robust tilt compensation even when working close to metal structures.

Quick initialization
Tilt initialization takes about 20 meters of walking or 10-20 seconds of tilting. Usually ready on the way from the car.

Rapid and Reliable GNSS receiver

Gets a fix in 5 seconds
Reach RS3 gets a centimeter-accurate solution in about 5 seconds. It maintains robust performance even when the sky view is partially obstructed, or the receiver itself is tilted.

• GPS/QZSS, GLONASS, BeiDou, and Galileo L1C/A, L2C, L1OF, L2OF,B1I, B2I, E1B/C, E5b
• RINEX logging and PPP support
• Up to 22 hours on 1 charge
• Built-in LTE modem

Get corrections from CORS, Reach or 3rd-party base

NTRIP - Base and Rover
Work in RTK with VRS or a single baseline CORS network. You can also connect another GNSS receiver as an NTRIP base using Emlid NTRIP Caster.

Compatibility
Any receiver with RTCM3 support

Dual-band radio

LoRa 868/915 MHz - Base and Rover
Perfect for areas with no internet coverage for NTRIP. LoRa is used when connecting Emlid receivers over the radio.

Compatibility
All Emlid receivers with built-in radio

UHF 450 MHz - Rover
An option to mix and match RTK receivers within your fleet. You can configure your Reach RS3 to receive corrections from an existing base.

You can also use a high-power external radio on your Reach base and connect with the UHF radio receiver in Reach RS3.

Compatibility
Bases with radios that transmit TRIMTALK 450S

Comes with software for the field and the office

Emlid Flow
Emlid Flow efficiently manages all field-related tasks, including receiver configuration, RINEX logging, data collection, and stakeout.

• Tilt Compensation
• Localization
• Coding
• Data collection and stakeout
• Base shift
• Base and rover setup
• Background maps
• Logging
• CSV, DXF, SHP export and import
• Sync up to 3 devices

Emlid Flow 360
You can access your survey data via the cloud-based Emlid Flow 360. It allows you to prepare, manage, and export your projects from a browser.

Emlid Studio
• Add WMS/WMTS layers
• Satellite map
• Create custom survey codes libraries
• Export and import of survey data
• Project management and sync

Emlid Caster
Connect up to 10 rovers to your base station via the internet or set up your own NTRIP network with Emlid Caster.

• Kinematic processing
• Static processing
• RTK Drone data processing
• Raw data analysis
• Stop & Go with Emlid Flow

Rugged and compact

IP67
RS3 is waterproof up to a one meter depth. Silicone plugs completely seal and protect all connectors from water and dust.

Industrial battery
The Reach RS3 Li-Ion battery handles high and low temperatures well and over 2000 cycles of charging and discharging while maintaining its original capacity.

While others are hot-swapping batteries, your Reach just keeps working.

-20 to +65 Degree C
We extensively tested Reach RS3 in conditions that simulate the coldest winters and hottest summers.

Impact-resistant
The body of the Reach RS3 is made of polycarbonate and coated with elastomer. The combination of these materials makes your Reach RS3 drop resistant and ready for the harshest conditions.

Emlid Reach RS3 Features

  • High precision IMU
  • RTK+ 2mm + 0.3mm/Degree
  • Immune to magnetic disturbances
  • Dual-band radio
  • 868/915 MHz LoRa to receive and transmit corrections
  • 450 MHz UHF to receive corrections
  • Tracks GPS/QZSS, GLONASS L1, L2; BeiDou B1, B2; Galileo E1, E5
  • Global LTE modem
  • NTRIP and RTCM3 to send and receive corrections
  • 18 hrs with tilt compensation
  • Li-Ion battery, USB Type-C charging
  • Comes with the Emlid Flow app

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve precise positioning with the Emlid Reach RS3 RTK GNSS Receiver's multi-band GNSS support.
  • Experience reliable connectivity using the integrated LoRa radio, up to 8 km range for real-time data.
  • Utilize the tilt compensation feature for accurate measurements, even in challenging environments.
  • Enjoy extended autonomy with up to 18 hours of RTK rover operation on a single battery charge.
  • Capture and store data easily with the 16 GB internal storage, supporting RINEX and NMEA formats.
  • Ensure seamless integration with NTRIP and RTCM3 corrections for high-accuracy surveying projects.

What's in the box:

  • 2x Emlid Reach RS3 RTK GNSS Receiver
  • 2x LoRa Antenna
  • 2x USB Cable
  • 2x Carrying Case with Strap
  • Emlid 1 Year Limited Warranty
