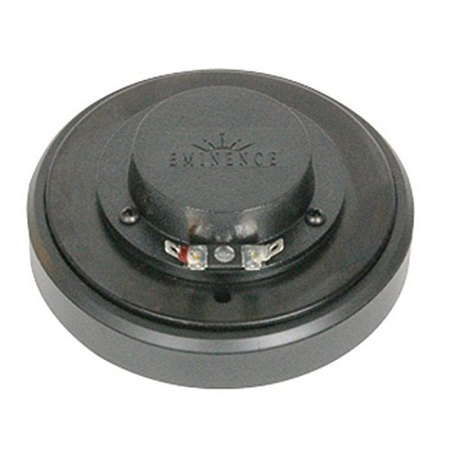

Eminence Speakers PSD:2002-16 1" Titanium Compression Speaker Driver, 16 Ohm

SKU: EMPSD200216 MFR: PSD 2002-16
$79.99
$109.99
Save: $30 (27%)
Earn VIP Reward Points

Key Features

  • Experience pristine audio fidelity with this Eminence 1" titanium compression driver.
  • Achieve superior sound accuracy with a usable frequency range of 1200Hz-20kHz.
  • This robust speaker driver offers a power rating of 80W (AES) for reliable performance.
  • Enjoy seamless connectivity with a 16 Ohm nominal impedance for studio monitors.
  • Upgrade your professional audio setup with a sensitivity of 105.8 for clear output.
  • Benefit from exceptional build quality backed by Eminence Speakers' 7-year warranty.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$6.99

2 Year

$13.99

3 Year

$20.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Eminence Speakers PSD 2002 Specifications

General

General

Jump to...
  • Throat Size

    1" (25.4mm)

  • Nominal Impedance

    16 Ohm

  • Minimum Impedance

    14.8 Ohm @ 3.3 kHz

  • Power Rating

    80W (AES)

  • Resonance

    0.58kHz

  • Usable Frequency Range

    1200Hz-20kHz

  • Recommended Crossover

    1.2 kHz / 18 dBkHz

  • Sensitivity

    105.8

  • Magnet Material

    Ferrite

  • Magnet Weight

    34 oz (0.96kg)

  • Voice Coil Diameter

    2" (50.8mm)

  • Voice Coil Former

    Polyimide

  • Diaphragm Material

    Titanium

  • DC Resistance (Re)

    11.9 Ohm

Mounting Information

Jump to...
  • Overall Diameter

    5.25" (133.4mm)

  • Driver Volume Displaced

    0.5L (0.01 cu ft)

  • Mounting Holes Diameter

    2x 1/4-20 or 3x M6

  • Mounting Holes B.C.D.

    3" (76.2mm) or 2.25" (57mm)

  • Depth

    2.2" (55.9mm)

  • Weight

    4.7 lb (2.1kg)

  • UPC Code

    876358000951

About Eminence Speakers PSD 2002

Under the banner of the trusted Eminence Speakers brand, the PSD:2002-16 1" Titanium Compression Speaker Driver stands as a testament to high-quality audio equipment. This innovative product is designed with a durable titanium diaphragm and a Polyimide former, ensuring its longevity and reliable performance.

As a 16 Ohm model, it offers compatibility with both 2-bolt and 3-bolt horn lenses, demonstrating its versatility in various audio setups. This efficient high-frequency compression driver is engineered to deliver clear and powerful sound, making it an ideal choice for those seeking to enhance their audio system's performance.

In addition to the 16 Ohm model, the Eminence PSD:2002 series also includes an 8 Ohm version and a 1-3/8"-18 TPI screw-on version, catering to a wide range of audio requirements. Each model in this series upholds the Eminence Speakers' reputation for producing innovative, high-quality, and durable audio equipment.

Eminence Speakers PSD 2002 Features

  • High-quality 1" Titanium Compression Speaker Driver from the reputable Eminence Speakers brand
  • Durable design with a titanium diaphragm and Polyimide former for long-lasting performance
  • Efficient high-frequency compression driver, engineered to deliver clear and powerful sound
  • Versatile 16 Ohm model, compatible with both 2-bolt and 3-bolt horn lenses
  • Part of the innovative Eminence PSD:2002 series, also available in 8 Ohm and 1-3/8"-18 TPI screw-on versions
  • Ideal for enhancing audio system's performance in various audio setups

Key Features

  • Experience pristine audio fidelity with this Eminence 1" titanium compression driver.
  • Achieve superior sound accuracy with a usable frequency range of 1200Hz-20kHz.
  • This robust speaker driver offers a power rating of 80W (AES) for reliable performance.
  • Enjoy seamless connectivity with a 16 Ohm nominal impedance for studio monitors.
  • Upgrade your professional audio setup with a sensitivity of 105.8 for clear output.
  • Benefit from exceptional build quality backed by Eminence Speakers' 7-year warranty.

What's in the box:

  • PSD:2002-16 1 " Titanium Compression Speaker Driver (16 Ohm)
  • Eminence Speakers 7 Year Limited Warranty
