EOTech Holographic Hybrid Sight I System
See all EOTech items

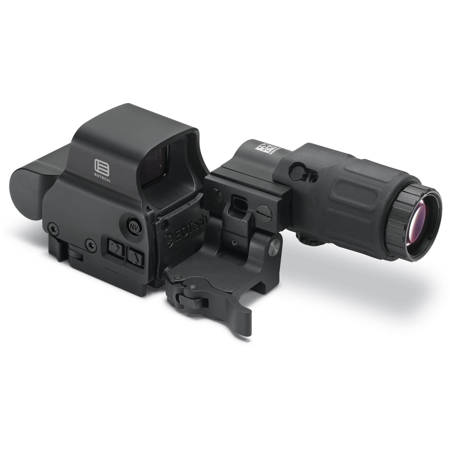

EOTech Holographic Hybrid Sight I System, Includes EXPS3-4 Holographic Weapon Sight, G33.STS Magnifier and Switch-to-Side Mount, CR123 Battery

SKU: EOTHHSI
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

EOTech Holographic Hybrid Sight I System Specifications

  • EXPS3-4 HWS: Optics

    Transmission holography - Parallax free

  • EXPS3-4 HWS: Magnification

    1x

  • EXPS3-4 HWS: Eye Relief

    Unlimited

  • EXPS3-4 HWS: Temperature

    -40 to 65 deg. C / -40 to 149 deg. F

  • EXPS3-4 HWS: Waterproof

    Submersible to 33' / 10.06m depth

  • EXPS3-4 HWS: Sealing

    Fogproof internal optics

  • EXPS3-4 HWS: Color/Finish

    Non-reflective black or Flat Dark Earth (FDE) with hard coat finish

  • EXPS3-4 HWS: Adjustment (per click)

    0.5 MOA (1/2" (12.7mm) at 100 yds (91m))

  • EXPS3-4 HWS: Adjustment Range

    +/- 40 MOA travel

  • EXPS3-4 HWS: Mount

    1" (25.4mm) weaver or MIL-STD 1913 rail

  • EXPS3-4 HWS: Return to Zero

    Repeatable to within 2 MOA after re-mounting

  • EXPS3-4 HWS: Optical Surfaces

    Anti-reflection coating

  • EXPS3-4 HWS: Window Dimensions

    1.20" x 0.85" (30 x 23mm)

  • EXPS3-4 HWS: Front Window Material

    Shatter resistant glass 1/8" (3.17mm)

  • EXPS3-4 HWS: Rear Window Material

    Shatter resistant laminate (3/16" (4.76mm)

  • EXPS3-4 HWS: Field of View

    30 yds (28m) at a 4" eye relief
    100 yds (91m)

  • EXPS3-4 HWS: Reticle Options

    65MOA circle with quadrant ticks with 1 MOA aiming dot
    65MOA circle with quadrant ticks with (2) 1 MOA aiming dots
    4- 65MOA circle with quadrant ticks with (4) 1 MOA aiming dots

  • EXPS3-4 HWS:Brightness Adjustment Range

    146, 000:1 brightest to lowest in day mode

  • EXPS3-4 HWS: Brightness Range

    1280:1 with NV switch engaged

  • EXPS3-4 HWS: Power Source

    123 lithium battery

  • EXPS3-4 HWS: Battery Life

    Approximately 600 continuous hours at nominal setting 12

  • EXPS3-4 HWS: Brightness Settings

    30 settings with scrolling feature (10 settings for NV use)

  • EXPS3-4 HWS:Auto Battery Check Indicator

    Flashing reticle upon start-up

  • EXPS3-4 HWS: Auto Shut-down

    At 8 hrs- programmable to 4 hrs

  • G33 Magnifier: Magnification Fixed

    3X

  • G33 Magnifier: Eye Relief

    2.2" / 55.88mm

  • G33 Magnifier: Field of View

    7.3 degrees

  • G33 Magnifier: Length

    3.9" / 99.06mm

  • G33 Magnifier: Temperature

    -40 to 60 deg. C / -40 to 140 deg. F

  • G33 Magnifier: Waterproof

    33' (10m)

  • G33 Magnifier: Sealing

    Fogproof internal optics

  • G33 Magnifier: Finish

    Non reflective / Rubber coated

  • G33 Magnifier: Optical Axis Adjustment

    Internal adjustment

  • STS Mount: Color/Finish

    Non reflective black with hard coat finish.

  • STS Mount: Switch Orientation

    Ambidextrous mount Flip Orientation to allow left or right flip

  • STS Mount: Rail Interface

    1" / 25.40mm Weaver or MIL-STD-1913 with Quick Detach lock

  • STS Mount: Magnifier Interface

    User configurable height with quick detach mount

  • Dimensions

    EXPS3-4 HWS (L x W x H): 3.5 x 2.2 x 2.8" / 88.90 x 55.88 x 71.12mm
    EXPS3-4 HWS Window: 30 x 23mm / 1.18 x 0.91"

    STS Mount (L x H): 1.66 x 1.18(Clears common low profile flip up rear iron sights)" / 42.16 x 29.97mm

  • Weight

    EXPS3-4 HWS: 11.2oz / 317.51g
    G33 Magnifier: 6.1oz (174g)
    STS Mount: 2.9 oz (81g)

  • UPC Code

    672294570295

About EOTech Holographic Hybrid Sight I System

The EOTech Holographic Hybrid Sight I (HHS I) features an EXPS3-4 with a G33.STS magnifier. It has great utility for any shooter, whose target ranges vary from close to far. The HHS I provides a solution for engaging threats in close-quarter combat situations, then quickly transitions to a 600-meter targeting or surveillance situation. A quick switch-to-side (STS) mount offers simple, fast disengagement of the G33 magnifier. The durable, night-vision-compatible system offers wide-field optical performance with superior light transmission for visibility in extreme low-light conditions.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • EOTech EXPS3-4 Holographic Weapon Sight
  • G33.STS Magnifier and Switch-to-Side Mount
  • CR123 Battery
  • EOTech 2 Year Warranty
