Review Summary
White
Epson 3LCD
3-Chip
True Laser Diode Array
Front, Front-Ceiling, Rear, Rear-Ceiling
Poly-silicon TFT Active Matrix, 0.74" wide panel, 12-bit
4K PRO-UHD (3840 x 2160) (dual-axis: 1920 x 1080)
4096 x 2160
120Hz
4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
16:9 widescreen
1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Mode
Color Light Output: 2,500 lumens
White Light Output: 2,500 lumens
Up to and over 1,200,000:1, with Dynamic Contrast in Normal or High Speed setting
14-point temperature adjustment
Full-color (up to 1.07 billion colors)
50 to 300" (1.28 to 7.62m)
58 to 748.03" (1.5 to 19m)
Vertical/Horizontal: +/- 30 degrees
Full 10-bit
Full 12-bit
Normal Mode: Up to 20,000 hours
Medium Mode: Up to 20,000 hours
Eco Mode: Up to 20,000 hours
China
15-element precision glass structure (AGS)
Powered focus/optical zoom/lens position
2.0 - 3.0
22.5 - 46.7mm
1 - 2.1
1.35 - 2.84
Vertical: -96.3% to +96.3% (H center, powered)
Horizontal: -47.1% to +47.1% (V center, powered)
Powered, slide lens shutter
2x HDMI 2.1 (HDCP 2.3); one supporting eARC/ARC
1x USB Type-A (for optical HDMI cable 300 mA maximum power supply only)
1x USB Type-A 5 V, 2.0 A for power and firmware
1x Mini USB (service only)
1x LAN RJ45 (control only)
1x RS-232C (DB-9)
1x Trigger out (On, Off) 12 V DC, 200 mA maximum (3.5mm mono or stereo mini-jack)
HDR10, HDR10+, HLG
16 steps, real-time
Dynamic, Vivid, Bright Cinema, Cinema, Natural
Yes (Auto/Full/Zoom)
Input up to 4K at 60 Hz, Output up to 4K at 120 Hz
LPCM, Dolby Digital AC-3, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD, DTS-HD High-Resolution Audio, Master Audio, DTS:X, AAC
PC, Mac
LPCM, Dolby Digital (AC-3), DTS, AAC
41 to 95 Degree F (5 to 35 Degree C)
100 - 240 VAC +/- 10%, 50/60 Hz
Normal Mode: 311 W
Medium Mode: 243 W
Eco Mode: 204 W
22 - 30 dB
Kensington security lock port
Power Button Lock hinders projector from being turned on without parental supervision
Front and rear directional
32' (10m)
Front Right/Left: +/- 30 degrees
Upper/Lower: +/- 30 degrees
Rear Right/Left: +/- 30 degrees
Upper/Lower: 0 + 60 degrees
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay Transport Partner
Including Feet: 20.5 x 17.6 x 7.6" (52.07 x 44.70 x 19.30cm)
28 lbs (12.7kg)
010343967526
Projection Perfected.

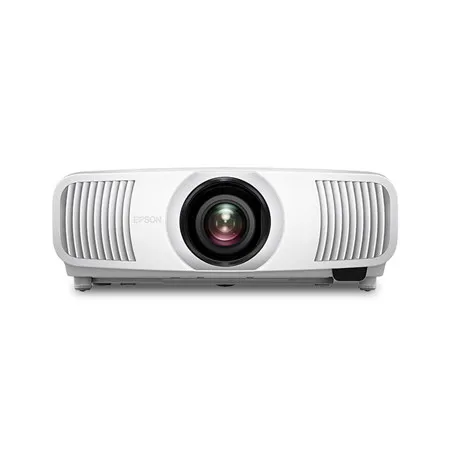

Welcome to the next generation of Home Cinema Projection. Introducing the Epson Home Cinema LS11000 4K PRO-UHD Laser Projector. Featuring cutting-edge technology, the Home Cinema LS11000 uses proprietary 4K PRO-UHD technology and a proprietary Epson Picture Processor to produce a full 3,840 x 2,160-pixel, on-screen image to faithfully display your movies, TV shows and gaming sessions the way they were meant to be seen-with incredible picture sharpness, brightness and color accuracy.
Perfect for gamers, the Home Cinema LS11000 works alongside the latest generation of consoles and PCs to deliver an incredibly immersive gaming experience up to 4K HDR at 120 frames per second and with input lag times below 20 milliseconds, this could be the best gaming projector we've ever made. The Epson Home Cinema LS11000 transforms virtually any room into the ultimate 4K DIY home theater experience.
4K PRO-UHD
Advanced pixel-shifting technology works in parallel with three individual high-definition LCD chips without sacrificing picture brightness
Precision Shift Glass Plate Technology
Unique, digitally controlled Precision Shift Glass Plate precisely refracts pixel light to display a 3840 x 2160, 8.29-million-pixel image for an exceptionally sharp and clear picture
Epson Picture Processor
Powerful video processing technology, the proprietary Epson Picture Processor handles real-time color, contrast, HDR, frame interpolation and resolution enhancement
Laser Array Light Source
True multi-array laser diodes are the optimum light source to power the unique 3-chip 3LCD projector engine for incredible picture brightness, black contrast and color accuracy
High Picture Brightness
Impressive 2,500 lumens of color brightness (IDMS Rated) and 2,500 lumens of white brightness (ISO Rated) for an exceptional picture in virtually any theater environment - even in rooms with some ambient light
True 3-Chip 3LCD Projector Engine
Advanced 3LCD technology uses three individual LCD chips to continuously display 100% of the RGB color signal for every frame. This allows for outstanding color gamut while maintaining excellent brightness without any rainbowing or color brightness issues seen with other projection technologies
Impressive HDR
Full 10-bit HDR color processing accepting 100% of the HDR source information to faithfully reproduce HDR, HDR10+ and HLG (Hybrid Log Gamma) content for an exceptional visual performance; real-time HDR curve adjustment allows for 16-steps of control to finetune the HDR performance regardless of the content
120 Hz Refresh Rate
Refresh rates up to 120 Hz allow for smoother motion for supported content while providing the option for impressive Frame Interpolation for content below 120 Hz
Impressive Contrast
Taking full advantage of the Laser Array Light Source, Epson is able to suppress stray light within the signal and enhance the picture contrast to produce a Dynamic Contrast Ratio exceeding 1,200,000:1
Epson Cinema Lens
Designed for zero light leakage, the Epson Cinema Lens utilizes a proprietary multi-element precision glass structure for outstanding image clarity and edge-to-edge focus uniformity
3-Way Motorized Lens
Making installation simple, you can precisely shift the lens up to +/- 47% horizontally and up to +/- 96% vertically without picture distortion or loss of clarity; you can also set the zoom and focus, then store all the settings in one of ten lens memory presets
Real-Time Scene Adaptive Correction
Powered by the Epson Picture Processor, the user has the option to automatically adjust the picture quality based upon the scene information itself; this provides a simple way to get impressive color and contrast, regardless of the content being displayed
HDMI 2.1
Supports the full 48 Gbps bandwidth for accepting uncompressed 4K HDR content up to 120 Hz; along with ARC and eARC support, this allows for outstanding compatibility with the latest AV receivers and next-generation gaming consoles
Epic for Gaming
Gaming up to 4K at 120 frames per second, along with input lag times below 20 ms, allow serious gamers to take full advantage of the latest generation of gaming consoles and even higher-end gaming PCs
Eco Features
RoHS compliant
Recyclable product
Epson America, Inc. is a SmartWay Transport Partner
4K PRO-UHD
Full 3840 x 2160 pixel image on screen for an exceptionally sharp picture
True Laser Light Source
Laser-array diodes produce incredible picture brightness, black contrast and color accuracy
Epic for Gaming
120 Hz refresh rate and input lag times below 20 ms. Enough said.
Impressive HDR Performance
Full 10-bit HDR processing and real-time curve adjustments for the ultimate HDR experience
