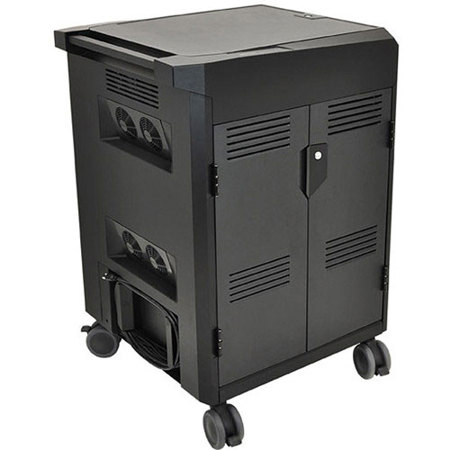

Ergotron 12A PowerShuttle Laptop Charging Cart for Up to 20 Devices, 6.5lbs Capacity

SKU: ERG24291085

This item is no longer available.

Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

About Ergotron PowerShuttle

This cart's universal interface charges up to 20 devices (works with laptops, netbooks and tablets). PowerShuttle Technology optimizes total charge time while safely preventing electrical circuit overload by efficiently grouping the number of devices that are charged at one time. Works in any environment, including education, healthcare and enterprise applications..

Universal Design
• Open-architecture design works with laptops, netbooks and tablets with displays up to 15.6"
• Country-specific power strip is provided to plugin 20 AC adapters. Unique, flexible design accommodates a variety of brick and plug styles for laptops, netbooks and tablets that won't fit in standard outlet strips

Management Capability
• Accommodates IT hardware such as a WAP and standard 1U Ethernet switch (WAP and Ethernet switch not included)
• 20 pre-installed CAT 6 RJ45 Ethernet cables (1 GB) enable remote management of laptops for software updates via wake-on-LAN (with customer supplied Ethernet Switch)
• External RJ45 Ethernet cable: 14' feet (4.3 m)
• Secure top-access compartment provides space, mounting brackets for customer-provided 19" (48.3 cm) 1U standard rack-mounted Ethernet switch and Wireless Access Point (WAP): inside dimensions between brackets: 17.72" (45 cm); bracket hole to hole dimension: 18.31" (46.5 cm)
• Includes country-specific internal auxiliary outlet for switch and WAP power (max current 100-120V approx. 50/60Hz, 4A or 220-240 approx. 50/60Hz, 2.5A)

Durable, Secure Storage

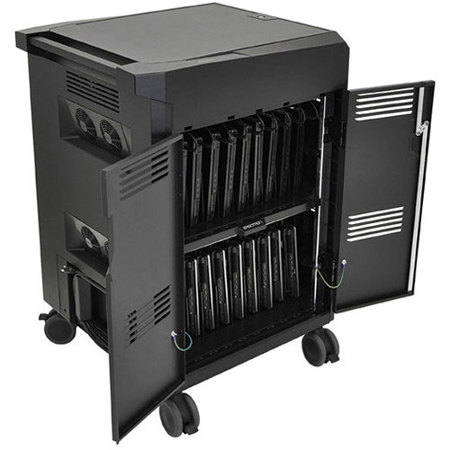

• Robust key and lock assembly keeps devices secure. Double-hinged, locking steel front doors with recessed handle open 180deg. to reveal notebook storage shelves
• For user and equipment safety, the ENTIRE cart is tested and certified to UL 60950 and 1668 standards; this means it is completely certified, at the levels of both the power system and cart mechanics
• Secure top access compartment provides space for customer-provided 19" (48 cm) 1U rack-mounted Ethernet switch and WAP equipment
• Secure back compartment provides IT access to power brick storage and power strips. Clean, neat cable management runs power and Ethernet cables to units
• Robust two-point key and lock assembly keeps devices secure. Double-hinged, locking steel front doors open 180deg. to reveal storage shelves
• Rugged steel-frame construction, steel front and rear doors and molded fire-rated ABS exterior withstands heavy-use classroom settings
• Separate top and back storage compartments provide IT access to power brick storage
• Four 4" (10 cm) locking medical-grade, dual-wheel casters

Easy to Use
• Lightweight, up to 49% smaller than competitive product, this compact cart design makes it easy to safely move from room to room
• Ships fully assembled
• Four 4" (10 cm) medical-grade, dual-wheel locking casters allow easy push/pull mobility

PowerShuttle Technology
• Efficiently scans the system and distributes power to optimize total charge time for the laptops and prevent overloading electrical circuits at the same time
• Efficient charging system uses Ergotron's innovative PowerShuttle Technology (patent pending) to automatically optimize total charge time for up 20 laptops or mobile devices
• Cart is powered using one country-specific power cord (12', 3.8 m) plugged into a wall outlet. Cord wrap is recessed into side of cart
• Never waste time charging an empty set of slots
• Safely prevents overloading electrical circuits by efficiently grouping the number of devices that are charged at one time
• External auxiliary outlet included (2 receptacles for North American/Japan, 1 for all other countries). Power is continuous to these outlets when in use
• LED status indicators provide users with zone charging status

How it works: When the cart is plugged in, the system automatically measures and stores the current draw of the switch, the WAP, anything plugged into the external outlet and finally the power strips inside the cart (5 devices per power strip). Max wall current is 12A for 100-120V countries and 8A for 220-240V countries. The PowerShuttle subtracts the current for the always-on devices (auxiliary outlets) from the max wall current. This leaves the amount of current available for the power strips. PowerShuttle then groups the power strips in the minimum number of groups for charging without exceeding the max wall current

Compact Size
Lightweight; up to 49% smaller than competitive product, this compact cart design makes it easy to safely move from room to room

Certification
• UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950; UL 1678 Household, Commercial and Institutional-Use Carts, Stands and Entertainment Centers for Use with Audio and/or Video Equipment
• ICES-003 Issue 4, Class A
• FCC Part 15 Class A
• Country-specific certification as required
• RoHS and Reach compliant material used

Clean Cable Management
• Unique cable management channels inside the storage area keep laptop power cords and Ethernet cables neatly stowed
• Cables route from laptop compartment to separate back power brick storage compartment. Velcro strips hold power bricks neatly on their individual storage shelf

All the Details Covered
• Cart ships fully assembled with the exception of the top shelf dividers. Dividers are added after device power cables are installed
• Includes country-specific external auxiliary outlet for other peripheral devices (max current 100-120V approx. 50/60Hz, 8A or 220-240 approx. 50/60Hz, 5.5A)
• Ventilation: Venting is provided in side panels, the front doors and the rear door of the cart. 5-12V DC continuous operating fans are included to keep equipment cool, ensuring long-life performance of devices. 4 are located in the laptop compartment, 1 in the top compartment
• Built-in temperature sensor protects your equipment by shutting down charging activity if the maximum internal cart temperature is exceeded. Charging activity will resume automatically once temperature returns to safe level

What's in the box:

  • Ergotron 12A PowerShuttle Laptop Charging Cart for Up to 20 Devices
  • 20x Device Slot
  • 12' Power Cable
  • Power Strip
  • Cable Management Tray
  • 4x 4" Medical-grade Locking Caster
  • 12V DC Continuous Operating Fans
  • Integrated Handle
  • Ergotron 5 Year Warranty
  • Ergotron 2 Year for Power Module and 1 Year for Other Electrical Components Warranty
