Elite Screens GolfSim Bay Series ImpactWhite 1145 Projection Screen with Frame 10x10'

SKU: ESGB10XIPW45 MFR: GSB10X10-IPW1145
Earn VIP Reward Points

Key Features

  • Enjoy immersive simulations with this 10x10' ImpactWhite projector screen, perfect for golf and more!
  • The durable, multilayer ImpactWhite 1145 screen material withstands golf ball speeds up to 200 mph.
  • Achieve accurate color reproduction with this ISF-certified projector screen, enhancing your viewing.
  • Set up with ease using the included frame enclosure and mounting hardware for your projection screen.
  • Experience a wide 180-degree viewing angle on this large format screen; great for group entertainment.
  • Optimize your setup with an ultra-short or short-throw projector to avoid shadows on the screen.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$179.99

4 Year

$199.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Elite Screens GolfSim Bay Series ImpactWhite 1145 Projection Screen with Frame Specifications

  • Available Sizes

    10x10', 10x13'

  • Screen Material

    ImpactWhite 1145

  • Composition

    100% Polyester (Heavy-duty multilayer fabric)

  • Number of layers

    3

  • Thickness

    0.18" (4.5 mm)

  • Portable Design

    No

  • Frame Type

    Metal Frame Tubes

  • Golf ball Impact rebound distance

    1.8' (0.5m)

  • Withstands Golf ball Speeds

    Up to 200 mph

  • Projection Type

    Front

  • Recommended projector

    Ultra-Short or Short-Throw (to avoid casting shadows)

  • Gain

    0.8

  • Viewing Angle

    180 Degree

  • ISF Certified

    Yes (for Accurate Color Reproduction)

  • Dimensions

    Overall (L x H x W):
    10x10: 120.7 x 116.9 x 49.2" (3065 x 2970 x 1250mm)
    13x10: 160 x 116.9 x 49.2" (4065 x 2970 x 1250mm)

    Viewable (W x H):
    10x10: 112.6 x 113.4" (2860 x 2880mm)
    13x10: 152 x 113.4" (3860 x 2880mm)

  • Weight

    10x10: 110 lbs (50kg)
    13x10: 121 lbs (55kg)

  • UPC Code

    848448028879

About Elite Screens GolfSim Bay Series ImpactWhite 1145 Projection Screen with Frame

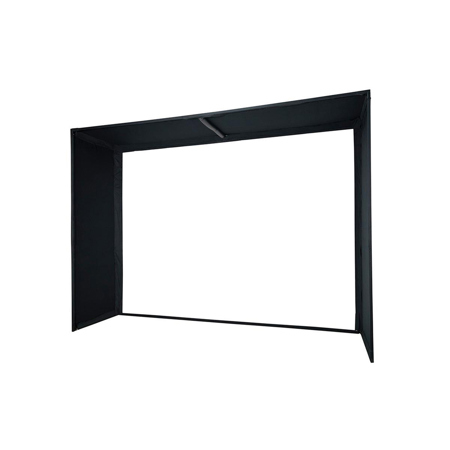

The GolfSim Bay is a premiere golf simulator enclosure designed for high-end commercial and professional golf simulator installations. It includes everything you need to build the enclosure out of the box eliminating the hassle of purchasing additional components. The GolfSim Bay includes the impact screen, ball bungees, all metal frame tube pipes, corner fittings, and enclosure cover panels.

ImpactWhite 1145 Golf Impact Projection Material
• Commercial-grade warp knitted fabric resists indentations from golf impact and withstands golf ball speeds up to 200 mph
• 4.5 mm thick fabric is comprised of three-layers for maximum performance in shock absorption and endurance
• Internal spacer suppressed and dampens the noise generated when golf ball impacts screen

Full Golf Simulator Enclosure
• Complete set included for building golf simulator out of the box
• Includes black cover enclosures for sides and top, ball bungees, all metal frame tube pipes, and corner fittings
• Easy installation without the hassle of acquiring your own EMT framing

High-Quality Image Presentations
• Wide viewing angle allows viewers to see a clear, bright, and uniform picture from any angle
• Black backing also included to go behind impact screen material to eliminate light reflection and light loss
• ImpactWhite 1145 front projection material provides superior contrast in a controlled light room environment
• ISF Certified for accurate color reproduction

Design & Installation
• Commercial grade heavy-duty metal tube frame construction including all corner fittings
• Includes black enclosure cover panels for top and sides
• Black backing is also included to eliminate light loss and back reflection - Provides superior contrast and prevents picture degradation
• Impact screen has metal ring grommets and attaches to frame using ball bungees to provide a flat and taut surface
• Easy installation without the hassle of acquiring your own EMT framing

Elite Screens GolfSim Bay Series ImpactWhite 1145 Projection Screen with Frame Features

  • ImpactWhite 1145 golf impact front projection screen material
  • 0.8 gain with wide diffusion uniformity allows viewers to see a clear bright uniform picture from any angle
  • Resists indentations from golf impact and withstands ball speeds up to 200 mph
  • 4.5 mm warp knitted fabric is comprised of three-layers for maximum performance in image quality, shock absorption and endurance
  • Internal space suppresses and dampens the noise generated when golf ball impacts screen
  • High-strength warp knitted fabric absorbs impact reducing ball bounce back
  • ISF Certified for accurate color reproduction - An industry standard for high-fidelity video display systems

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enjoy immersive simulations with this 10x10' ImpactWhite projector screen, perfect for golf and more!
  • The durable, multilayer ImpactWhite 1145 screen material withstands golf ball speeds up to 200 mph.
  • Achieve accurate color reproduction with this ISF-certified projector screen, enhancing your viewing.
  • Set up with ease using the included frame enclosure and mounting hardware for your projection screen.
  • Experience a wide 180-degree viewing angle on this large format screen; great for group entertainment.
  • Optimize your setup with an ultra-short or short-throw projector to avoid shadows on the screen.

What's in the box:

  • Elite Screens GolfSim Bay Series ImpactWhite 1145 Projection Screen
  • Frame Enclosure
  • Mounting Hardware
  • Elite Screens 2 Year Limited Warranty
