Elite Screens Home2 Series Specifications

  • Diagonal Size

    90"

  • Aspect Ratio

    16:9

  • View Area (HxW)

    44.1x78.4"

  • Screen Material

    MaxWhite Fiberglass

  • Gain

    1.1

  • Screen Width

    81.4" (206.76cm)

  • Weight Bar Length

    83.9" (213.11cm)

  • Overall Height With Bracket

    56.4" (143.26cm)

  • Screen Height

    50.7" (128.78cm)

  • Overall Height

    54.5" (138.43cm)

  • Top Black Border

    4" (10.16cm)

  • Viewing Angle

    180 deg. wide viewing angle

  • Tension Control

    Non-Tensioned

  • Format

    HDTV

  • Masking Options

    Top/Bottom/Side Black Masking

  • Control Voltage

    110V, 60Hz

  • Integrated Control

    Standard Infrared (IR) (Range 15', Operates on AAA batteries)
    Standard Radio Frequency (RF) remote operates
    Low Voltage 3-way wall switch for in-line control and extended IR "eye" sensor for in-ceiling IR operation (Range 30', Operates on AAA batteries)
    Built-in 5-12 volt trigger synchronizes screen drop/rise with projectors power cycle

  • Control Options

    Universal learning remote
    Wireless 12V/5V trigger kits
    In-wall RF wall switch

  • Case Material

    Aluminum housing with enamel coating

  • Dimensions (LxHxW)

    Case: 87.9 x 3.8 x 3.7" (223.27 x 9.65 x 9.40cm)

  • Weight

    25.4 lbs (11.52kg)

  • UPC Code

    876818007155

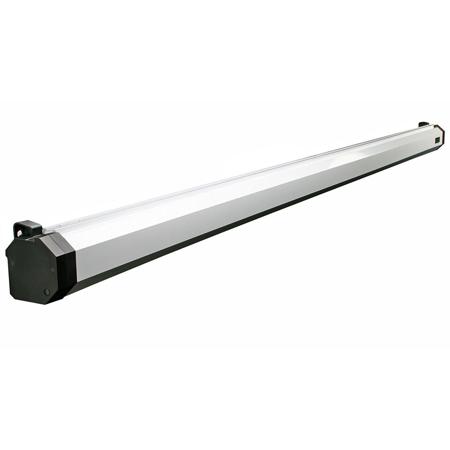

About Elite Screens Home2 Series

The Home 2 premium grade electric projector screen has been acclaimed by our customers as an excellent example of a high end product that uses Elite's GREENGUARD certified MaxWhite FG fiberglass-backed multi layer screen material. In addition to its fast-acting tubular motor, this product comes with IR/RF remote controls, wall control unit with IR receiver and low-profile extended IR "Eye" receiver, 12V-Trigger port with attachment, simplified direct power connection, as well as floating wall brackets for a perfectly centered image.

Screen Material
• MaxWhite FG backed material provides uniform flatness on a flat projected image
• 180 deg. wide viewing angle
• 4K/8K Ultra HD, Active 3D and HDR Ready
• Not compatible with Ultra/Short-throw Projectors
• Standard 4-side black masking borders

Design and Installation
• Floating installation brackets provide easy alignment with wood studs to accommodate a wall or ceiling installation
• Aluminum housing with enamel coating is moisture resistant
• Shipped ready to plug & play with installation kit containing brackets, screws and bubble leveler included

Control System
• Standard Infrared (IR) and Optional ZR800D IR Universal Learning Remote system
• Standard Radio Frequency (RF) remote control operates screen from 100 feet away
• Low-voltage detachable 3-way wall switch for in-line control
• Extended IR "eye" sensor for in-ceiling Infrared operation
• Built-in 5-12 volt trigger port (RJ-45) enables Drop/Rise operation to synchronize with the projector's power cycle

Quality and Reliability
• Tubular motor allows swift operation with a superior weight tolerance and operational lifespan
• Certified by AMX and CRESTRON
• Conforms to ANSI/UL STD. 60950-1
• Certified to CAN/CSA STD. C22.2
• Flame Retardant: Complies with NFPA 701 Standards
• GREENGUARD and GREENGUARD Gold Certified | UL 2818

Elite Screens Home2 Series Features

  • 90-inch Diagonal, 16:9 Aspect Ratio. View Size: 44.1" H x 78.4" W. Overall Size: 56.4" H x 87.9" W x 4.1" D. White Case.
  • Screen Material: MaxWhite FG, 1.1 Gain. Fiberglass-backed, 180 degree wide viewing angle, fully black backed front projection screen with textured surface. 4K Ultra HD and Active 3D Projection Ready. GreenGuard and GreenGuard GOLD Certified. Mildew resistant and easy to clean with mild soap and water.
  • Aluminum housing with enamel coating is moisture resistant and made for wall & ceiling installations
  • Standard infrared (IR) & radio frequency (RF) remote controls and a Interchangeable 3-way wall switch or extended IR "Eye" sensor provides a choice of either an attached wall control box or streamlined casing included Built-in 12-volt trigger synchronizes screen drop/rise with projectors power cycle
  • 2-Year / 3-Year ENR-G, Manufactures Warranty by Elite Screens' an ISO9001 manufacturer since 2004 and Lifetime Tech Support by Email, Web Chat or Toll Free Phone Call by Elite's Professional Service Team.

Key Features

  • Electric Wall/Ceiling Mount

What's in the box:

  • IR Remote
  • RF Remote
  • 3 Way Wall Switch
  • 12 V Trigger
  • IR Extended "Eye " Receiver
  • Bubble Level
