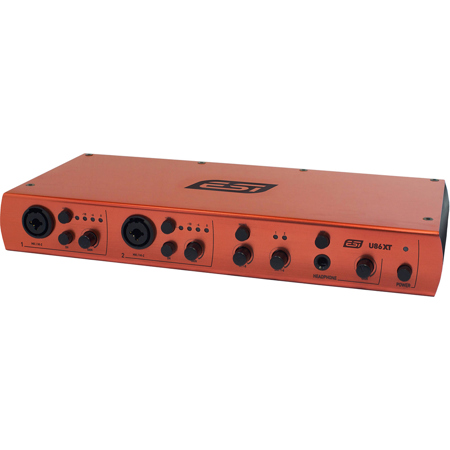

ESI U168 XT 8x6 24-Bit USB Audio Interface
SKU: ESIU86XT MFR: U86XT
Earn VIP Reward PointsKey Features
- Record pristine audio with this 24-bit USB audio interface, perfect for studio recordings.
- Experience low latency performance, ideal for real-time monitoring and seamless audio production.
- Connect all your gear with 8 inputs & 6 outputs, offering versatile connectivity for any setup.
- Enjoy high-fidelity sound with A/D converters at 107 dBA and D/A converters at 112 dBA.
- Easily integrate MIDI devices via 5-Pin DIN, expanding your creative possibilities with this interface.
- Produce music right away with included Bitwig 8-Track DAW, a complete audio solution.
Special Order?Estimated to Ship: 09/09/2025
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$39.99
2 Year
$69.99
3 Year
$79.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About ESI U168 XT
Enhance your audio recording and playback experience with the U168 XT 8x6 24-Bit USB Audio Interface. This high-quality, professional-grade audio interface is designed to bring USB audio technology to new heights, offering superior performance for optimal results.
The U168 XT is a compact yet versatile USB 2.0 Hi-Speed audio interface compatible with both Mac and PC. It features a total of 8 input channels and 6 output channels, all of which are available for simultaneous use. This durable audio interface is equipped with a 24-bit / 96kHz solution, providing balanced 1/4" TRS line connectors.
For added versatility, it includes two integrated microphone preamps with XLR inputs on the front of the unit, switchable +48V phantom power, and two Hi-Z instrument inputs for electric guitars. Additionally, it offers coaxial digital S/PDIF input and outputs.
The U168 XT also boasts an integrated professional headphone amplifier with an output on the front, alongside an integrated monitoring mixer. External keyboards, synthesizers, and sound modules can be connected via the MIDI inputs and outputs on the backside of the unit.
This audio interface is powered by fast, high-performance, low-latency drivers based on ESI's EWDM and DirectWIRE technology. It supports the latest WDM, ASIO 2.0, and CoreAudio technology for both Mac and PC, making it compatible with all current standard audio applications for professional use.
The U168 XT comes bundled with a powerful software package for professional recording, song creation, audio content mixing, and more. This includes Bitwig Studio 8-Track for producing, performing, and designing sounds, and inTone 2 ESI Edition by Audified for producing mixes of multiple audio signals and instruments, playing files, changing tracks, preparing streams for podcasts and recordings.
Experience the next level of USB audio for professional applications with the U168 XT 8x6 24-Bit USB Audio Interface.
ESI U168 XT Features
- 8 input / 6 output 24-bit / 96kHz USB 2.0 Hi-Speed 24-bit Audio Interface
- 2 professional microphone preamps with +48V phantom power support
- 2 Hi-Z high performance instrument inputs with 1/4" connector
- Digital S/PDIF input with RCA connector
- Digital S/PDIF output with RCA connector
- Supports up to 24-bit / 96kHz
- 8 line inputs with balanced 1/4" TRS connectors
- 6 line outputs with balanced 1/4" TRS connectors
- Professional headphone output with 1/4" stereo phone connector
- Separate stereo mix output with integrated monitoring mixer controlled on front panel
- ADC with 107dB(a) dynamic range
- DAC with 112dB(a) dynamic range
- 16 channel MIDI I/O with one MIDI input and one MIDI output
- Powered by included DC power supply
- Supports Windows Vista, Windows 7, Windows 8.1, Windows 10 and Windows 11 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
- Supports Mac OS X (10.7 and above) via CoreAudio USB audio driver
- Includes Bitwig Studio 8-Track digital audio workstation software
- Includes license of inTone 2 ESI Edition from Audified
