Elite Screens Manual Tab-Tension Specifications

  • Material

    CineWhite

  • Diagonal Size

    100" (254cm)

  • Aspect Ratio

    16:9

  • Mount Type

    Wall

  • Gain

    1.1

  • Viewing Angle

    180 Degree (90 Degree +/- LR)

  • Front/Rear Projection

    Front

  • Case Color

    White

  • Dimensions (H x W)

    49 x 87.2" (124.4 x 221.4cm) (View area)

  • Weight

    44.30 lbs (20kg)

  • UPC Code

    848448019433

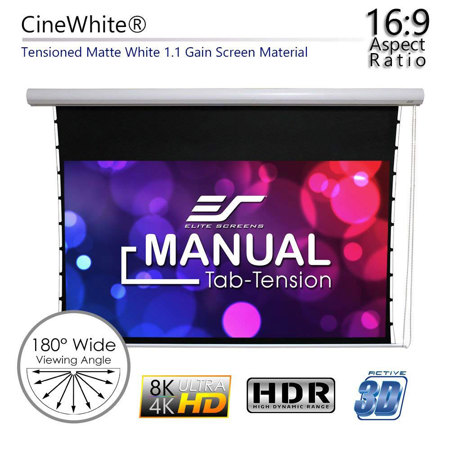

About Elite Screens Manual Tab-Tension

Elite Screens presents the Manual Tab-Tension Series, as its premium grade non-electric large venue projector screen. The design features a manually operated bead chain clutch mechanism with a swift rolling sprocket that allows the material to stop at any point of its drop/rise operation. The tab-tension system allows the projection surface to be flat and taut so that ultra/short throw projectors may be used with this screen as well.

The housing is of a sturdy white enameled aluminum construction. It is moisture resistant and available in a white finish. It includes flush sliding wall brackets that align with wall studs while allowing the installation to be perfectly centered.

Design and Installation
• Flush wall installation design with horizontal sliding brackets
• Moisture resistant aluminium casing with white finish and stylish arcuate profile
• Bead chain clutch system allows screen to roll up/down and stop at any point
• Up/down rolling sprocket mechanism permits full range of vertical adjustment settings
• Nylon bead chain features a cord retainer to prohibit over extension

CineWhite
CineWhite (Tension Matte White) has broad light dispersion through diffusion uniformity, black & white contrast and true color rendition making it the most versatile in Elite Screens' tension screen product lines. This tension PVC surface is the best choice for today's high-contrast ratio projectors in commercial or residential presentations. The CineWhite material equals the performance to our MaxWhite product, but improves the experience with the superior surface flatness. Uniform diffusion surface has black-backing to eliminate light penetration and is easily washable with mild soap and water.

Screen Material
• Multi-layer PVC (Polyvinyl chloride) with texture and surface coating
• View Angle: 180 Degree (90 Degree +/-LR)
• Full Lambertian Diffuser- no half gain drop
• Produces exceptional picture quality for any presentation
• Mildew Resistant
• Active 3D, 4K Ultra HD, and HDR ready
• Surface can be cleaned with (water) moist cotton cloth
• CineWhite 1.1 Gain (tensioned matte white) front projection surface
• Wide diffusion uniformity allows viewers to enjoy a clear bright picture from any angle
• Standard black masking borders absorb projector overshoot while enhancing perceived visual contrast
• Black backing eliminates light penetration for superior brightness and color reproduction

Elite Screens Manual Tab-Tension Features

  • 100-inch Diagonal, 16:9 Aspect Ratio. View Size: 49.0" H x 87.2" W. Overall Size: 62.3" H x 104.8" W x 4.6" D. White Case.
  • Screen Material: CineWhite, 1.1 Gain. 4K Ultra HD and Active 3D Projection Ready. Features 160 degree viewing angle with fully black backed front projection screen material. Mildew resistant, and easy to clean with soap and water. Compatible with Standard, Short Throw, UHD/HD projectors.
  • CHAIN CLUTCH SYSTEM - allows screen to roll up/down and stop at any point. Nylon bead chain is durable for daily use. Sliding brackets included for flush wall/ceiling installation
  • Works with Standard, Ultra/Short-throw 1080P /4K / 8K Projectors.
  • 2-Year / 3-Year ENR-G, Manufactures Warranty by Elite Screens' an ISO9001 manufacturer since 2004 and Lifetime Tech Support by Email, Web Chat or Toll Free Phone Call by Elite's Professional Service Team.

Key Features

  • Tab Tension

What's in the box:

  • Manual Tab-Tension Series CineWhite 100 " 16:9 4K Ultra HD Wall Mount Manual Projector Screen (White)
  • Mounting Hardware
  • Elite Screens 2 Year Limited Warranty
